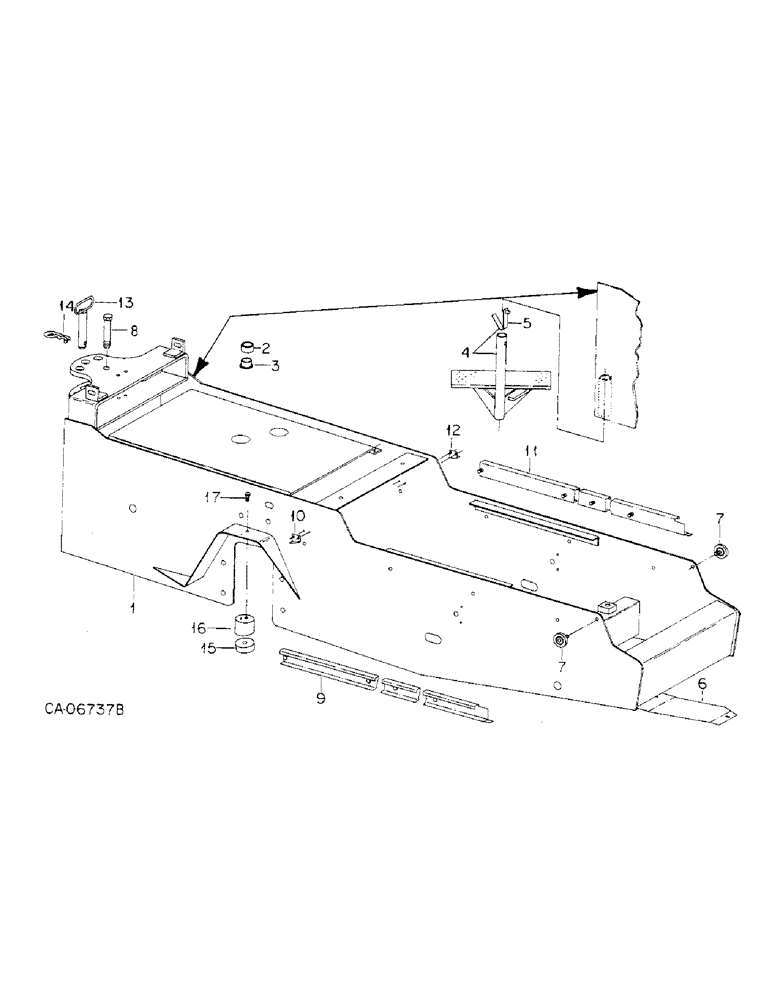

Запчасти Case IH 6388 (09-01) - FRAME, FRONT FRAME (12) - FRAME

1

147023C94

FRAME ASSY, front w/product graphic, Includes ref. nos. 2 & 3

1шт.

124506C1

DECAL

PRODUCT GRAPHIC

2шт.

819809C2

DECAL

PRODUCT GRAPHIC

1шт.

2

146905C1

BUSHING,44.53mm ID x 59mm OD x 30.5mm L

steering lower

2шт.

3

133000C1

BUSHING,35mm ID x 47.5mm OD x 30mm L

steering upper

2шт.

4

134992C2

STEP

ASSY

1шт.

1271004C1

STUD

ASSY, step

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

142225C2

SHIELD

ASSY, wind diverter

1шт.

NLS

NO LONGER SERVICED

3шт.

102635

NUT,3/8"-16, G5

3шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

3шт.

7

141832C4

ROLLER

track

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

8

26041R1

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

frame pivot 1 x 8-1/2 type 8

2шт.

25847R1

WASHER

1.062 x 2.000 x .209 hdn

6шт.

25531R1

NUT,1"-8, G8

1 phc type 8

2шт.

9

1269136C1

CHANNEL

ASSY, frame track RH

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

10

138789C2

STOP

SUPPORT, frame rear side (Stop)

1шт.

131563

RIGID TUBE,Crown, 3/8"-24

3/8 pln hi-crown stl

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

11

1269135C1

CHANNEL

ASSY, frame track LH

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

12

138787C2

STOP

SUPPORT, frame rear side (Stop)

1шт.

102635

NUT,3/8"-16, G5

2шт.

NLS

NO LONGER SERVICED

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

13

134809C1

PIN

ASSY, frame lock

1шт.

14

591107R1

COTTER PIN

lower link

1шт.

15

216293H2

BUMPER

front axle

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

495-21044

WASHER,3/8"

(.438 x 1.000 x .064 pln) 3/8"

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

16

138647C1

SPACER

ASSY, oscillation stop

2шт.

20491R1

DOWEL,1/4" x 5/8"

PIN, 1/4 x .625 pln hdn dowel

2шт.

17

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 znd hex-hd mach

2шт.

495-21044

WASHER,3/8"

(.438 x 1.000 x .064 pln) 3/8"

2шт.

1266425C91

PACKAGE

front frame upper pivot service, Consists of

1шт.

26011R1

BOLT,Hex, 1" - 8 x 9", Gr 8

1 x 9 phc type 8

1шт.

25847R1

WASHER

1.062 x 2.000 x .209 hdn

2шт.

1258473C1

BUSHING

flange

2шт.

25531R1

NUT,1"-8, G8

1 phc type 8

1шт.

TEMPLATE (NSS)

1шт.

INSTRUCTIONS (NSS)

1шт.
