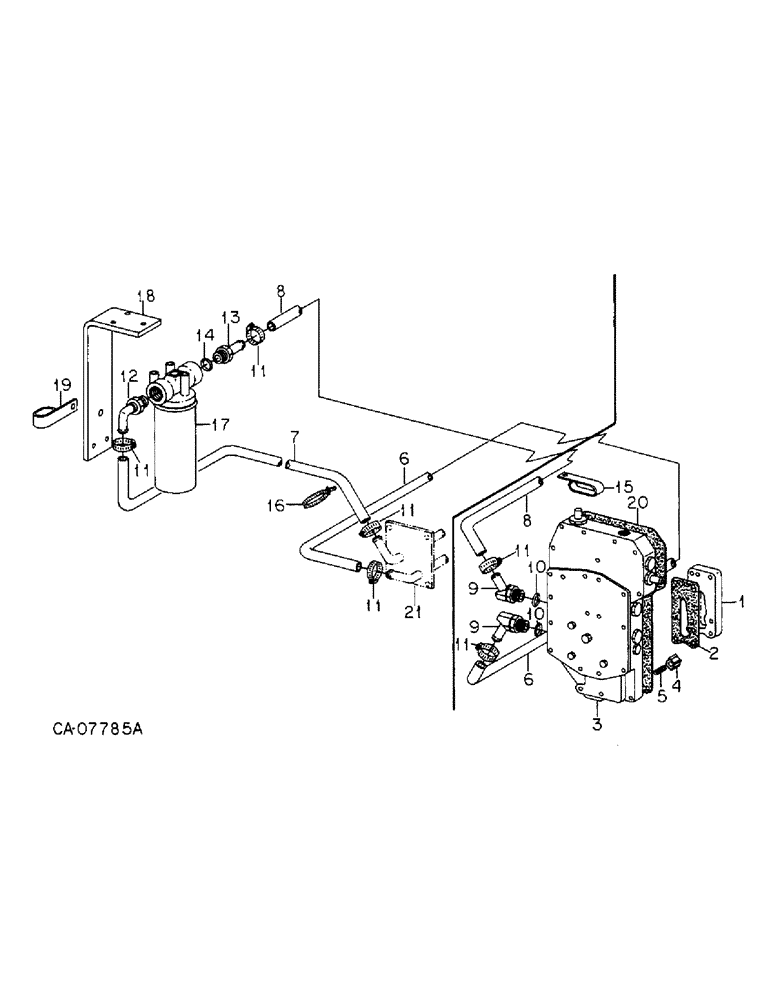

Запчасти Case IH 6388 (10-08) - HYDRAULICS, MUTIPLE CONTROL VALVE AND CONNECTIONS (07) - HYDRAULICS

1

133427C2

BLOCK

MCV jumper

1шт.

2

133428C2

GASKET

MCV jumper block

1шт.

26525R1

BOLT,Hex, 5/16" - 18 x 2 5/8", Gr 8

5/16 x 2-5/8 pln type 8

4шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

bolt sealing

4шт.

3

VALVE ASSY, multiple control, Refer to multiple control valve this group for list of components

1шт.

26525R1

BOLT,Hex, 5/16" - 18 x 2 5/8", Gr 8

5/16 x 2-5/8 pln type 8

10шт.

445625

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

5/16 x 1-3/4 pln type 8

1шт.

454865

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

5/16 x 2-1/4 pln type 8

8шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

5/16 x 1-3/8 pln type 8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

354057R2

VALVE

power steering return check

1шт.

5

382334R1

SPRING

power steering return check valve

1шт.

6

HOSE, MCV to heat exchanger, Use 25 in. from bulk roll marked 146785C1

1шт.

7

HOSE, heat exchanger to filter, Use 35 in. from bulk roll marked 73199C1

1шт.

8

HOSE, filter to MCV, Use 44 in. from bulk roll marked 146785C1

1шт.

9

104776C3

ELBOW

MCV

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 tube

2шт.

11

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP

6шт.

12

133824C1

ELBOW

spin filter

1шт.

13

134958C1

ADAPTER

CONNECTOR, hose to spin filter

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

2шт.

15

104773C3

CLAMP

CLIP, clutch housing mtg

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 pln type 5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

1шт.

16

289862C1

CABLE TIE,3/16" x 7"

STRAP, heat exchanger hose tie-wrap

1шт.

17

137938C91

HYDRAULIC OIL FILTER

FILTER ASSY, spin-on

1шт.

1272942C1

FILTER, ELEMENT

ELEMENT, spin on filter, Replaces 137939C1

1шт.

18

134803C3

BRACKET

filter

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

19

662362C1

CLAMP

CLIP, filter bracket hose

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

20

382335R3

GASKET

HEAT EXCHANGER, Refer to transfer case group 7

1шт.
