Запчасти Case IH 6388 (08-21) - ELECTRICAL, WINDSHIELD WIPER MOTOR (06) - ELECTRICAL

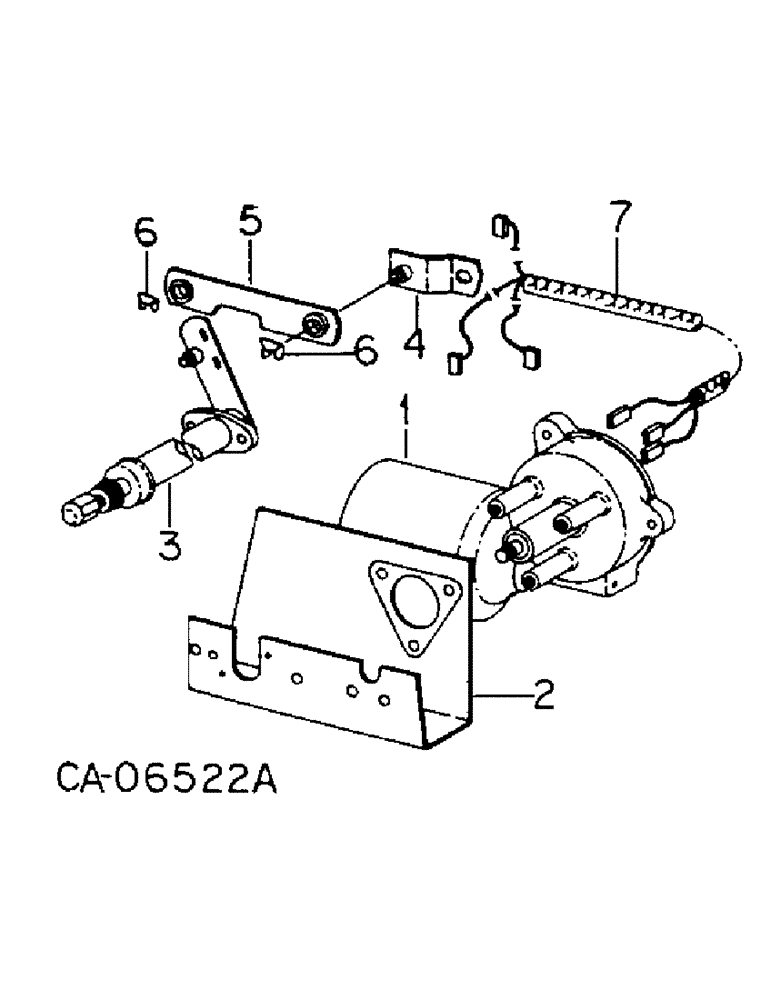

Схема запчастей Case IH 6388 - (08-21) - ELECTRICAL, WINDSHIELD WIPER MOTOR (06) - ELECTRICAL
3
7
5
6
4
1
2
6

Артикул

Название

Примечание

Количество

MOTOR ASSY, windshield wiper, Consists of ref. no. 1 thru 6

1шт.

1

1267548C91

WIPER MOTOR

MOTOR, windshield wiper, Replaces 143417C1

1шт.

148074R1

WASHER

2шт.

2

NOT USED IN THIS APPLICATON

1шт.

3

SHAFT ADN PIVOT ASSY

1шт.

Not serviced separately, furnish kit 1267542C91.

1шт.

1267556C1

BUTTON

NUT, knurled driver, Replaces 3016057R1

1шт.

4

ARM ASSY, drive

1шт.

Not serviced separately, furnish kit 1267542C91.

1шт.

5

LINK ASSY, connecting

1шт.

Not serviced separately, furnish kit 1267542C91.

1шт.

6

739487C1

CLIP

spring

2шт.

7

143340C1

HARNESS

ASSY, windshield wiper

1шт.

1267542C91

PACKAGE

KIT, wiper service linkage, Consists of ref. nos. 3 thru 6

1шт.

Выбрано товаров: 14
