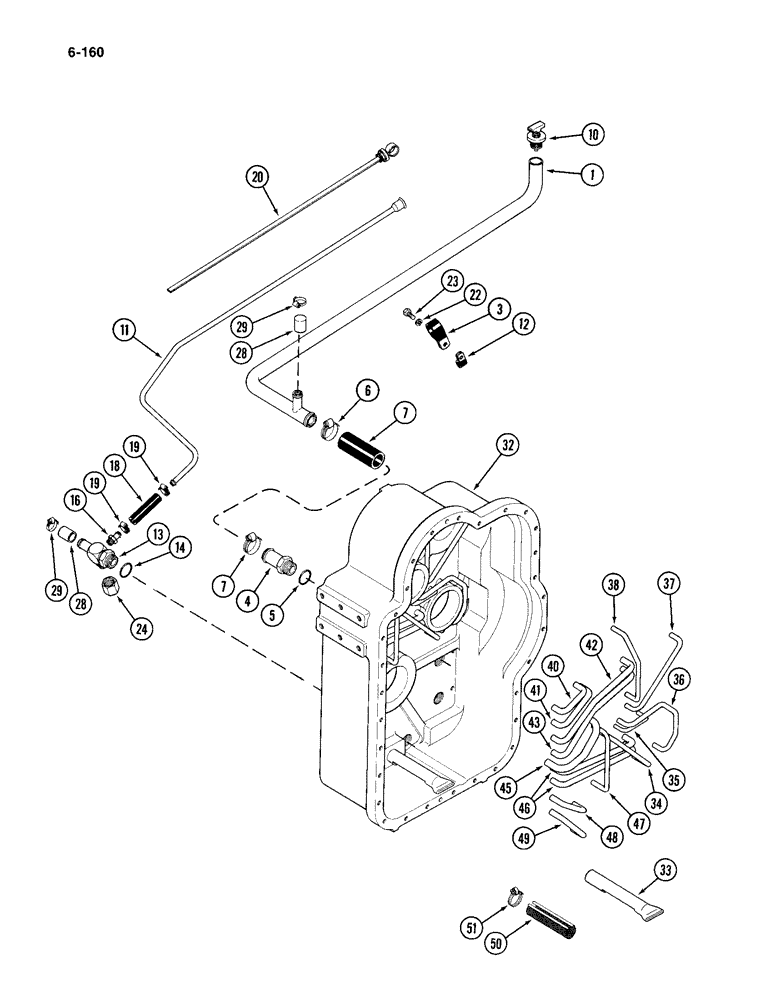

Запчасти Case IH 4994 (6-160) - TRANSMISSION DIPSTICK AND FILLER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - tractor (See Figure 6-162)

1шт.

1

A158682

TUBE

- filler, transmission

1шт.

3

D30474

CLAMP

- tube

3шт.

4

217-176

FITTING,1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

CONNECTOR ASSEMBLY - hose, 1-1/2 inch barb end x 1-1/4 tube 1-4/8-12 inch thread, Includes: Ref. 5

1шт.

5

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 7/64 inch (37 x 44 x 3 mm)

1шт.

6

A158681

HOSE - filler tube (Order S118577 and, Serial Range: cut-length)

1шт.

S118577

HOSE,1.50" ID x 60.00", SAE J30R2 Type 3

- Bulk 1.50" ID x 60.00", SAE J30R2 Type 3

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

10

A180978

FILLER CAP

CAP - breather (Replaces A27973)

1шт.

11

A158223

TUBE

- diptick

1шт.

12

49838

CLAMP

- tube

3шт.

13

A157879

TEE

ASSEMBLY - hydraulic, special, Includes: Ref. 14

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 7/64 inch (37 x 44 x 3 mm)

1шт.

16

220-4

FITTING

- 1/2 barb end x 3/8 inch PT

1шт.

18

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Dipstick Tube to Fitting 12.7 mm ID x 101.60 mm, SAE 100R3

1шт.

19

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch

2шт.

20

A158230

DIPSTICK

- vented, transmission fluid

1шт.

22

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

3шт.

23

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

24

218-758

CAP,37 Degree, 1 5/16"-12

NUT - cap, 1 tube 1-5/16-12 inch thread

1шт.

28

A167159

CAP

- plug (Used without PTO)

2шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.

32

A49304

HOUSING

ASSEMBLY - rear, Includes: Ref. 33 - 51

1шт.

33

A49315

TUBE

- suction

1шт.

34

A49309

TUBE

- master lube, clutch

1шт.

35

A49310

TUBE - oil

1шт.

36

A49308

TUBE

- lube

1шт.

37

A49318

TUBE - lube

1шт.

38

A49314

TUBE

- lube

1шт.

40

A49319

TUBE - apply, clutch

1шт.

41

A49317

DECAL

TUBE - apply, clutch

1шт.

42

A49307

TUBE - apply, clutch

1шт.

43

A49306

TUBE - apply, clutch

1шт.

45

A49313

TUBE - main

1шт.

46

A49316

TUBE - apply, clutch

2шт.

47

A49305

TUBE

- lube, clutch

1шт.

48

A49311

TUBE - apply, clutch

1шт.

49

A49312

SHIN

TUBE - apply, clutch

1шт.

50

A49302

SCREEN

- suction tube

1шт.

51

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

screen #28, 1.31/2.25 Type F Worm

2шт.
