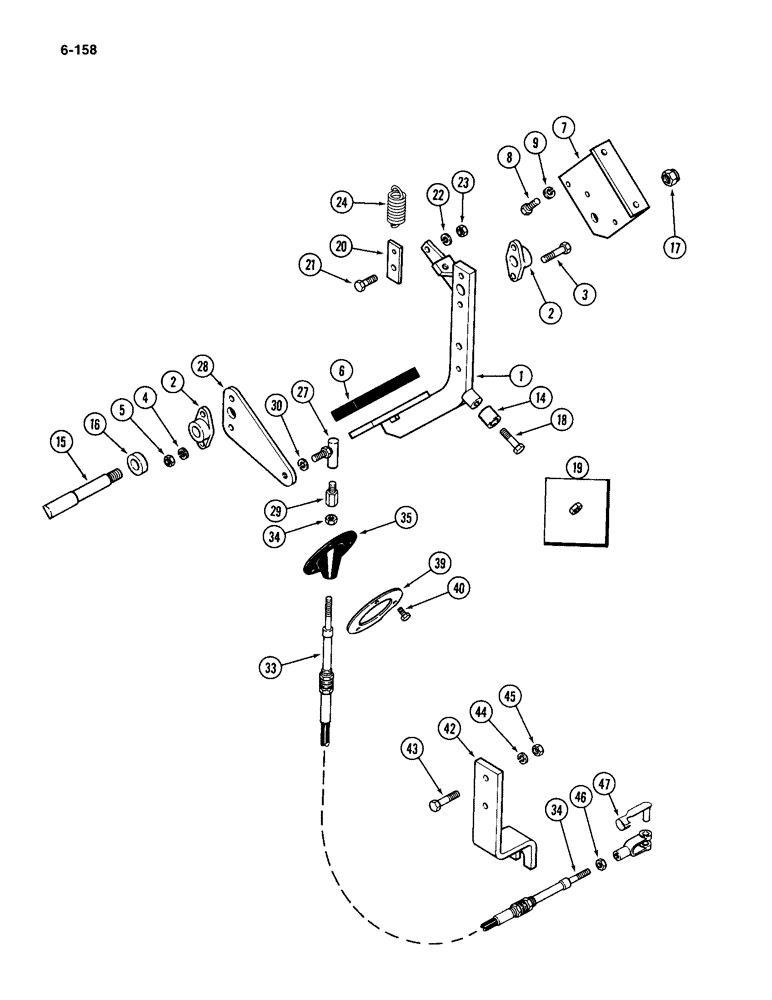

Запчасти Case IH 4994 (6-158) - INCHING PEDAL AND LINKAGE (06) - POWER TRAIN

1

A166485

PEDAL

- inching

1шт.

2

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pedal shaft

2шт.

3

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

F9197

PAD

- foot, pedal

1шт.

7

A176396

SUPPORT ASSY.

BRACKET - pedal shaft

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

A140442

BUSHING

SPACER - stop bolt

1шт.

15

A75359

SHAFT

- inching pedal

1шт.

16

A163846

SPACER

- inching pedal shaft

1шт.

17

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NC

1шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19

87016560

JAM NUT,Jam, 3/8"-16, G5

(If equipped) (Order Ref 14) Jam, 3/8"-16, G5

1шт.

20

A169032

BRACKET

ANCHOR - return spring

1шт.

21

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

24

A160874

SPRING

- pedal return

1шт.

27

D38296

JOINT

BALL JOINT - cable

1шт.

28

A163844

BRACKET

- cable

1шт.

29

A161332

ADAPTER

- cable

1шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

A163845

CABLE

- inching

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

A163870

CABLE

BOOT - inching cable

1шт.

39

A164320

RING

- cable boot

1шт.

40

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - indented hex, 1/4 NC x 1/2 inch

3шт.

42

A177327

PLATE

- anchor, cable

1шт.

43

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

46

A160630

CLEVIS,5/16" - 24

YOKE - cable

1шт.

47

A147652

PIN

- clevis, spring

1шт.
