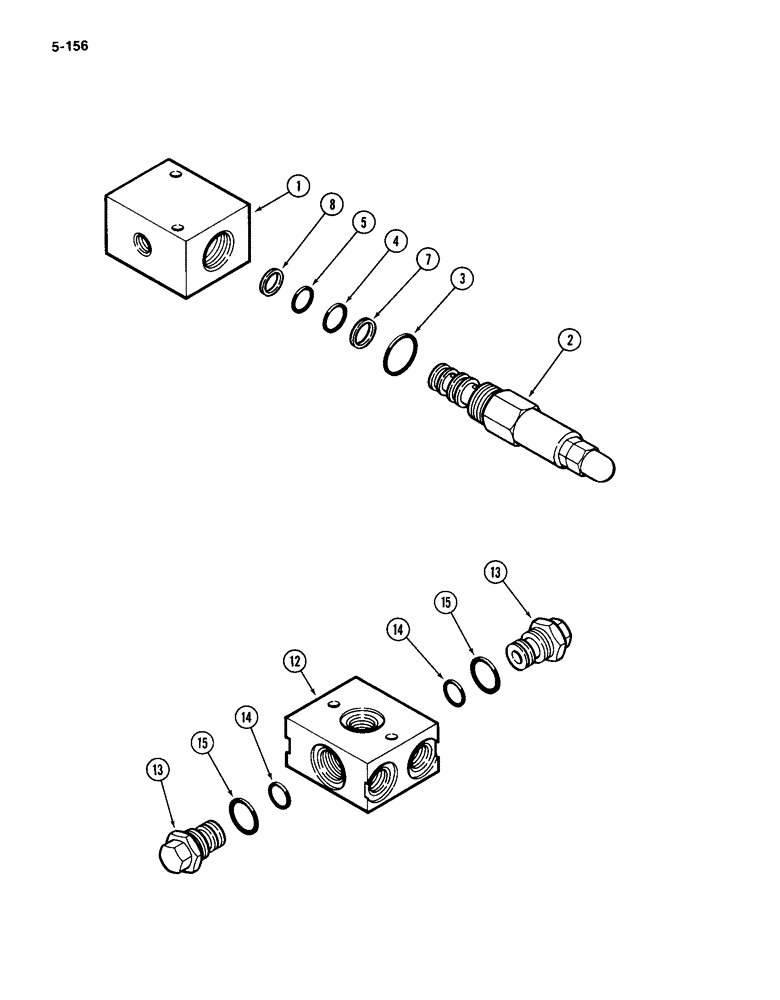

Запчасти Case IH 4994 (5-156) - REAR STEERING PRESSURE REGULATOR VALVE / REAR STEERING DUAL CHECK VALVE (05) - STEERING

A176454

VALVE

ASSEMBLY - pressure regulator, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A176454)

1шт.

2

A52035

CARTRIDGE

ASSEMBLY - valve

1шт.

A48950

KIT

SEAL KIT - valve, Includes: Ref. 3 - 8

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 inch (19 x 24 x 2 mm)

1шт.

4

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- valve

1шт.

5

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- valve

1шт.

7

L30012

RING

- seal, backup

1шт.

8

T40181

RING

- seal, backup

1шт.

A164011

VALVE

ASSEMBLY - dual check, rear steering, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve (Order A164011), rear steering dual check

1шт.

13

A48910

CARTRIDGE

VALVE ASSEMBLY - check, rear steering dual, Includes: Ref. 14 and 15

2шт.

14

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- valve, 1/2 inch (13 mm) ID, rear steering dual check

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm), rear steering dual check valve

1шт.
