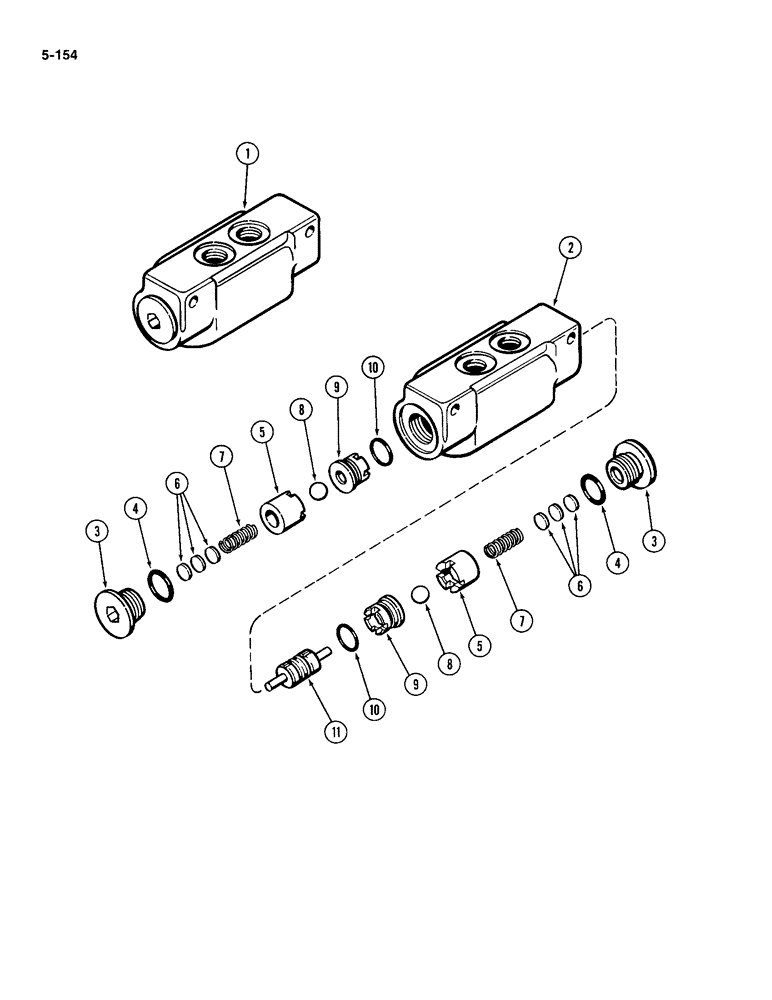

Запчасти Case IH 4994 (5-154) - REAR STEERING CHECK VALVE (05) - STEERING

1

A161709

VALVE

ASSEMBLY - check, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Reference No. A47708)

1шт.

3

A47714

PLUG

- valve end

2шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64 inch (23 x 3 mm)

2шт.

5

A47711

SLEEVE

- valve

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM - valve (Order A47715 Kit) (Reference No. A47713)

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - sleeve (Order A47715 Kit) (Reference No. A47712)

2шт.

8

211-212

BALL

- sleeve spring, 0.437 inch diameter (11 mm)

2шт.

9

NSS

NOT SOLD SEPARAT

SEAT - valve (Order A47715 Kit) (Reference No. A47710)

2шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- seat, 5/8 x 3/32 inch (16 x 2 mm) ID

2шт.

11

A47709

VALVE

SHUTTLE - valve

1шт.

A47715

SEAL

KIT - valve repair (Includes item 4 and 6 - 10)

1шт.
