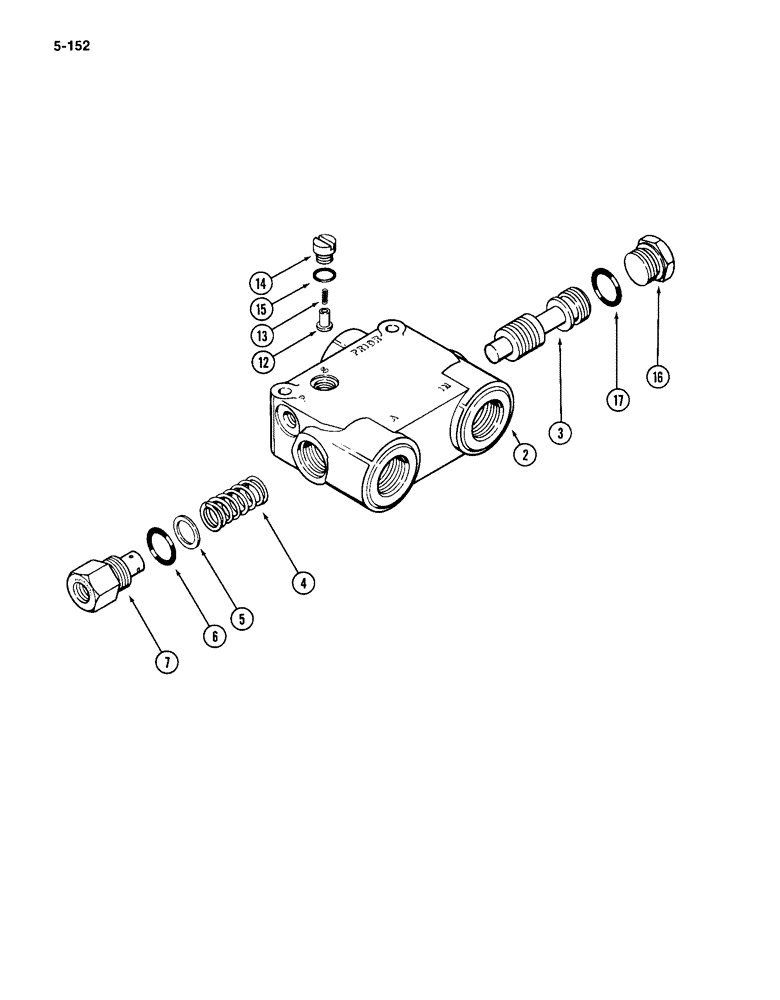

Запчасти Case IH 4994 (5-152) - REAR STEERING PRIORITY VALVE (05) - STEERING

A164016

VALVE

ASSEMBLY - priority, Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A164016)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A164016)

1шт.

4

A47477

SPRING

- spool

1шт.

5

A46928

WASHER

- spring backup, 0.020 inch (0.51 mm)

1шт.

5

A46927

WASHER

- spring backup, 0.010 inch (0.254 mm)

1шт.

5

H746198

WASHER

- spring backup, 0.030 inch (0.76 mm)

1шт.

5

H746131

WASHER

- spring backup, 0.065 inch (1.651 mm)

1шт.

6

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

- valve

1шт.

7

A46926

VALVE

- relief

1шт.

12

F36081

VALVE POPPET

PLUNGER - lift check

1шт.

13

F36082

SPRING

- lift check

1шт.

14

H229203

PLUG

- spring retaining, Includes: Ref. 15

1шт.

15

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- plug

1шт.

16

A47429

PLUG

- hex, valve, Includes: Ref. 17

1шт.

17

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- plug

1шт.
