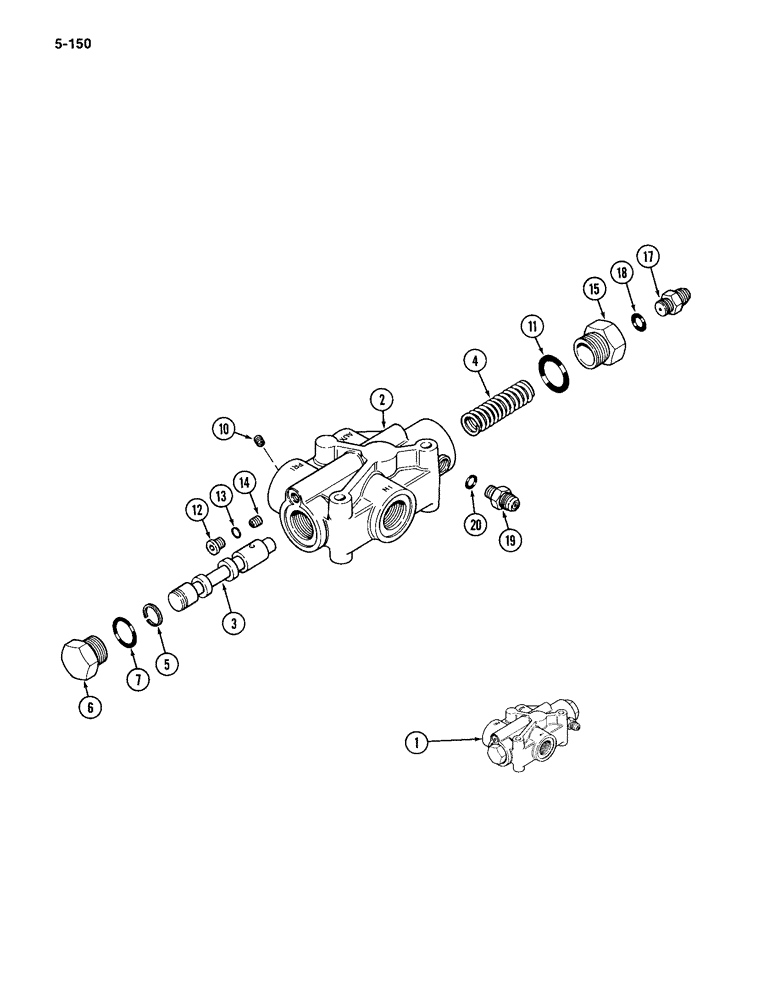

Запчасти Case IH 4994 (5-150) - FRONT STEERING PRIORITY VALVE (05) - STEERING

1

A167687

VALVE

ASSEMBLY - priority, flow control, Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A167687)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A167687)

1шт.

4

A49456

SPRING

- relief

1шт.

5

A49461

RING, SNAP,#75, .698", Ext, Spiral

RING - retaining

1шт.

6

A48695

PLUG

ASSEMBLY - spool, Includes: Ref. 7

1шт.

7

A49458

O-RING,0.924" ID

- spool plug, 59/64 inch ID (23 mm)

1шт.

10

A49421

PLUG

- orifice

1шт.

11

A49457

O-RING,1.046" ID

- valve, 1-3/64 inch ID (27 mm)

1шт.

12

A48699

PLUG

ASSEMBLY - valve, Includes: Ref. 13

1шт.

13

A49459

O-RING,0.351" ID

- valve plug, 19/64 inch ID (8 mm)

1шт.

14

A48698

ORIFICE

- valve

1шт.

15

A48697

PLUG

- valve

1шт.

17

A48696

VALVE, CHECK

VALVE ASSEMBLY - check, Includes: Ref. 18

1шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, check valve

1шт.

19

A49798

VALVE

ASSEMBLY - check, Includes: Ref. 20

1шт.

20

A49459

O-RING,0.351" ID

- valve, 23/64 inch (9 mm) ID

1шт.
