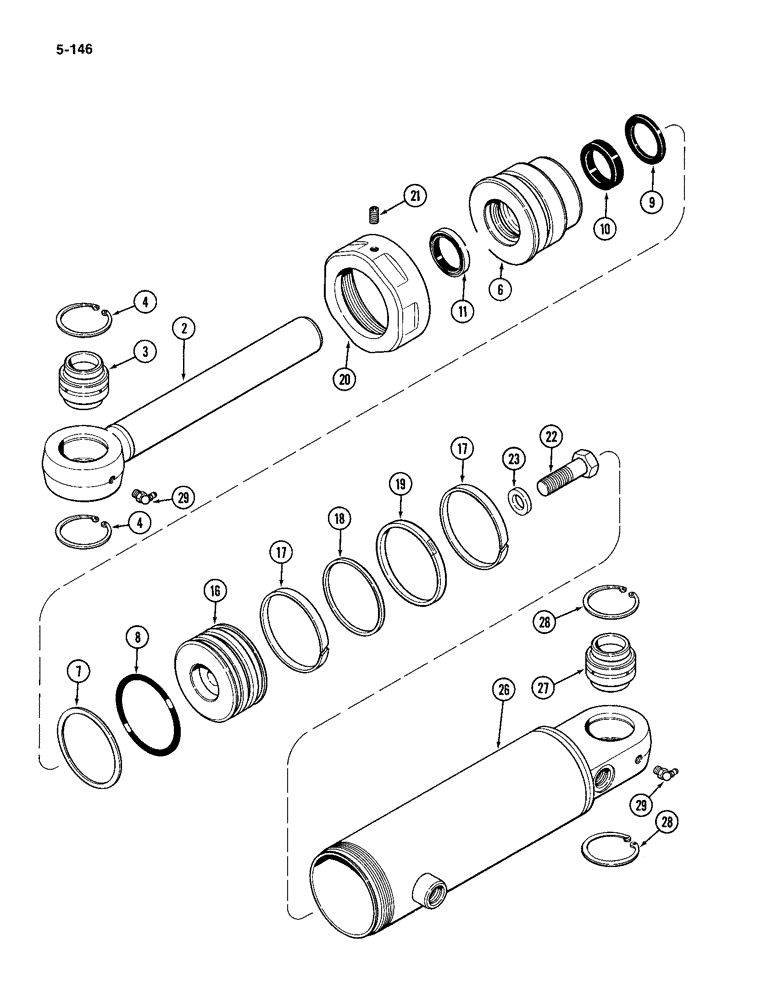

Запчасти Case IH 4994 (5-146) - STEERING CYLINDER, 4 INCH (102 MM) DIAMETER X 7-29/32 INCH (201 MM) STROKE (05) - STEERING

G106871

CYLINDER

ASSEMBLY - steering, Includes: Ref. 2 - 29

4шт.

2

G106911

ROD

ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

G106910

BUSHING

- rod

1шт.

4

S62213

SNAP RING,2.165", Int, #216

Ring, Snap, 2.165", Int, #216

2шт.

G105165

GLAND

ASSEMBLY - cylinder, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Reference No. G105166)

1шт.

7

A23535

OIL SEAL

WASHER - backup

1шт.

8

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

- gland

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- buffer (Replaces G103705)

1шт.

10

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod (Replaces D36970)

1шт.

11

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod

1шт.

19

G106916

PISTON

- cylinder

1шт.

17

G100448

RING,101.6mm OD, Ext

- bearing

2шт.

18

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- loader

1шт.

19

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

RING - sealing

1шт.

20

G105920

RING

- cylinder union

1шт.

21

83-65

SET SCREW,Hex Soc, 3/8"-16 x 5/16"

SCREW - hex socket set, 3/8 NC x 5/16 inch

1шт.

22

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch

1шт.

23

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- bolt

1шт.

26

G106905

TUBE

- cylinder, Includes: Ref. 27 and 28

1шт.

27

G106910

BUSHING

- tube

1шт.

28

S62213

SNAP RING,2.165", Int, #216

Ring, Snap, 2.165", Int, #216

2шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.
