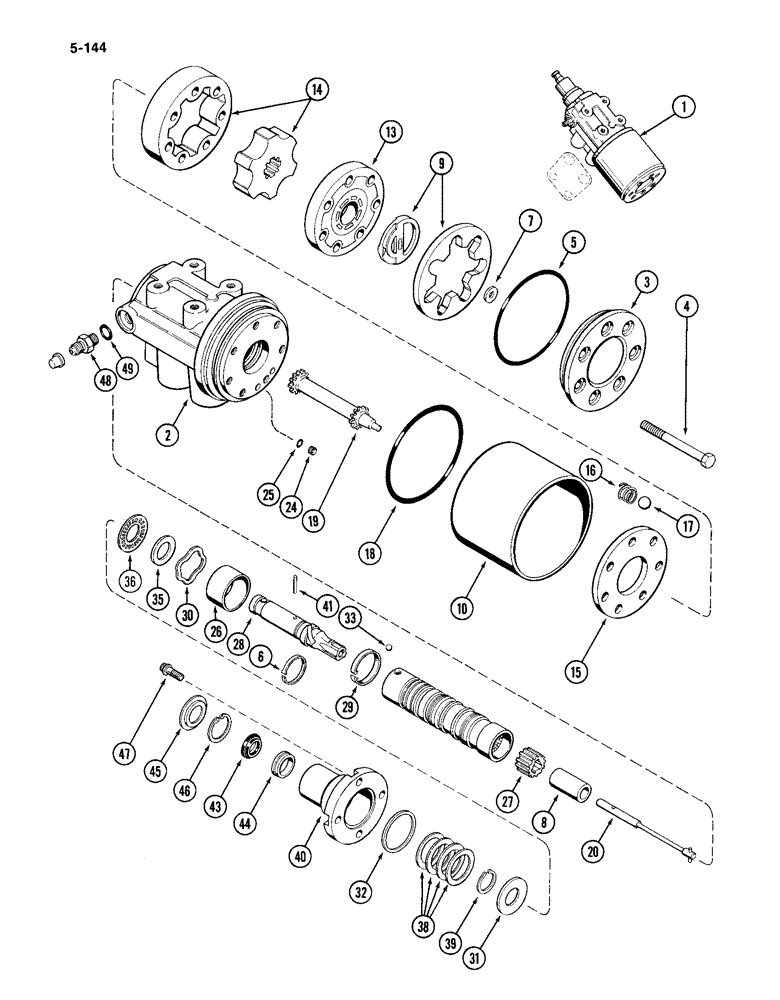

Запчасти Case IH 4994 (5-144) - PUMP AND VALVE (05) - STEERING

1

A164013

VALVE

PUMP AND VALVE ASSEMBLY - steering, Includes: Ref. 2 - 20 and washer

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order A164013)

1шт.

3

A49431

COVER

ASSEMBLY - end

1шт.

4

28-662

BOLT,Hex, 3/8" - 24 x 3-7/8", Gr 8

- hex, 3/8 NF x 3-7/8 inch

7шт.

5

N9509

SEALING RING

- ring

1шт.

6

A43560

SPRING

- shaft

1шт.

7

A49432

COVER

WASHER - hardened

1шт.

8

A49426

SPACER

- drive link

1шт.

9

L35670

COMMUTATOR

ASSEMBLY - manifold

1шт.

10

A49425

SLEEVE

- pump

1шт.

13

L35669

MANIFOLD

ASSEMBLY - pump

1шт.

14

A49423

BAR

ROTOR - pump

1шт.

15

L35667

PLATE

- wear

1шт.

16

A49430

SPRING

- wear plate

1шт.

17

211-321

BALL

- 13/16 inch (8 mm)

1шт.

18

N9509

SEALING RING

- ring

1шт.

19

L35666

LINK

- drive

1шт.

20

A49422

BAR

- torsion

1шт.

L35673

WASHER

- special (Not shown)

1шт.

24

L36015

PLUG

ASSEMBLY - pump (Replaces L35015), Includes: Ref. 25

1шт.

25

A43729

O-RING

- plug

1шт.

26

N6514

BUSHING

SPACER - bearing

1шт.

27

A49429

OIL SEAL

RING - drive

1шт.

28

A43551

SHAFT

- input

1шт.

29

A49428

KIT

SPRING - ball

1шт.

30

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - spring

1шт.

31

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - bearing thrust

1шт.

32

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

33

211-9

BALL,5/16" Dia

- 5/16 inch (8 mm) diameter

1шт.

D75494

SPACER

- pump (Not shown)

1шт.

35

F19634

BEARING WASHER

WASHER - bearing thrust

1шт.

36

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle thrust

1шт.

A44435

SHIM

KIT - cover bearing shim, Includes: Ref. 38

1шт.

38

NSS

NOT SOLD SEPARAT

SHIM - bearing cover, 0.002 inch (0.05 mm) (Reference No. L35663)

1шт.

38

NSS

NOT SOLD SEPARAT

SHIM - bearing cover, 0.005 inch (0.13 mm) (Reference No. A43557)

4шт.

38

NSS

NOT SOLD SEPARAT

SHIM - bearing cover, 0.010 inch (0.25 mm) (Reference No. L35662)

4шт.

38

NSS

NOT SOLD SEPARAT

SHIM - bearing cover, 0.030 inch (0.76 mm) (Reference No. L35664)

1шт.

39

A43720

RING

- bearing retaining end

1шт.

40

D65139

COVER

- pump

1шт.

41

D53297

PIN

DOWEL PIN - torsion, Serial Range: bar-shaft

1шт.

D73671

SEAL

KIT - seal (Order A47038), Includes: Ref. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - shaft packing (Reference No. A44583)

1шт.

44

NSS

NOT SOLD SEPARAT

SEAL - spacer (Order A47038) (Reference No. A44585)

1шт.

45

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.

46

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, gland

1шт.

47

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

BOLT - 12 point, 5/16 NC x 3/4 inch

4шт.

48

A49427

CHECK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 49

1шт.

49

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

A47038

SEAL KIT,Pump Shaft

SEAL KIT - pump shaft, includes seals

1шт.

NSS

NOT SOLD SEPARAT

SEAL - spacer (Order A47038) (Reference No. A44585)

1шт.

NSS

NOT SOLD SEPARAT

SEAL - hand pump shaft (Reference No. A45667)

1шт.

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.
