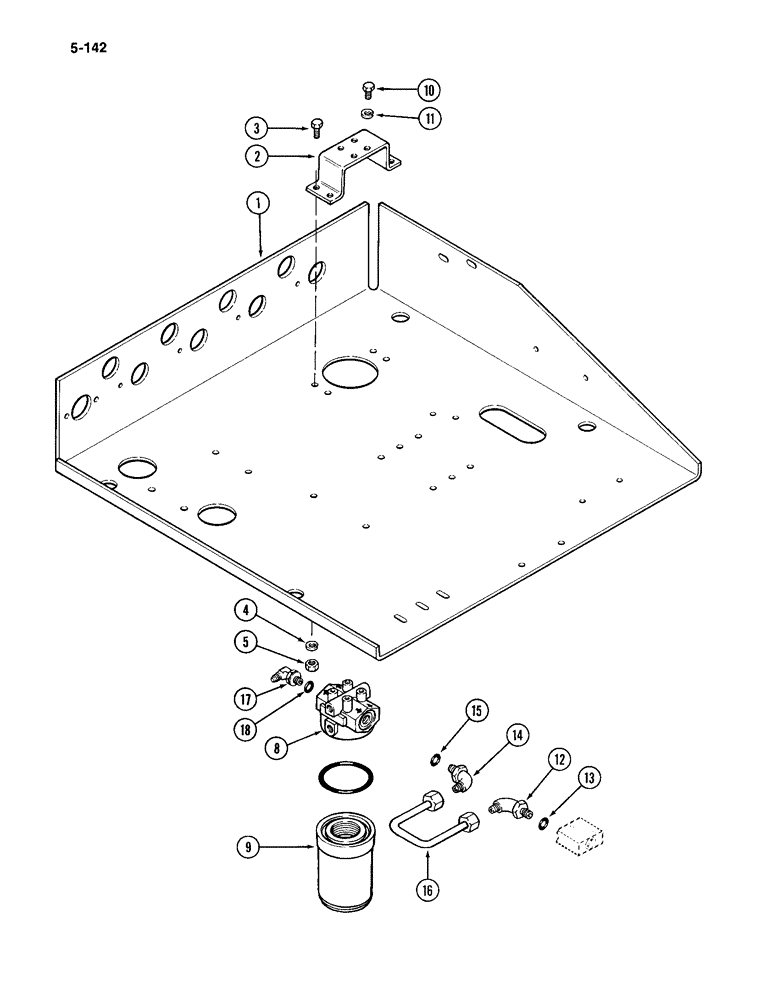

Запчасти Case IH 4994 (5-142) - REAR STEERING FILTER SYSTEM (05) - STEERING

1

A163952

PLATE

- remote coupling mounting

1шт.

2

A165733

BRACKET

- filter mounting

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT - hex, 1/2 inch NC

4шт.

8

A165030

FILTER, ENGINE OIL

FILTER ASSEMBLY - rear steering, Includes: Ref. 9

1шт.

9

A165029

HYDRAULIC OIL FILTER

ELEMENT - steering filter

1шт.

10

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree, outlet, Includes: Ref. 13

1шт.

13

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

14

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Assy, Inlet15 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

16

A176446

TUBE ASSY.

TUBE ASSEMBLY - filter inlet

1шт.

17

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 thread x 1/2 tube 3/4-16 inch thread (without hitch) (with hitch see Page 8-333)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.
