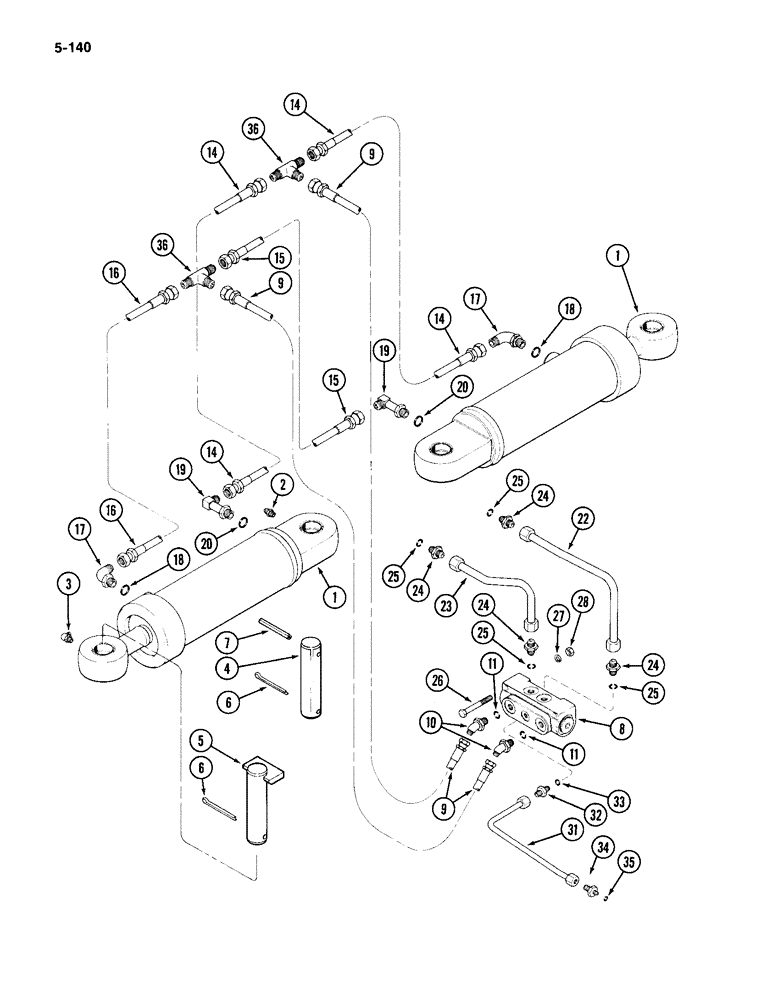

Запчасти Case IH 4994 (5-140) - REAR STEERING HYDRAULICS, CYLINDERS AND CHECK VALVE (05) - STEERING

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - rear steering (See Figure 5-146)

2шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

4

A177220

PIN

- steering cylinder, outboard

4шт.

5

A177219

PIN

- steering cylinder, inboard

4шт.

6

132-351

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

4шт.

7

135-820

GROOVED PIN,1/4" x 2 3/4", Type E

Pin, Grooved, 1/4" x 2 3/4", Type E

2шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - check (See Figure 5-154)

1шт.

9

D51691

HOSE

- check, Serial Range: valve-cylinder

2шт.

10

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 45 degree adjustable, 1/2 tube 3/4-16 inch thread, Incl. Ref 11

2шт.

14

L50840

HOSE

- cylinder

2шт.

15

D25170

HOSE

- cylinder, left inner

1шт.

16

S8584

HOSE ASSY.,12.70 mm ID x 939.80, SAE 100R2

HOSE ASSY, 12.70 mm ID x 939.80 mm, SAE 100R2A, Cylinder, R.H., Outer

1шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/8-14 inch thread, Incl. Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

19

218-5126

ELBOW,90 Degree, Adj, 7/8"-14 O-Ring x 7/8"-14 37 Degree

ASSEMBLY - 90 degree, 3/8 tube 7/8-14 inch thread, Includes: Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

22

A163915

TUBE ASSY.

TUBE - steering to check valve, top

1шт.

23

A163916

TUBE ASSY.

TUBE - steering to check valve, bottom

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 25

4шт.

26

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

2шт.

31

A163909

TUBE ASSY.

TUBE - check valve sensing

1шт.

32

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, Includes: Ref. 33

1шт.

33

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

34

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, valve sensing, Incl. Ref. 35

1шт.

35

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

36

R38237

STRAP

- retaining

6шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.
