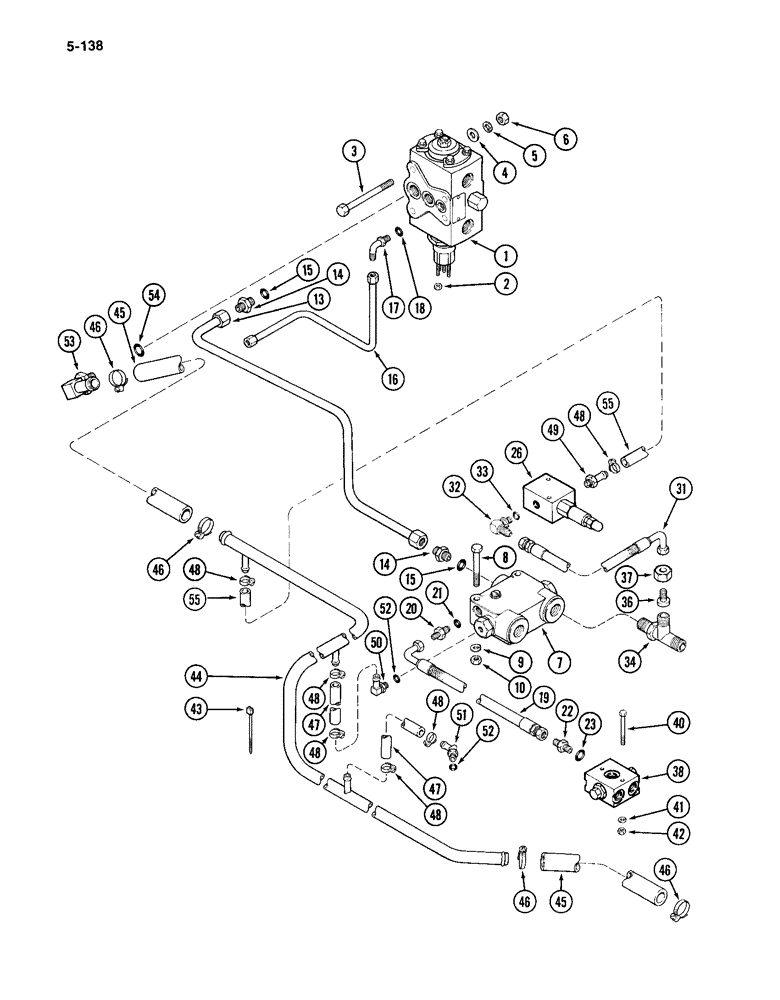

Запчасти Case IH 4994 (5-138) - REAR STEERING HYDRAULICS, PRIORITY AND CONTROL VALVES (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering control (See Figure 5-148)

1шт.

2

129-16

NUT,#8-32

Valve stud #8-32

3шт.

3

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - steering priority (See Figure 5-152)

1шт.

8

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

A163918

TUBE

-, Serial Range: steering-priority

1шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, priority valve, Incl. Ref 15

2шт.

16

A165740

TUBE ASSY.

TUBE - pilot pressure

1шт.

17

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree, adjustable, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread, Incl. Ref. 18

1шт.

18

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 15/64 x 1/16 inch (6 x 2 mm)

1шт.

19

H231639

HOSE ASSY.

HOSE -, Serial Range: shuttle-priority

1шт.

20

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - priority valve sensing, Includes: Ref. 21

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, left rear shuttle valve port, Incl. Ref. 23

1шт.

23

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

26

A176454

VALVE

ASSEMBLY - pressure regulator (See Figure 5-156)

1шт.

28

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

31

R41134

HOSE

- regulator valve to priority valve

1шт.

32

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread, Incl. Ref. 33

1шт.

33

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

34

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- priority

1шт.

36

218-795

REDUCER,37 Degree, 3/4" x 3/8" Tube

- 3/4 x 3/8 inch tube

1шт.

37

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - 3/4 inch tube

1шт.

38

A164011

VALVE

ASSEMBLY - dual check (See Figure 5-156)

1шт.

40

113-115

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 1/4 NC x 2-1/4 inch

2шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

42

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

43

R38237

STRAP

- nylon retaining

2шт.

44

A164122

TUBE ASSY.

TUBE - rear steering drain

1шт.

45

H307918

HOSE ASSY.

HOSE - drain

2шт.

46

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose retaining

4шт.

47

D80135

HOSE,9.50 mm ID x 457.20 mm, SAE 30R2

Valve to Drain Tube 9.50 mm ID x 457.20 mm, SAE 30R2

2шт.

48

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

6шт.

49

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Connector - Valve drain port, Includes: Ref. 52 3/8" Hose X 1/4" NPTF Beaded

1шт.

50

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

CONNECTOR - rear priority drain port, Includes: Ref. 52

1шт.

51

217-312

FITTING,45 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

CONNECTOR - front priority drain port, Includes: Ref. 52

1шт.

52

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch tube

2шт.

53

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degree, steering valve drain port, Includes: Ref. 54

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube

1шт.

55

D80135

HOSE,9.50 mm ID x 457.20 mm, SAE 30R2

Pressure Valve to Drain (Without Hitch, with Hitch, See Figure 8-300) 9.50 mm ID x 457.20 mm, SAE 30R2

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 3/32 inch (16 x 2 mm)

1шт.
