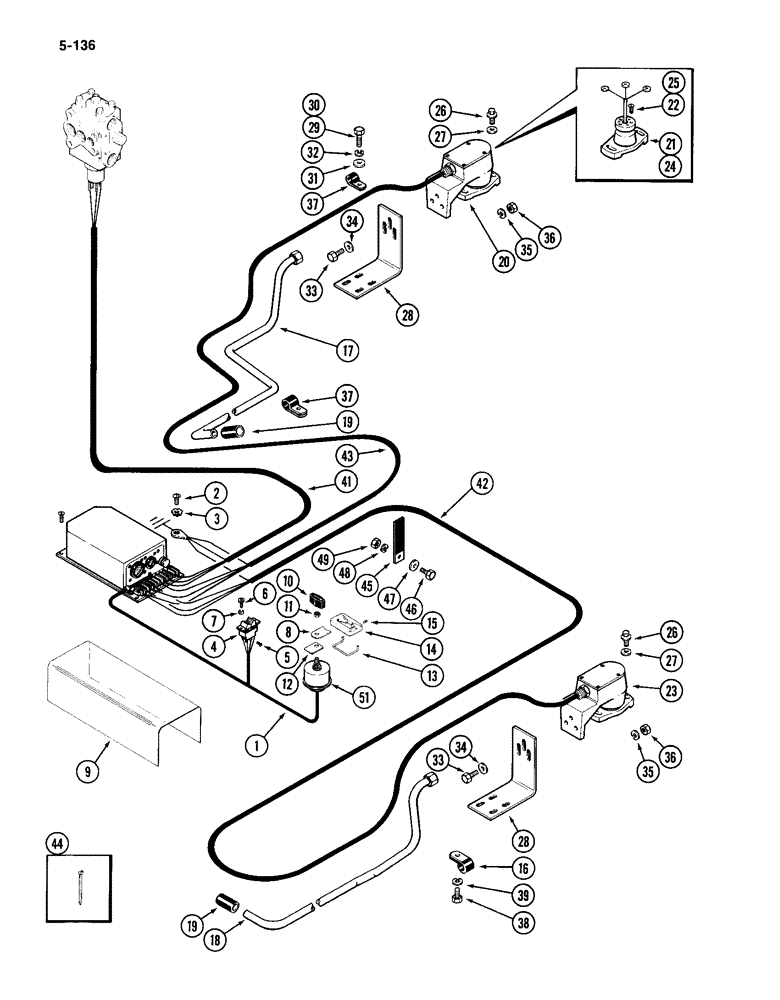

Запчасти Case IH 4994 (5-136) - ELECTRIC CONTROLS (05) - STEERING

1

A181078

CONTROL

AND HARNESS ASSEMBLY - rear steering

1шт.

2

187-1506

SELF-TAP SCREW,0.164"-32 x 1/2"

SCREW - hex self tapping, No. 8-32 x 1/2 inch

6шт.

3

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

6шт.

4

A165308

SWITCH

- rocker rear steering control, Includes: Ref. 5

1шт.

5

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- pan head slotted brass, No. 6-32 inch

6шт.

6

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- pan head Phillips, No. 6-32 x 1/2 inch

2шт.

7

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

8

A162042

PLATE

STRAP - retaining

1шт.

9

A176897

COVER

- protective, controller

1шт.

10

A160272

KNOB

- selector

1шт.

11

A39888

NUT

- spring, 3/8-32 inch

1шт.

12

A160501

SPRING

- selector knob

1шт.

13

A160502

ELECTRICAL WIRE

WIRE - stop

1шт.

14

A162250

KNOB

SWITCH - limiter

1шт.

15

178-850

SET SCREW,Hex Soc, #6-32 x 1/4"

SCREW - hex socket set, No. 6-32 x 1/4 inch

1шт.

16

49833

CLAMP

- cable retaining

1шт.

17

A176502

TUBE

CONDUIT - rear sensor

1шт.

18

A169021

TUBE

CONDUIT - front sensor

1шт.

19

A161375

SLEEVE

- shrink, harness to conduit (Set of 2)

1шт.

20

A167028

SENSOR

- rear axle, Includes: Ref. 21 and 22

1шт.

21

A48955

SENSOR

- rear axle

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

23

A167027

SENSOR

ASSEMBLY - front axle, Includes: Ref. 24 and 25

1шт.

24

A48954

SENSOR

- front axle

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

26

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

27

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

4шт.

28

A166882

BRACKET

- sensor mounting

2шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

31

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

8шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

33

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

34

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

6шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

37

49838

CLAMP

- conduit retaining

2шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

41

A163989

HARNESS

- electric steering valve

1шт.

42

A163990

HARNESS

- front steering

1шт.

ref #42...p/qc comments: THIS IS THE REAR STEERING HARNESS SHOWS IN THE BOOK AS THE FRONT STEERING HARNESS.

1шт.

43

A163991

HARNESS

- rear steering

1шт.

44

R38237

STRAP

STRIP - retaining

5шт.

45

A149624

CLIP

- retaining

3шт.

46

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

47

195-524

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch (10 x 29 x 2 mm)

3шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

A167752

SWITCH

KIT - rotary switch, Includes: Ref. 51

1шт.

51

NSS

NOT SOLD SEPARAT

SWITCH - rotary (Order A167752) (Reference No. A167751)

1шт.

Ref. #51 states to order A167752 for 4994 - this is incorrect. Need to order 1987512C1 switch and wire tractor per diagram that TSG and CAM have.

1шт.
