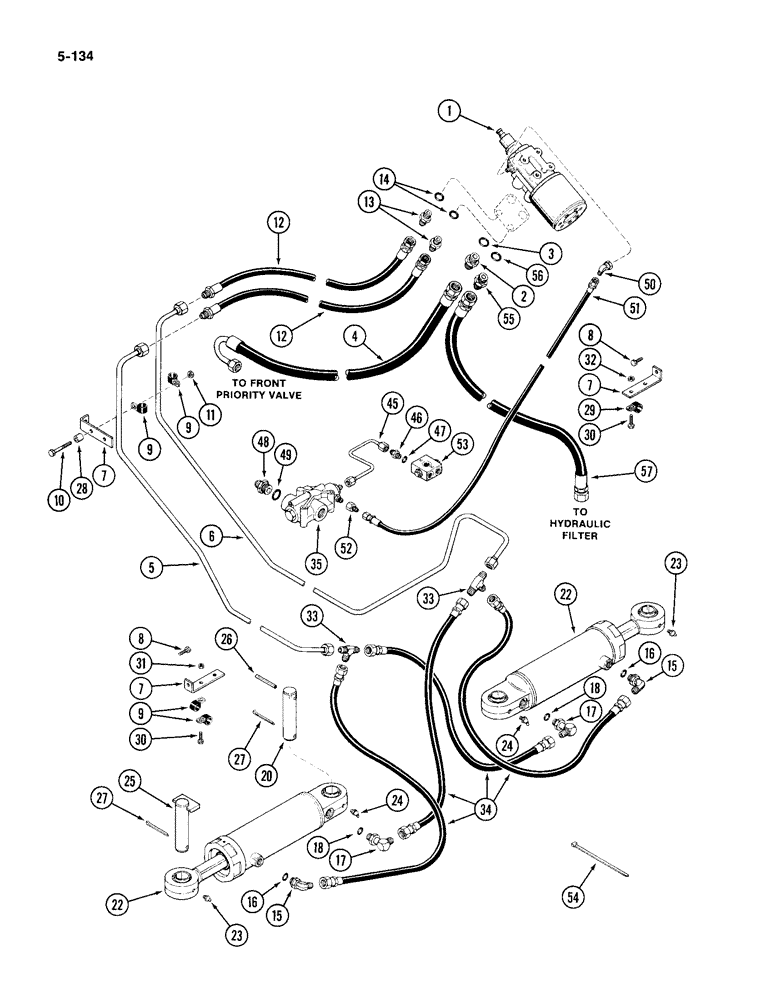

Запчасти Case IH 4994 (5-134) - FRONT STEERING HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

VALVE AND PUMP ASSEMBLY - steering (See Figure 5-144)

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - steering valve, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1/8 inch (23 x 3 mm)

1шт.

4

A167943

HOSE ASSY.

HOSE - steering pressure

1шт.

5

A167014

TUBE

- steering cylinder, right

1шт.

6

A167015

TUBE

- steering cylinder, left

1шт.

7

A163968

BRACKET

- tube support

3шт.

8

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

BOLT - hex, 3/8 NC x 1 inch

2шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube retaining

6шт.

10

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

1шт.

12

36547

HOSE

- steering cylinder

2шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - cylinder hose, Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 3/32 inch (19 x 2 mm)

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- outer cylinder port, 90 degree, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 3/32 inch (19 x 2 mm)

1шт.

17

218-5126

ELBOW,90 Degree, Adj, 7/8"-14 O-Ring x 7/8"-14 37 Degree

- inner cylinder port, 90 degree, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 3/32 inch (19 x 2 mm)

1шт.

20

A177219

PIN

- steering cylinder, inboard

2шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, front (See Figure 5-146)

2шт.

23

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch PT

2шт.

24

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree

2шт.

25

A177220

PIN

- steering cylinder, outboard

2шт.

26

135-820

GROOVED PIN,1/4" x 2 3/4", Type E

Pin, Grooved, (6 x 70 mm) 1/4" x 2 3/4", Type E

2шт.

27

132-351

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

4шт.

28

A140434

BUSHING

SPACER - 3/4 inch wide (19 mm)

1шт.

29

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube retaining

1шт.

30

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

31

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

1шт.

33

218-595

TEE,7/8"-14, 37 Degree

- steering tube to cylinder hoses

2шт.

34

D33346

HOSE

- cylinder

4шт.

35

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-150)

1шт.

45

A167944

HOSE ASSY.

TUBE - priority, Serial Range: valve-shuttle

1шт.

46

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, Incl. Ref. 47

1шт.

47

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

48

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 49

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

15/16 x 1/8 inch (23 x 3 mm)

1шт.

50

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree

1шт.

51

D55870

HOSE

- steering sensing

1шт.

52

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

ADAPTER - 3/8 inch tube to 1/4 inch tube

1шт.

53

REF

INSTRUCTION

VALVE - dual check (See Figure 5-156)

1шт.

54

R38237

STRAP

- retaining

2шт.

55

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 56

1шт.

56

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1/8 inch (23 x 3 mm)

1шт.

57

L77088

HOSE ASSY.

HOSE - steering return

1шт.
