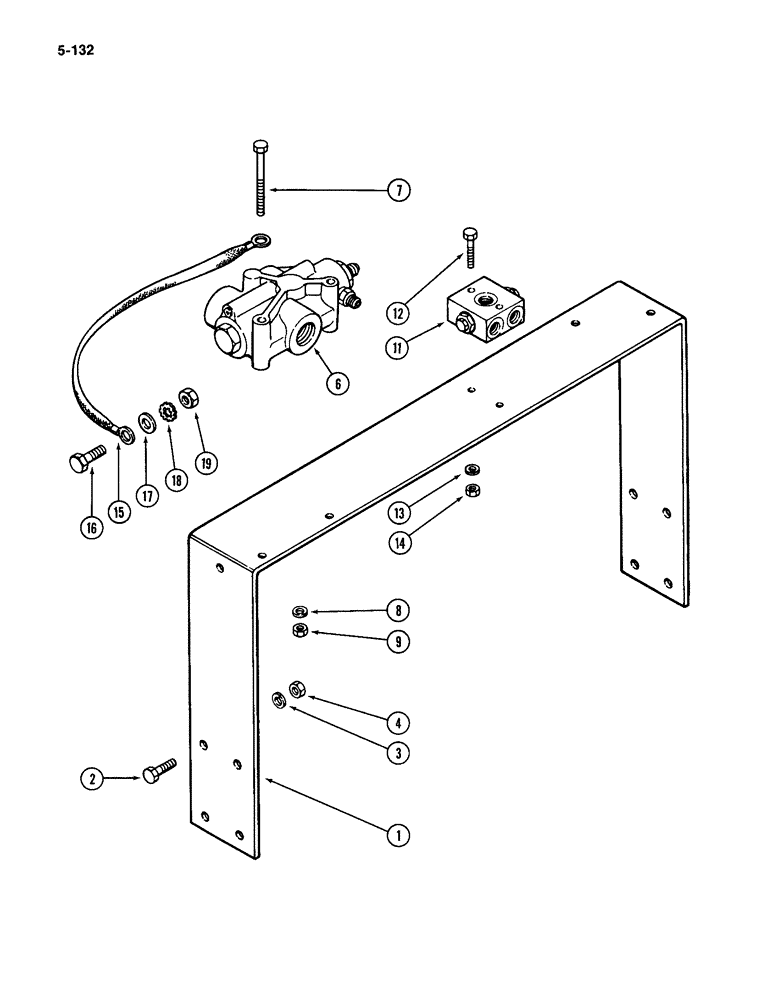

Запчасти Case IH 4994 (5-132) - STEERING VALVES MOUNTING (05) - STEERING

1

A163953

BRACKET

- valve support

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

6

REF

INSTRUCTION

VALVE - priority (See Figure 5-150)

2шт.

7

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

REF

INSTRUCTION

VALVE - check (See Figure 5-152)

1шт.

12

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

15

A64704

STRAP

- ground

1шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

17

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

1шт.

18

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
