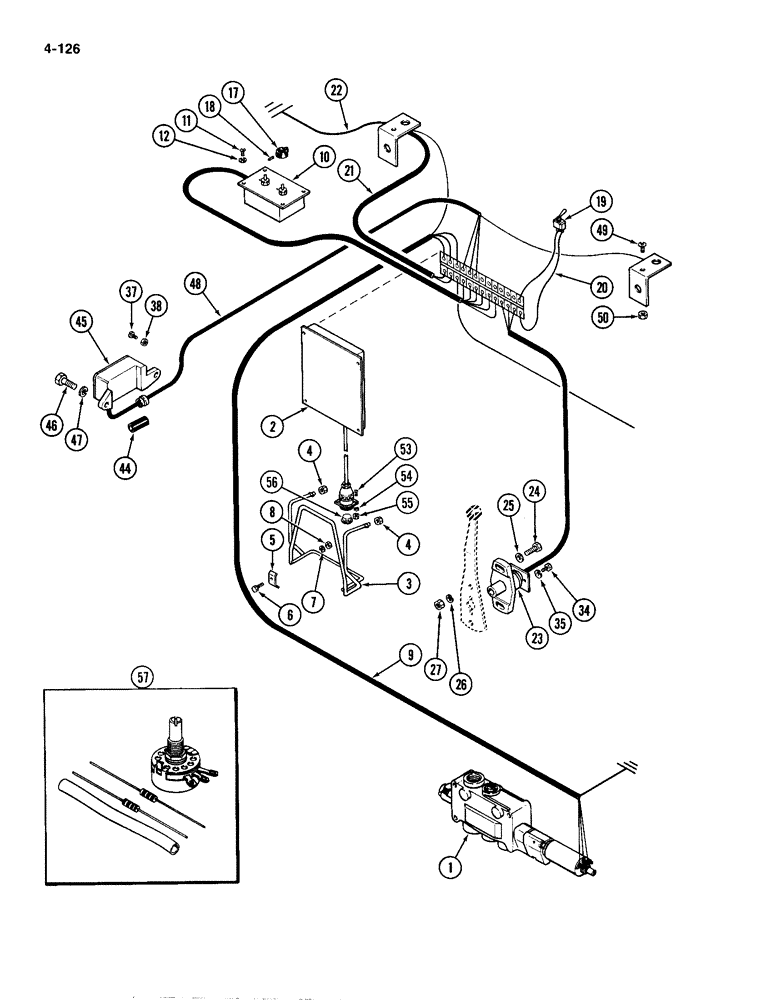

Запчасти Case IH 4994 (4-126) - ELECTRIC HITCH WIRING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-337)

1шт.

2

A176429

BOX

BOX - hitch control

1шт.

2

AR176429

REMAN-ELECT MONITOR

REMAN-MONITOR REMANUFACTURED CONTROL BOX

1шт.

2

AC176429

CORE-MONITOR

Return Number, CONTROL BOX

1шт.

3

A162600

BRACKET

BRACKET - control box

1шт.

4

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self threading, 7/16 inch

2шт.

5

A60224

CLAMP

CLAMP -, Serial Range: bracket-console

1шт.

6

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

1шт.

9

A165079

HARNESS

HARNESS ASSEMBLY - hitch valve

1шт.

10

A167145

BOX

CONTROL BOX - hitch

1шт.

11

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

SCREW - pan head, No. 8-32 x 5/16 inch

4шт.

12

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

17

A169091

KNOB

KNOB - draft and sensing, Includes: Ref. 18

2шт.

18

178-870

SET SCREW,Hex Soc, #8-32 x 3/16"

SCREW - set, No. 9-32 x 3/16

2шт.

19

A162764

SWITCH

SWITCH - reset

1шт.

20

A165198

ELECTRICAL WIRE

WIRE WIRE - reset switch

2шт.

21

A162427

CABLE PULLING GRIP

WIRE - hitch valve ground

1шт.

22

A163035

ELECTRICAL WIRE

WIRE WIRE - hitch ground, Serial Range: console-frame

1шт.

23

A162359

TRANSMITTER

SENSOR - hitch lever

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

25

195-104

WASHER,3/8"

WASHER - flat, 3/8 inch

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

34

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

37

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

SCREW - slotted pan head, brass, No. 6-32 x 3/16 inch

3шт.

38

A167755

NUT

NUT - hex, No. 6-32

3шт.

A161254

SLEEVE

SLEEVE - shrink (Set of 3)

1шт.

44

A163365

SLEEVE

SLEEVE - shrink, sensor to harness (Order A161254)

1шт.

45

REF

INSTRUCTION

SENSOR - rockshaft (See Figure 8-331)

1шт.

46

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

48

A165080

HARNESS

HARNESS ASSEMBLY - rockshaft sensor

1шт.

49

182-551

SCREW

SCREW - pan head, slotted, No. 8-32 x 5/8 inch

2шт.

50

129-16

NUT,#8-32

NUT, #8-32

2шт.

53

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

SCREW - pan head Phillips, No. 6-32 x 1/2 inch

3шт.

54

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external lock, No. 6

3шт.

55

129-15

NUT,#6-32

NUT, #6-32

3шт.

56

353-409

PLUG,Dome, .812" hole, Nylon

PLUG - protective (Heyco Type)

1шт.

57

A167596

KIT

Rotary Switch

1шт.
