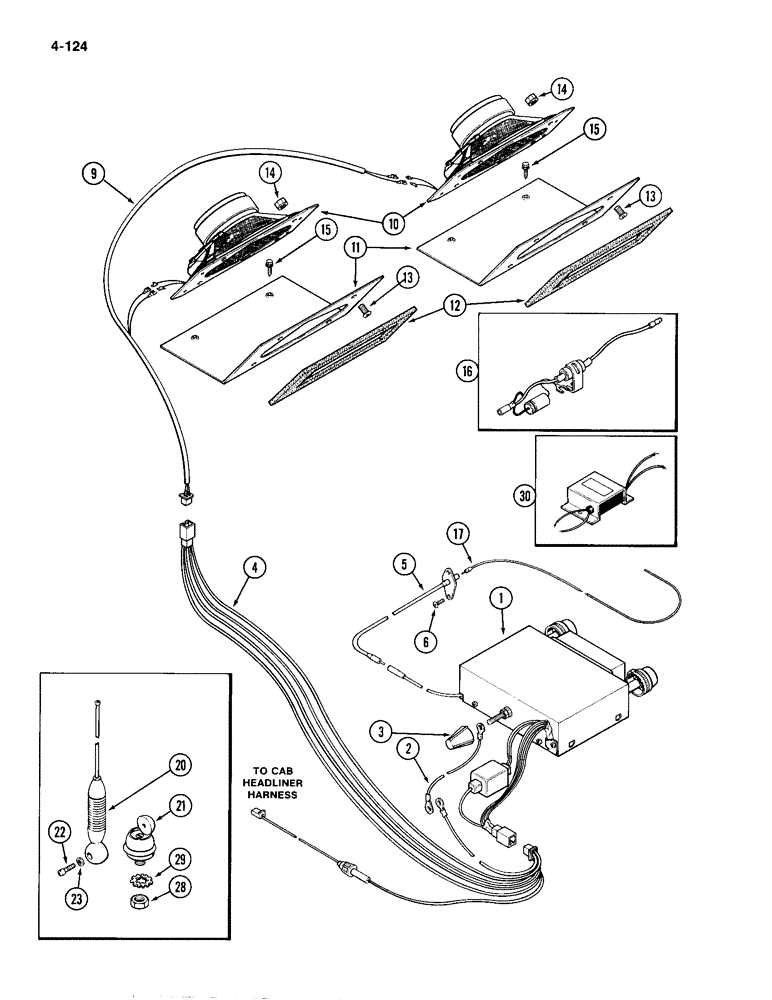

Запчасти Case IH 4994 (4-124) - HEADLINER MOUNTED RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

A167180

RADIO

KIT - AM, Includes: Ref. 2 - 4

1шт.

1

A167181

RADIO

KIT - AM-FM stereo, Includes: Ref. 2 - 4

1шт.

1

A167182

RADIO

KIT - AM-FM with eight track tape player, Includes: Ref. 2 - 4

1шт.

1

A167183

RADIO

KIT - AM-FM with cassette tape player, Includes: Ref. 2 - 4

1шт.

Ref #1 - A167180, A167181, A167182 & A167183 Will No Longer Be Furnished. New Radio's are A180796, A180797 & A180798. New three piece panels F66128, F66129 & F66139 Must be ordered. 02/01/96

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - radio ground (Order kit)

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - retaining (Order kit)

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS - radio wire (Order kit)

1шт.

5

F64799

CABLE

- antenna

1шт.

6

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - round head, No. 10-16 x 1/2 inch

2шт.

9

F66160

HARNESS

- speaker lead (Replaces F64727)

1шт.

10

F66124

HARNESS

SPEAKER - radio (Replaces F64847)

2шт.

11

F64667

PLATE

- speaker

2шт.

12

F64793

SEAL

GASKET - speaker sealing

2шт.

13

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10-24 x 3/4 inch

8шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

15

187-1913

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self tapping, No. 10

4шт.

16

F64184

CAPACITOR

SUPPRESSOR - noise (Mounted on blower motor)

1шт.

17

F64182

CABLE

- antenna

1шт.

A177631

ANTENNA

ASSEMBLY - whip, radio, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

ANTENNA - whip (Order A177631) (Reference No. A177751)

1шт.

21

A177752

ANTENNA

BASE ASSEMBLY - antenna

1шт.

22

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- slotted fillister, No. 10-32 x 5/8 inch

1шт.

23

192-149

WASHER

- lock, 3/16 inch

1шт.

28

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, 1/2 inch NF

1шт.

29

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

30

A180120

FILTER

- noise, radio

1шт.
