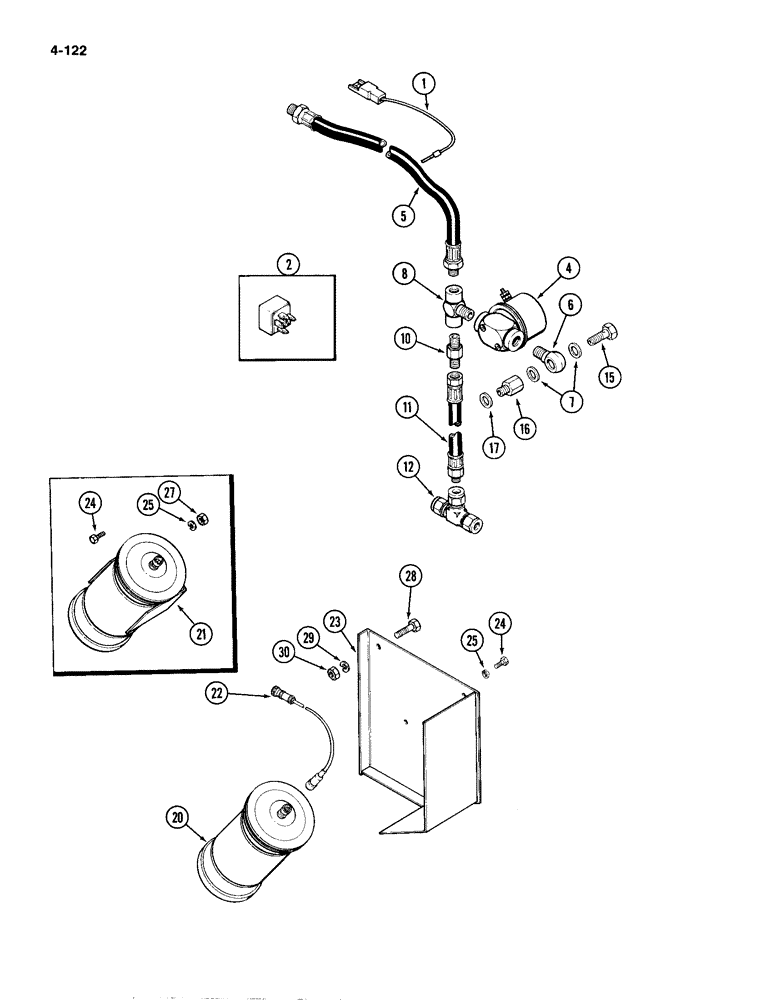

Запчасти Case IH 4994 (4-122) - ENGINE AUTO SHUTOFF / GROUND SPEED SENSOR ADJUSTMENT (04) - ELECTRICAL SYSTEMS

A181079

SHUTOFF KIT - engine automatic (Machinery Item), Includes: Ref. 1 - 12

1шт.

1

A167616

ELECTRICAL WIRE

WIRE - power supply

1шт.

2

A147176

RELAY

- shutoff, 30 ampere

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - shutoff (Reference No. A180520)

1шт.

4

A176720

VALVE

- shutoff

1шт.

5

A176820

HOSE,33.00"

fuel 33.00"

1шт.

6

A177255

FITTING

FITING - banjo, valve

1шт.

7

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

- banjo fitting

2шт.

8

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

- hydraulic, 1/4 x 1/4 x 1/4 inch PT (Replaces 217-1141)

1шт.

10

A180904

VALVE

- relief, pressure

1шт.

11

A180676

HOSE

ASSEMBLY - fuel

1шт.

12

A180519

TEE

ASSEMBLY - hydraulic

1шт.

15

A47945

BOLT

CONNECTOR BOLT - banjo

1шт.

16

A47920

ADAPTER

- extension

1шт.

17

A48231

WASHER

- adapter

1шт.

A169281

SENSOR ATTACHMENT - ground speed (Machinery Item), Includes: Ref. 20 - 30

1шт.

20

A177139

RELAY

SENSOR - ground speed (Cast with tapped holes)

1шт.

21

NSS

NOT SOLD SEPARAT

SENSOR - ground speed (Steel) (Order A177139 sensor) (Reference No. A169110)

1шт.

22

A167862

HARNESS

- sensor

1шт.

23

A177180

BRACKET

- sensor mounting (Replaces A169640)

1шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used with A169110 sensor) 3/8"-16, G5

1шт.

28

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-3/4 inch (Used with A169110 sensor)

2шт.

28

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, 1/2 NC x 1-1/2 inch

2шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
