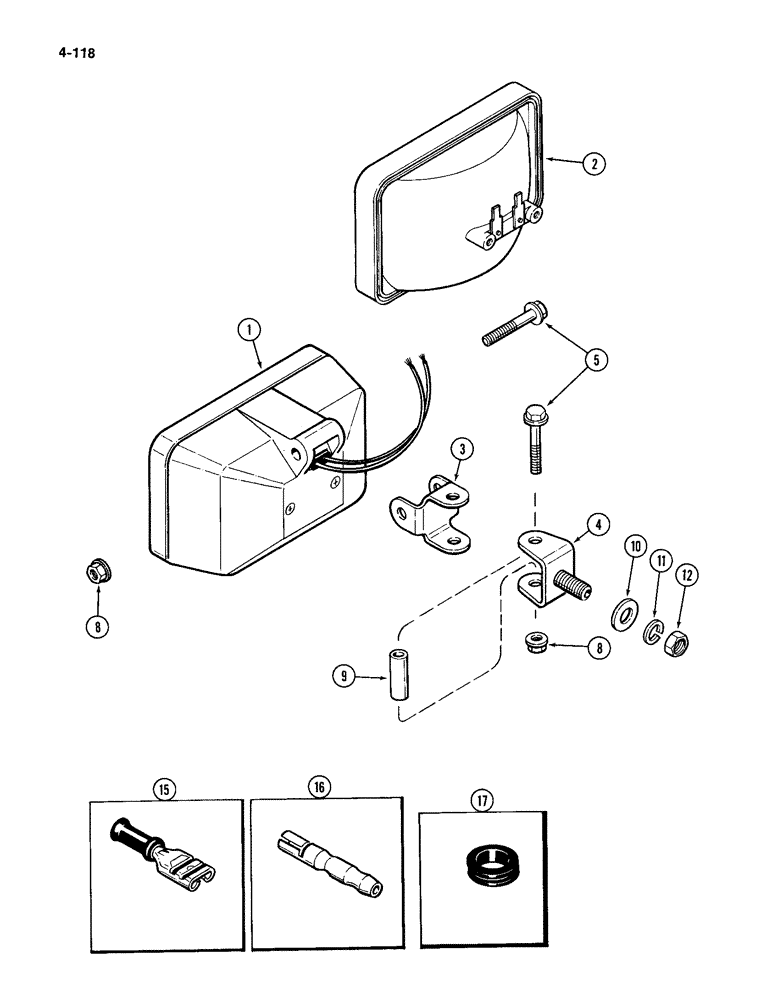

Запчасти Case IH 4994 (4-118) - FLOOD LAMP ATTACHMENT, UPPER FRONT REAR AND FENDER MOUNTED LAMPS (04) - ELECTRICAL SYSTEMS

A177347

LAMP

ASSEMBLY - flood, Includes: Ref. 1 - 16

1шт.

1

A52214

LAMP

ASSEMBLY - flood (Order A177347), Includes: Ref. 2

1шт.

2

A48265

LAMP

BULB - seal beam (Includes screws)

1шт.

3

A52215

SUPPORT

BRACKET - lamp, adjusting (Upper rear mounted)

1шт.

4

A52216

SUPPORT

BRACKET - stud, mounting

1шт.

5

A52217

BOLT

- hex flange, 5/16 NC x 2 inch

2шт.

8

A52218

NUT

- hex flange, 5/16 inch NC

2шт.

9

A52219

SPACER

- pivot, bracket (Upper rear mounted)

1шт.

10

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/16 inch (14 x 35 x 3 mm)

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

15

A177332

SPADE TERMINAL,Female

TERMINAL - wire ( blade type) Female

2шт.

16

A52220

TERMINAL CONNECTOR,Male

TERMINAL - wire ( bullet type) Male

2шт.

17

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- wire (fender mounted)

1шт.
