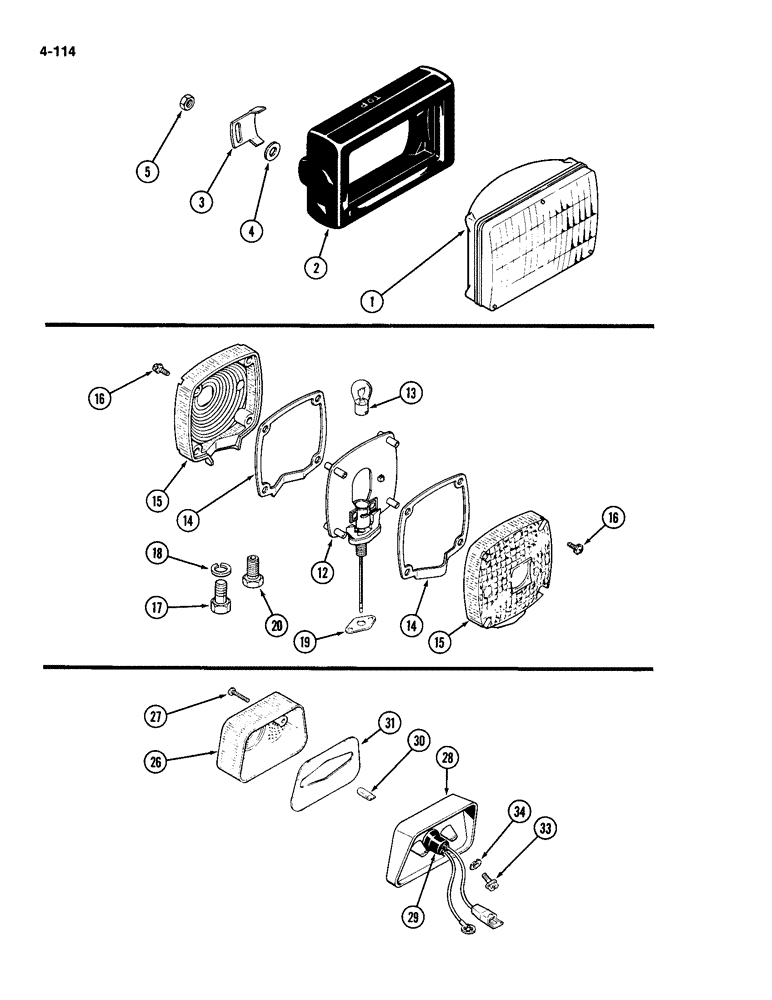

Запчасти Case IH 4994 (4-114) - HEAD LIGHTS / FLASHER LIGHT / TAIL LIGHT (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

LIGHT - head, sealed unit (No. 4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNT - rubber

2шт.

3

A146355

CLAMP

CLIP - mounting

4шт.

4

195-2038

WASHER,13/32" x 7/8" x .035"

- flat, 13/32 x 7/8 x 3/64 inch (10 x 22 x 1 mm)

4шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

A44201

LIGHT ASSY.

KIT - replacement, flasher light, Includes: Ref. 12 - 20

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

13

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

14

A43731

GASKET

- lens

2шт.

A44202

KIT

- lens replacement

1шт.

15

NSS

NOT SOLD SEPARAT

LENS

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head Phillips, No. 8-32 x 3/4 inch

8шт.

17

113-38

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

- hex, 1/4 NC x 5/8 inch

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

F63435

GASKET

- lamp base

1шт.

20

NSS

NOT SOLD SEPARAT

STUD - flasher (Not used this application)

1шт.

A164673

LAMP

TAIL LIGHT ASSEMBLY - rear, Includes: Ref. 26 - 31

2шт.

26

A47056

LENS

- red

1шт.

27

187-829

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - pan head slotted, No. 8-18 x 1 inch

2шт.

28

F64797

BASE

- lamp

1шт.

29

F64795

SOCKET

ASSEMBLY - bulb (Includes terminal)

1шт.

30

D71346

TAIL LAMP,12V

BULB - lamp (No. 168)

1шт.

31

A47055

GASKET

- tail light

1шт.

33

187-1308

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

SCREW - hex self-tapping, 1/4 x 3/4 inch, tail light

4шт.

34

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal, external, Shakeproof, 1/4 inch, tail light

4шт.
