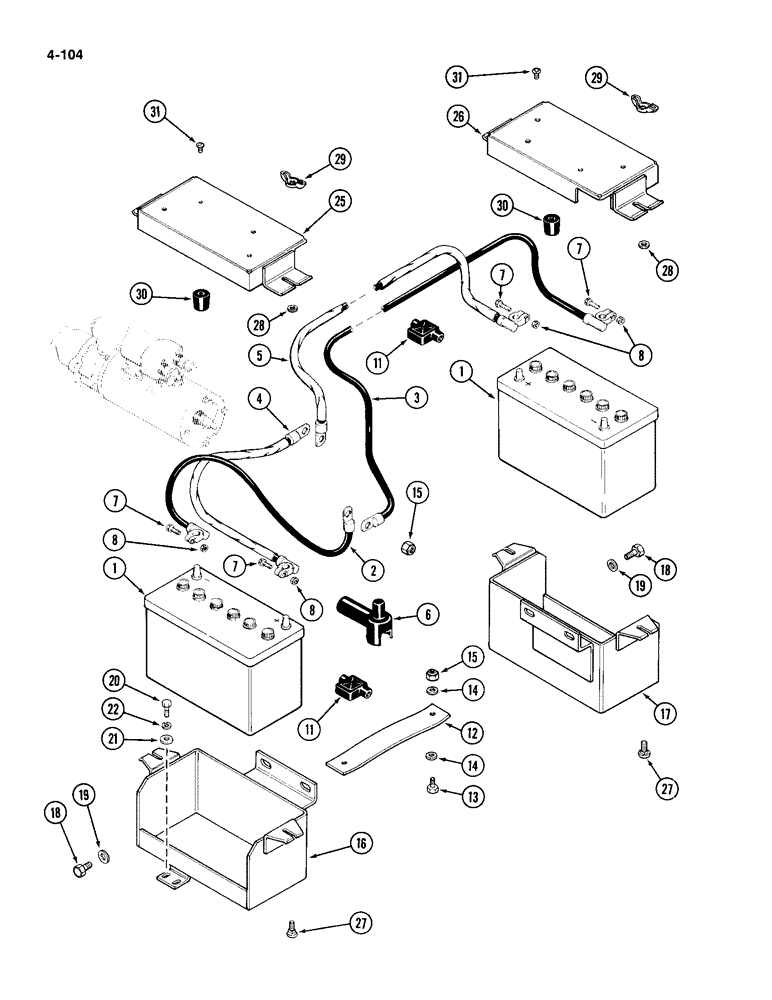

Запчасти Case IH 4994 (4-104) - BATTERIES, CABLES AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

A162334

DRY BATTERY

- 12 volt (Order A38411)

2шт.

1

A38411

DRY BATTERY

- 12 volt, dry (Service only)

1шт.

2

A167920

NEG BATTERY CABLE

CABLE - negative, right

1шт.

3

A75819

CABLE

- negative, left

1шт.

4

A164040

CABLE

- positive, right

1шт.

5

A164041

CABLE

- positive, left

1шт.

6

A153796

BOLT

BOOT - starter terminal

1шт.

7

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch

4шт.

8

129-737

NUT

- hex, 5/16 inch NC

4шт.

11

A139372

CAP

- battery terminal

2шт.

12

D123496

STRAP

- cable to steering cylinder

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

2шт.

15

131-206

NUT,3/8"-16

NUT - hex lock, 3/8 inch NC

1шт.

16

A167922

CARRIER

- battery, right

1шт.

17

A167923

CARRIER

- battery, left

1шт.

18

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

19

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

4шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

A169482

COVER

- battery, left

1шт.

26

A169483

COVER

- battery, right

1шт.

27

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

28

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

4шт.

29

G49020

NUT

- wing, 5/16 inch

4шт.

30

A75847

FENDER

BUMPER - battery cover

8шт.

31

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- Phillips head, 1/4 NC x 3/8 inch

8шт.
