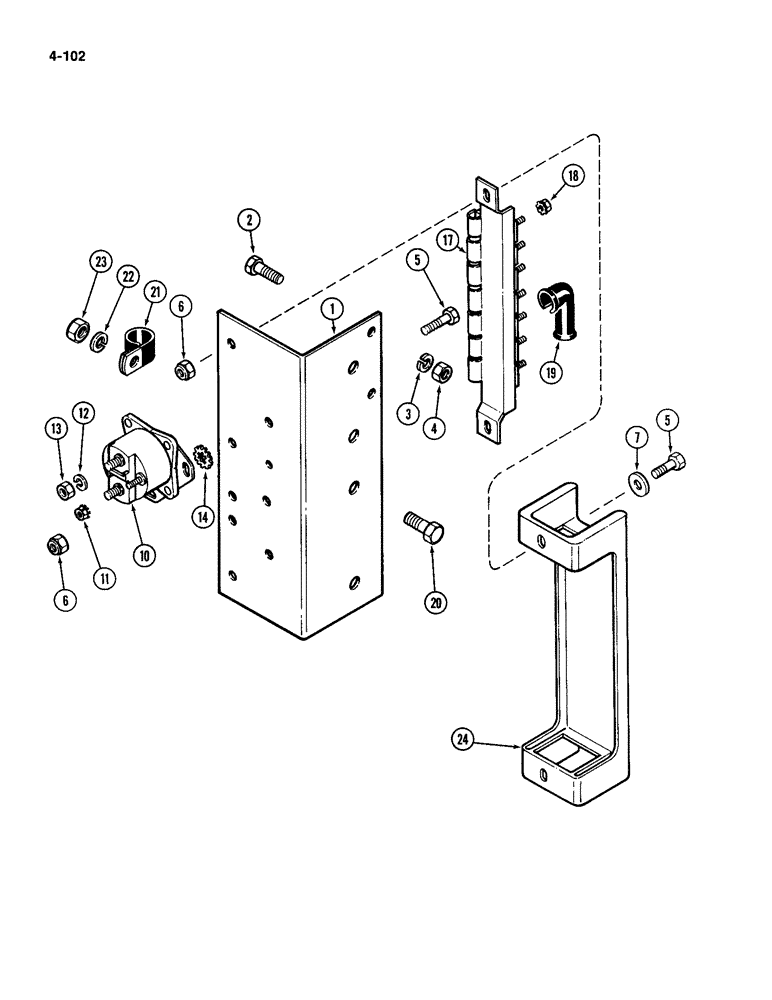

Запчасти Case IH 4994 (4-102) - SOLENOID AND CIRCUIT BREAKER MOUNTING (04) - ELECTRICAL SYSTEMS

1

A166340

BRACKET

- mounting

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

6

192-1006

NUT - hex lock, 1/4 inch NC

4шт.

7

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

10

A39079

SOLENOID

ASSEMBY - ignition

1шт.

11

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex Esna lock, No. 10-32

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal and external lock, 5/16 inch

2шт.

17

A165723

BREAKER

CIRCUIT BREAKER - electrical system

1шт.

18

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex Esna lock, No. 10-32

6шт.

19

A21753

CAP

BOOT - rubber terminal

10шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

49838

CLAMP

- cable retaining

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

24

A169929

COVER ASSY

COVER - circuit breader bar

1шт.
