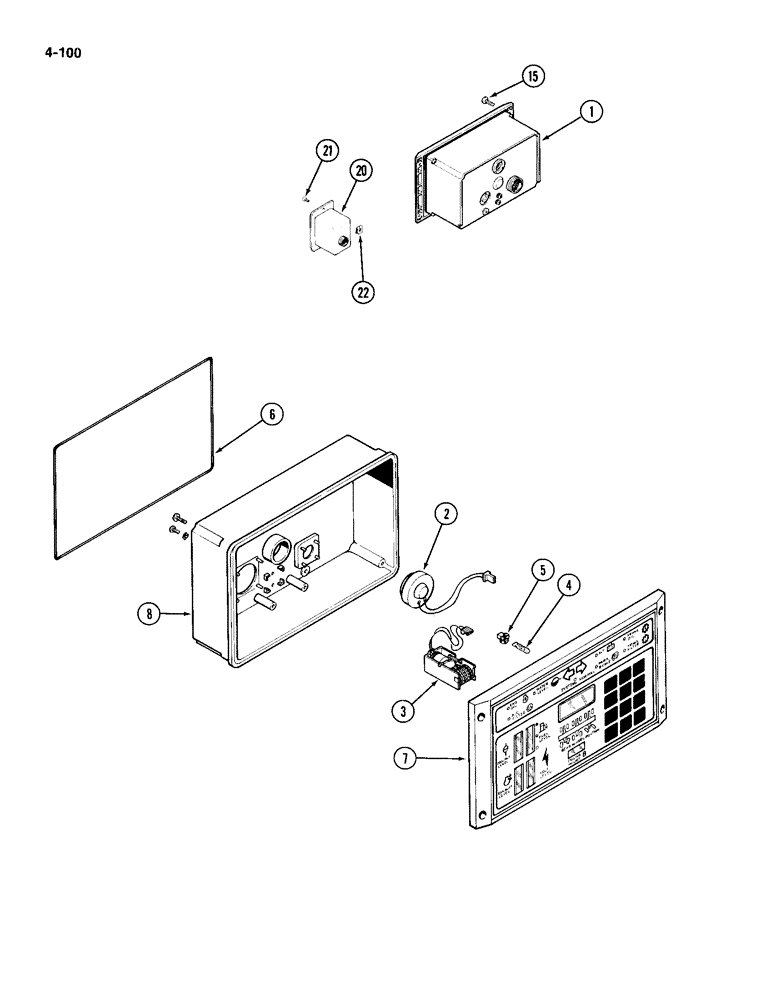

Запчасти Case IH 4994 (4-100) - INSTRUMENT CLUSTER / TRANSMISSION INDICATOR (04) - ELECTRICAL SYSTEMS

AR167765

INSTRUMENT CLUSTER

CLUSTER ASSEMBLY - instrument (Remanufactured), Includes: Ref. 2 - 8

1шт.

AC167765

CORE

RETURN NUMBER - cluster (Use this number to return cluster core for credit)

1шт.

1

A167765

INSTRUMENT CLUSTER

CLUSTER ASSEMBLY - instrument (New), Includes: Ref. 2 - 8

1шт.

2

A48886

BUZZER

ALARM - instrument cluster

1шт.

3

A48887

GAUGE

COUNTER - instrument cluster

1шт.

4

A48888

BULB

- instrument cluster

5шт.

5

A48889

LAMP SOCKET

SOCKET - cluster bulb

5шт.

6

A48890

GASKET

- instrument cluster

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - face, cluster

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - cluster

1шт.

15

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

- mounting, Phillips head, No. 10-24 x 3/4 inch

4шт.

20

AR164042

DISTRIBUTOR

INDICATOR - transmission gear (Remanufactured)

1шт.

20

AC164042

CORE-MONITOR

RETURN NUMBER - indicator (Use this number to return indicator core for credit), transmission

1шт.

20

A164042

SEE PARTS MARKETING

INDICATOR - transmission gear (New)

1шт.

21

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

- mounting, Phillips head, No. 10-24 x 3/4 inch

2шт.

22

131-861

SPRING NUT,Tinn, U, #10-24

2шт.
