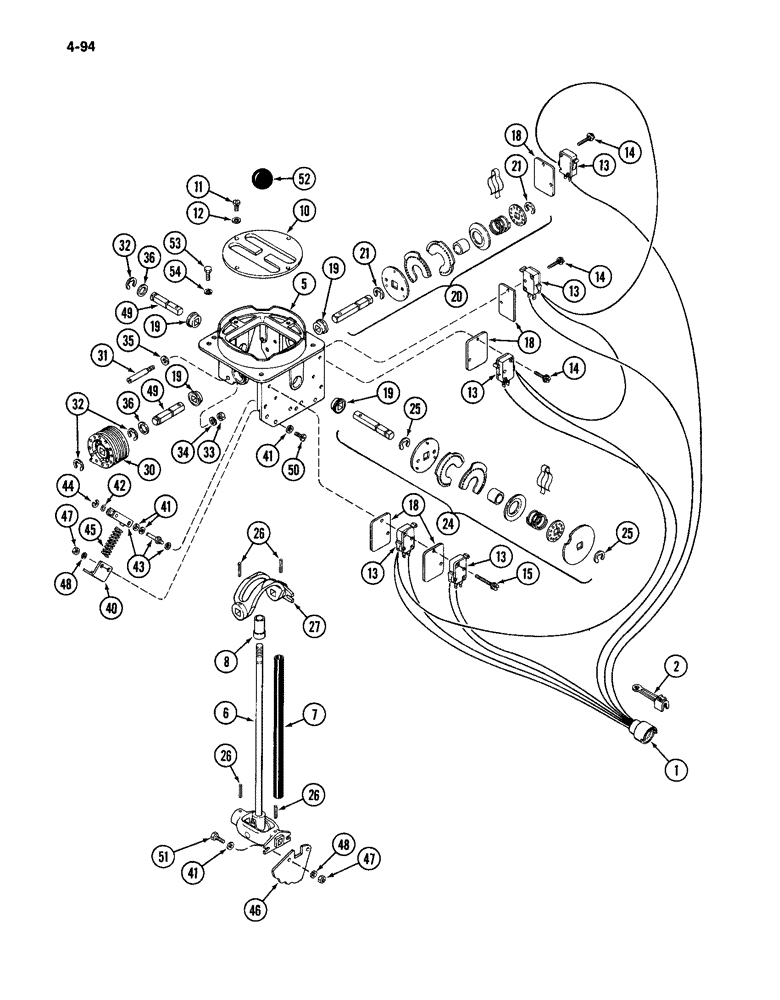

Запчасти Case IH 4994 (4-094) - ELECTRIC SHIFT HARNESS AND CONTROL LEVER (04) - ELECTRICAL SYSTEMS

1

A176574

HARNESS

ASSEMBLY - electric shift

1шт.

2

A169697

CLAMP

- retaining, shift harness

2шт.

A165052

CONTROL

MECHANISM ASSEMBLY - shift lever, Includes: Ref. 5 - 51

1шт.

5

NSS

NOT SOLD SEPARAT

FRAME - lever

1шт.

6

A49694

SHAFT ASSY.

LEVER ASSEMBLY - shift

1шт.

7

A49399

TUBE

- lever (plastic)

1шт.

8

A49400

ROLLER

- bushing

1шт.

10

A49401

PLATE

- gate, "H"

1шт.

11

A49402

SCREW,M5 x 10mm

- gate plate, M5 x 10 mm

4шт.

12

892-1105

LOCK WASHER,M5

WASHER - lock, M5

4шт.

13

A49413

SWITCH

ASSEMBLY - micro

5шт.

14

A49416

SCREW,3/4"

- mounting, switch (3/4 inch long)

6шт.

15

A49415

SCREW,1 1/4"

- mounting, switch (1-1/4 inch long)

2шт.

18

A49414

INSULATOR

- micro switch

5шт.

19

A49760

BEARING

- shaft

4шт.

20

A49752

SHAFT ASSY.

SHAFT ASSEMBLY - axis, A-B, Includes: Ref. 21

1шт.

21

A49407

CLIP

- retaining

2шт.

24

A49759

SHAFT ASSY.

SHAFT ASSEMBLY - axis, C-D, Includes: Ref. 25

1шт.

25

A49407

CLIP

- retaining

2шт.

26

A49763

PIN, ROLL

PIN - roll

4шт.

27

A49761

BRIDGE

DRIVE - axis

1шт.

30

A49406

SPRING

ASSEMBLY - return

1шт.

31

A49405

BOLT

- spring return

1шт.

32

A49407

CLIP

- retaining

3шт.

33

A49403

NUT

- hex, M5

1шт.

34

NLS

NO LONGER SERVICED

WASHER - lock, M5

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - backing

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - backing

2шт.

40

NSS

NOT SOLD SEPARAT

BRACKET - detent

1шт.

41

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

42

A49411

WASHER

- arm

1шт.

43

A49398

ARM

ASSEMBLY - detent

1шт.

44

A49418

CLIP

- retaining

1шт.

45

A49412

SPRING

- detent arm

1шт.

46

A49762

CAM

DETENT - shift

1шт.

47

A49409

NUT

- hx, M4

4шт.

48

A49410

LOCK WASHER

WASHER - lock, M4

4шт.

49

NSS

NOT SOLD SEPARAT

SHAFT - return

2шт.

50

NSS

NOT SOLD SEPARAT

SCREW - retainer

2шт.

51

A49408

BOLT

- retaining lever

2шт.

52

A169090

KNOB

- lever, shift (Red)

1шт.

53

814-5025

BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8

- hex, M5 x 25 mm

4шт.

54

892-1105

LOCK WASHER,M5

WASHER - lock, M5

4шт.
