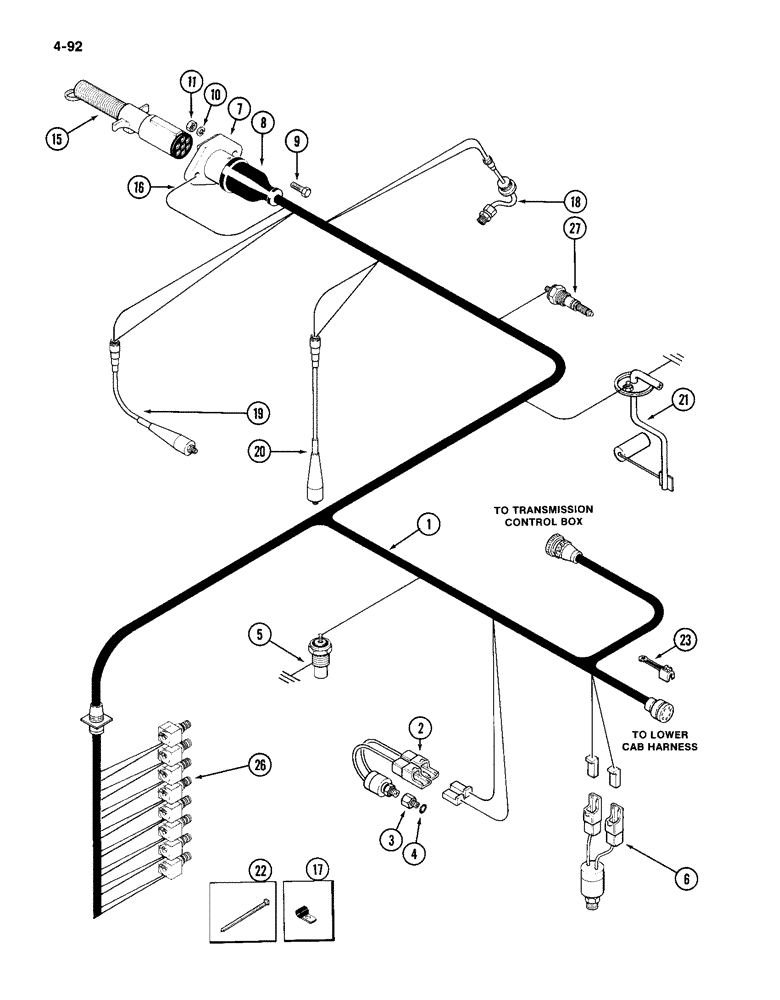

Запчасти Case IH 4994 (4-092) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A166786

HARNESS

ASSEMBLY - transmission

1шт.

2

A162422

SWITCH

- transmission oil pressure

1шт.

3

218-5098

FITTING

COUPLING - oil pressure switch

1шт.

4

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 inch ID (9 mm)

1шт.

5

A135001

SWITCH

- transmission oil temperature

1шт.

6

A181208

SWITCH

- hydraulic filter pressure

1шт.

7

A145795

CONNECTOR, ELEC

CONNECTOR - auxiliary outlet

1шт.

8

A169283

BOOT

COVER - auxiliary outlet

1шт.

9

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

A139672

PLUG

CONNECTOR - 7 point plug

1шт.

16

A163117

ELECTRICAL WIRE

WIRE - outlet ground

1шт.

17

49855

CLAMP

- transmission harness

1шт.

18

A49274

SENSOR

- magnetic speed

1шт.

19

A49294

CABLE

- pressure switch

1шт.

20

A49373

CABLE

- pressure switch

1шт.

21

REF

INSTRUCTION

SENDER - fuel level (See Figure 3-82)

1шт.

22

R38237

STRAP

- nylon retaining

1шт.

23

A169696

CLAMP

- retaining

3шт.

26

REF

INSTRUCTION

SOLENOID AND RECEPTACLE ASSEMBLY - transmission (See Figure 6-188)

1шт.

27

REF

INSTRUCTION

SWITCH - transmission fitler (See Figure 8-272)

1шт.
