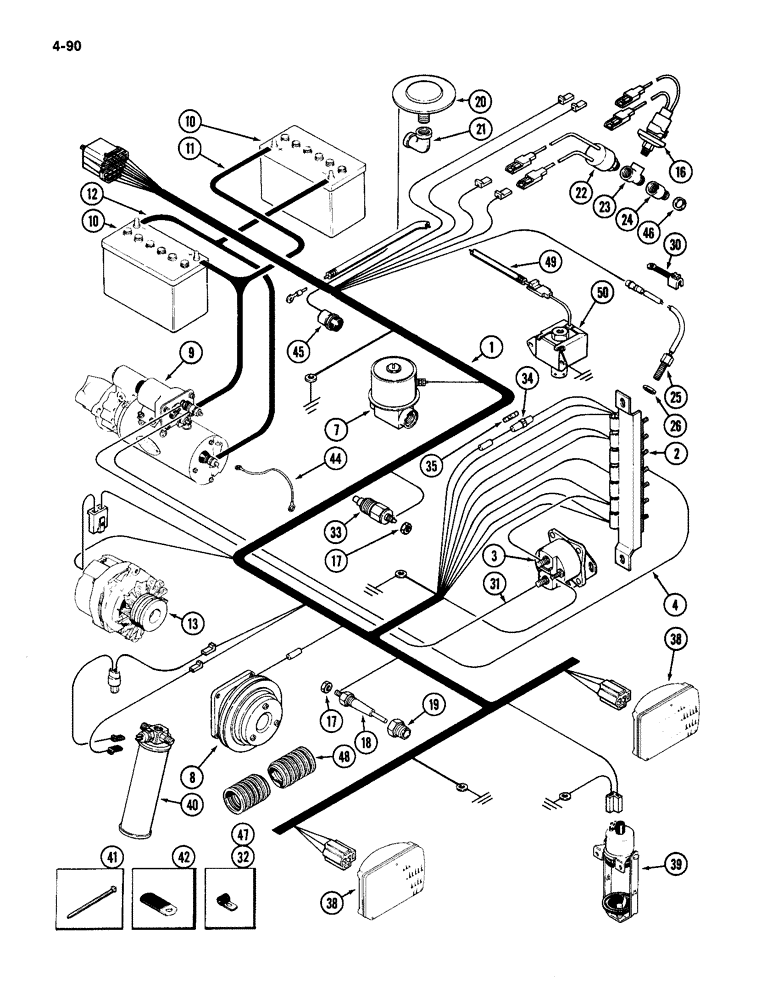

Запчасти Case IH 4994 (4-090) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A166787

HARNESS

ASSEMBLY - engine

1шт.

2

A165723

BREAKER

CIRCUIT BREAKER - electric system

1шт.

3

REF

INSTRUCTION

SOLENOID - ignition (See Figure 4-102)

1шт.

4

A167219

ELECTRICAL WIRE

WIRE - starter to circuit breaker

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - fuel shutoff (See Figure 4-120)

1шт.

8

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor (See Figure 9-436)

1шт.

9

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-108)

1шт.

10

REF

INSTRUCTION

BATTERY - 12 volt (See Figure 4-104)

2шт.

11

REF

INSTRUCTION

CABLE - battery, positive (See Figure 4-104)

2шт.

12

REF

INSTRUCTION

CABLE - battery, negative (See Figure 4-104)

2шт.

13

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-112)

1шт.

16

A177628

SWITCH

- engine oil pressure, 8 PSI (55 kPa)

1шт.

17

129-37

NUT,#10-32

2шт.

18

A145513

SENSOR

PROBE - coolant level sensing

1шт.

19

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing - Probe to radiator 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

20

A154782

SWITCH

- air restriction indicator

1шт.

21

221-1365

ELBOW,45 Degree, 1/8" NPT

- switch to air cleaner, 45 degree

1шт.

22

A167644

PRESSURE SWITCH

SWITCH - engine oil pressure, 40 PSI (276 kPa)

1шт.

23

217-50

TEE,1/8"-27 NPTF Fem x 1/8"-27 NPTF Male Run

- pressure switch

1шт.

24

A166789

REDUCER FITTING

BUSHING - tee to oil cooler

1шт.

25

A176438

GAUGE

SENSOR - magnetic engine RPM

1шт.

26

525-5110

NUT,M18 x 1.5, Cl 8

- hex, M18

1шт.

30

A169696

CLAMP

- sensor retaining

1шт.

31

A165706

CABLE

- starting solenoid

1шт.

32

49833

CLAMP

- cable retaining

1шт.

33

A176566

TRANSMITTER

SENDER - water temperature

1шт.

34

L59393

ELECTRICAL WIRE

WIRE - circuit breaker, Includes: Ref. 35

1шт.

35

223-6

FUSE,6 Amp, Type 3AG

- 6 ampere

1шт.

38

REF

INSTRUCTION

HEAD LIGHT - seal beam (See Figure 4-114)

2шт.

39

REF

INSTRUCTION

SOLENOID - ether start (See Figure 2-16)

1шт.

40

REF

INSTRUCTION

RECEIVER-DRIER - air conditioning (See Figure 9-432)

1шт.

41

R38237

STRAP

- nylon retaining

1шт.

42

A37179

CLIP

- headlight harness retaining

2шт.

44

A165302

CABLE

STRAP - engine to frame, ground

1шт.

45

D122244

SWITCH

- fuel pump

1шт.

46

A11530

GASKET

- adapter

1шт.

47

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- engine harness

1шт.

48

A180465

CONDUIT

- harness

1шт.

49

A177585

ELECTRICAL WIRE

WIRE ASSEMBLY - fuel pump

1шт.

50

REF

INSTRUCTION

PUMP ASSEMBLY - fuel, electric (See Figure 3-82)

1шт.
