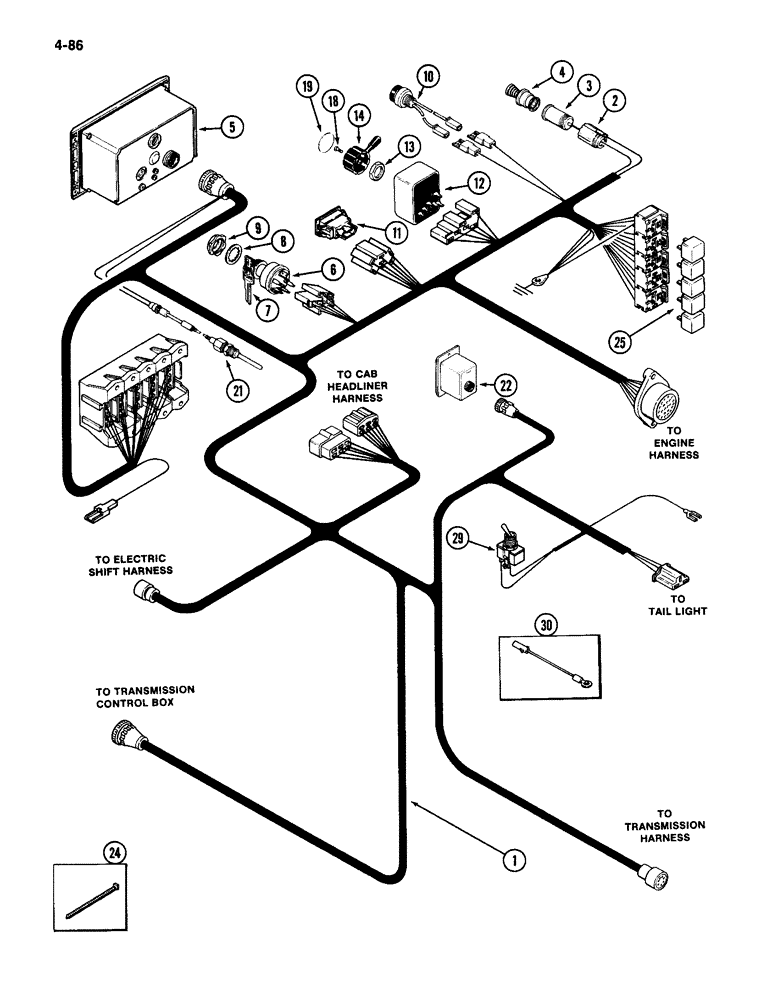

Запчасти Case IH 4994 (4-086) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

A181258

HARNESS

ASSEMBLY - lower cab, Start Serial: 8865846

1шт.

1

A1777749

HARNESS ASSEMBLY - lower cab, Serial Range: -8865846

1шт.

2

F63738

CIGAR LIGHTER

SHELL - lighter

1шт.

3

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

4

A177447

LIGHTER, CIGARETTE

ELEMENT - cigar lighter, push in

1шт.

5

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See Figure 4-100)

1шт.

6

L61053

IGNITION SWITCH

SWITCH - ignition

1шт.

7

A77313

SET OF 2 KEYS

KEY - ignition switch (Set of 2)

1шт.

8

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal Shakeproof, 1 inch

1шт.

9

A77314

NUT

- lock, Serial Range: switch-panel

1шт.

10

A135520

SWITCH

- cold start

1шт.

11

A163009

SWITCH

- light

1шт.

12

A77184

SWITCH

- turn signal

1шт.

13

131-428

LOCK NUT,PAL, 3/4"-20

NUT - palnut, 3/4-20 inch

1шт.

14

A141736

KNOB

- turn signal switch

1шт.

18

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- round head, No. 5-40 x 1/2 inch

1шт.

19

A167962

DISC

PLATE - knob insert

1шт.

21

A162936

TRANSMITTER

THERMOCOUPLE - exhaust

1шт.

22

A164042

SEE PARTS MARKETING

INDICATOR - transmission gear (See Figure 4-100)

1шт.

24

R38237

STRAP

- nylon retaining

1шт.

25

A147176

RELAY

- flood lamp

5шт.

29

A101999

SWITCH - transmission mode

1шт.

30

A181092

ELECTRICAL WIRE

WIRE - transmission mode, Serial Range: -8865846

2шт.
