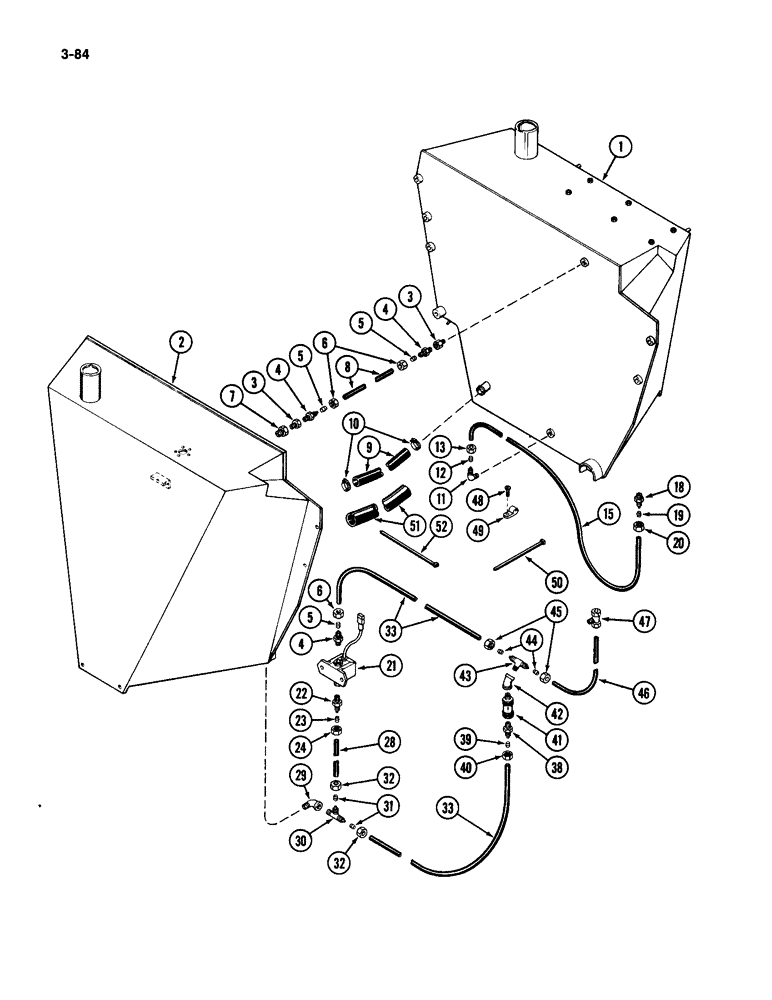

Запчасти Case IH 4994 (3-84) - FUEL TANK LINES (03) - FUEL SYSTEM

1

A167651

FUEL TANK

TANK ASSEMBLY - fuel, left

1шт.

2

A177654

TANK

ASSEMBLY - fuel, right

1шт.

3

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- extension, 1/4 x 1/4 inch PT

2шт.

4

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 5 - 7

3шт.

5

222-2611

SLEEVE

- 3/8 inch tube

1шт.

6

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

7

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer, 1/2 x 1/4 inch PT

2шт.

8

A66118

TUBE

- vent, long (Order A167912 and, Serial Range: cut-length)

1шт.

9

A163997

HOSE - tank to tank (Order S118389 and, Serial Range: cut-length)

1шт.

S118389

HOSE,2.00" ID x 60.00", SAE J30R2 Type 3

- Nylon 2.00" ID x 60.00", SAE J30R2 Type 3

1шт.

10

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

11

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 90 degree, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 12 and 13

1шт.

12

222-2611

SLEEVE

- 3/8 inch tube

1шт.

13

222-2603

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

15

A176592

HOSE

TUBE - return, fuel

1шт.

18

222-1806

UNION

CONNECTOR ASSEMBLY - straight, special, Includes: Ref. 19 and 20

1шт.

19

222-2611

SLEEVE

- 3/8 inch tube

1шт.

20

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

21

A169173

PUMP

ASSEMBLY - fuel, electric

1шт.

22

222-2631

FITTING,17/32"-24 x 1/8" NPT Fem, Comp

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/8 inch PT, Includes: Ref. 23 and 24

1шт.

23

222-2611

SLEEVE

- 3/8 inch tube

1шт.

24

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

28

A176355

TUBE - tank to pump, 5-3/8 (137 mm) long (Order A167912 and, Serial Range: cut-length)

1шт.

29

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 degree, 1/4 inch PT

1шт.

30

222-2761

FITTING

TEE ASSEMBLY - hydraulic, 3/8 tube 17/32-24 thread x 1/4 PT, Includes: Ref. 31 and 32

1шт.

31

222-2611

SLEEVE

SLEEEVE - 3/8 inch tube

2шт.

32

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

2шт.

33

A63670

TUBE

- fuel, nylon 30 inch (762 mm) long

2шт.

38

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 39 and 40

1шт.

39

222-2611

SLEEVE

- 3/8 inch tube

1шт.

40

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

41

A177556

CHECK VALVE,1/4" NPT x 1/4" NPT

VALVE - check, fuel

1шт.

42

221-366

ELBOW UNION,45 Degree, 1/4" NPT

ELBOW - 45 degree, 1/4 inch PT

1шт.

43

222-2676

TEE,17/32"-24 x 1/4" NPT Br

ASSEMBLY - hydraulic, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 44 and 45

1шт.

44

222-2611

SLEEVE

- 3/8 inch tube

2шт.

45

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

2шт.

46

A67323

TUBE

- fuel, 132 inch (3 353 mm) long

1шт.

47

REF

INSTRUCTION

ELBOW - fuel line (See Ref 11, Figure 3-68)

1шт.

48

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - hex self tapping, 3/8 NC x 1 inch

1шт.

49

49845

CLAMP

CLIP - retainer, tube

1шт.

50

R38237

STRAP

- tie, nylon

3шт.

51

A181105

HOSE

- split, crossover sleeve

1шт.

52

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.
