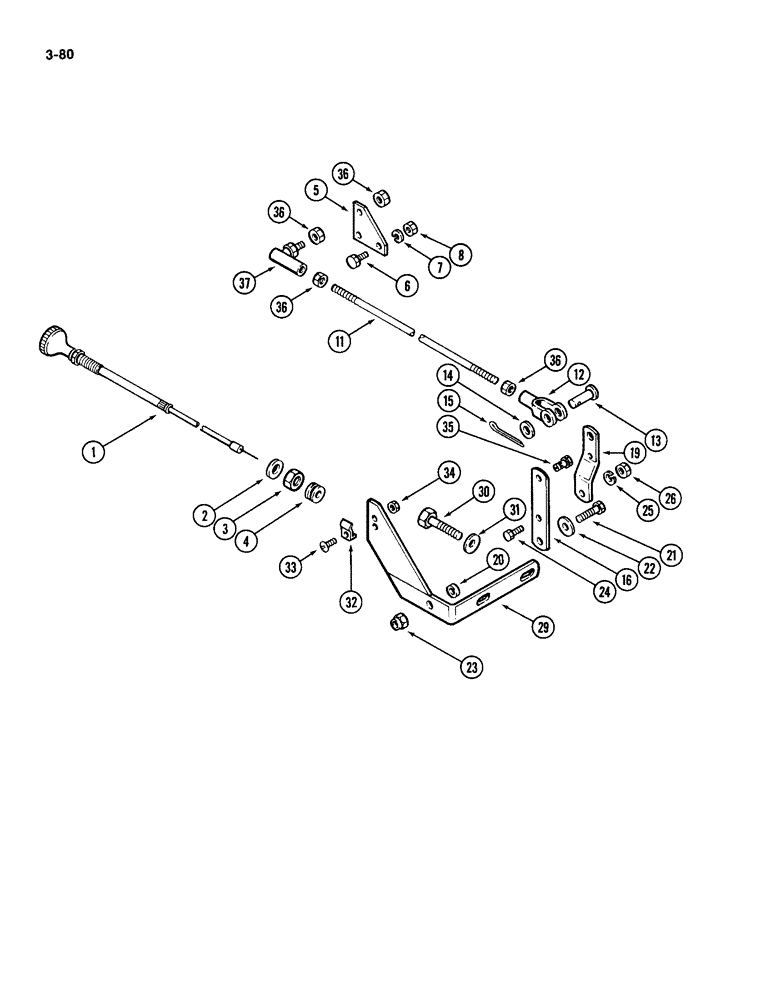

Запчасти Case IH 4994 (3-80) - ENGINE STOP CONTROL (03) - FUEL SYSTEM

1

A164280

CABLE

- fuel shutoff

1шт.

2

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

4

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- stop cable

1шт.

5

A163372

LEVER

- stop cable bellcrank

1шт.

6

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm

2шт.

7

892-1106

LOCK WASHER,M6

2шт.

8

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

2шт.

11

A163371

ROD

- stop cable

1шт.

12

H44198

YOKE

- stop cable rod

1шт.

13

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

14

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

1шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

16

A163376

STRAP

- stop pivot

1шт.

19

A163370

ARM ASSY.

BELLCRANK - stop cable

1шт.

20

A56472

SPACER

- bellcrank

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

22

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

1шт.

23

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8 inch NC

1шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

29

A163367

SUPPORT

- bellcrank

1шт.

30

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

31

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

2шт.

32

B51765

CLIP

- stop cable retaining

1шт.

33

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head slotted, No. 10-24 x 3/4 inch

1шт.

34

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24 inch

1шт.

35

A59101

PIVOT

STOP - cable pivot

1шт.

36

129-122

NUT,5/16"-24, G5

4шт.

37

A60604

BALL JOINT

FITTING - bellcrank

1шт.
