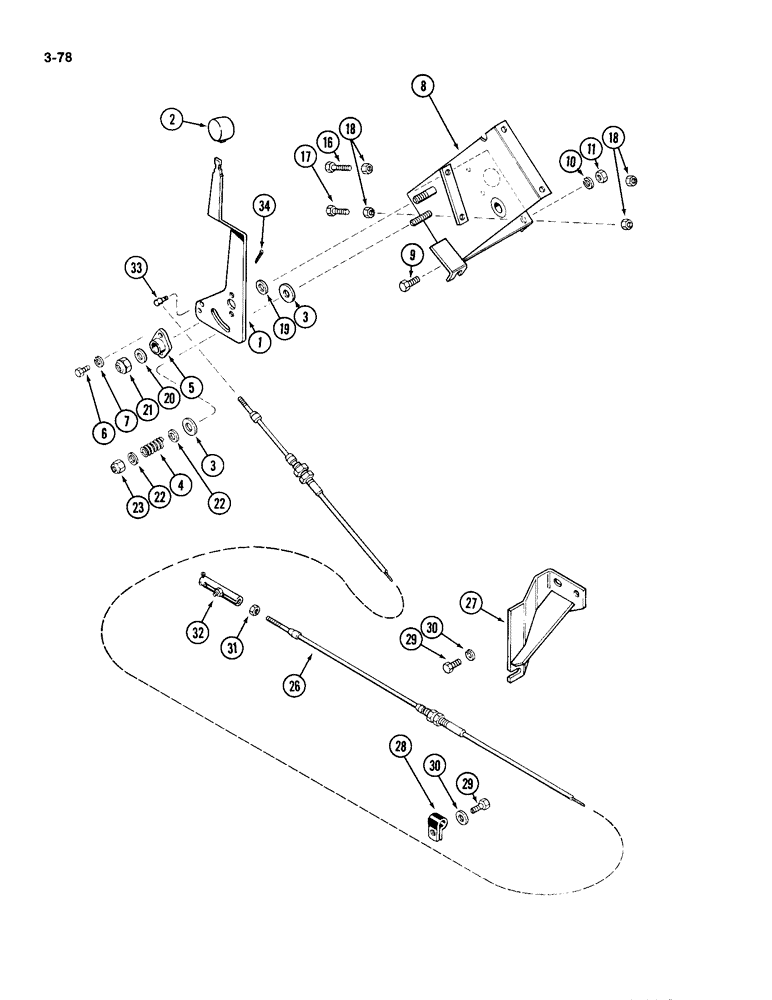

Запчасти Case IH 4994 (3-78) - THROTTLE CONTROL (03) - FUEL SYSTEM

1

A167292

THROTTLE

LEVER - throttle control

1шт.

2

A177436

KNOB

- control lever (Red) (Replaces A167956)

1шт.

3

A61069

DISC

- throttle lever friction

2шт.

4

A26546

SPRING

- friction disc

1шт.

5

A167680

CYLINDER END CAP

BEARING - throttle lever

1шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

A164115

BRACKET

- control

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

18

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

19

195-2069

WASHER,21/32" x 15/16" x .134"

- flat, 21/32 x 15/16 x 9/64 inch (17 x 24 x 4 mm)

1шт.

20

195-2258

WASHER,33/64" x 1.120" x .109"

- flat, 1/2 x 1-1/8 x 7/64 inch (13 x 29 x 3 mm)

1шт.

21

131-208

SPECIAL NUT,1/2"-13

NUT - lock, 1/2 inch NC

1шт.

22

195-2172

WASHER,7/16" x 1 1/4" x .083"

- flat, 7/16 x 1-1/4 x 5/64 inch (11 x 32 x 2 mm)

3шт.

23

131-52

NUT,3/8"-16, GC

NUT - stop lock, 3/8 inch NC

1шт.

26

A165475

THROTTLE

CABLE - throttle

1шт.

27

A176144

BRACKET

- throttle cable

1шт.

28

49832

CLAMP

- throttle cable

1шт.

29

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

30

892-1108

LOCK WASHER,M8

2шт.

31

129-37

NUT,#10-32

1шт.

32

A176195

BALL JOINT

ASSEMBLY - cable

1шт.

33

A177326

BALL JOINT

PIN - pivot, lever

1шт.

34

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.
