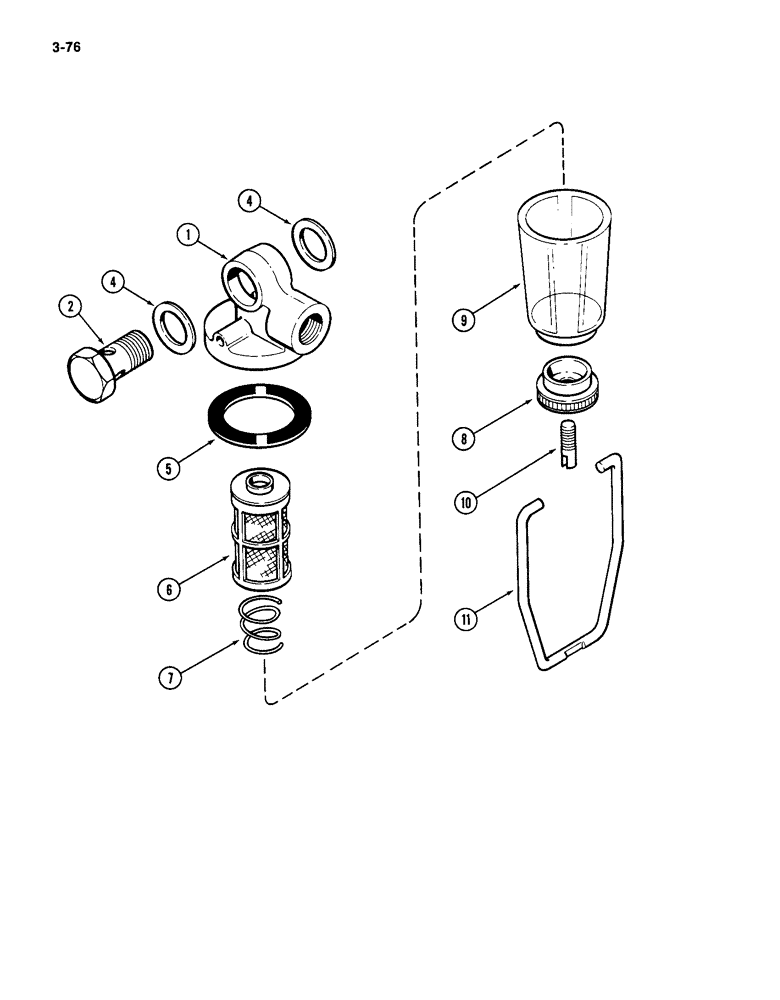

Запчасти Case IH 4994 (3-76) - PRIMARY FUEL FILTER (03) - FUEL SYSTEM

A46113

FILTER

ASSEMBLY - fuel, primary, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - filter (Reference No. A46114)

1шт.

2

A46115

HOLLOW SCREW

- filter mounting

1шт.

4

A46464

GASKET

WASHER - filter bolt

2шт.

A46466

KIT

REPAIR KIT - primary filter, Includes: Ref. 5 - 11

1шт.

5

A43346

GASKET

- filter cover

1шт.

6

A43344

FILTER, ELEMENT

ELEMENT - fuel filter

1шт.

7

A43345

SPRING

- element tension

1шт.

8

A43348

NUT

- pump bowl

1шт.

9

A43347

BOWL

- fuel sediment

1шт.

10

A43349

STUD

- bowl retaining

1шт.

11

A43350

CLAMP

BRACE - tension

1шт.
