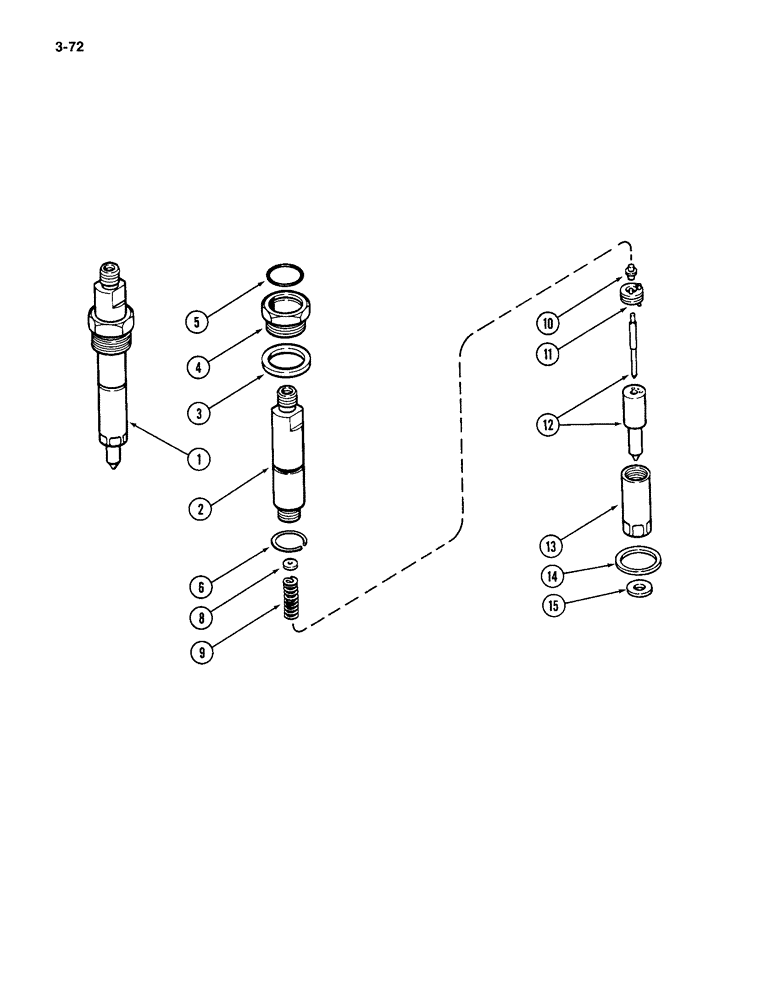

Запчасти Case IH 4994 (3-72) - FUEL INJECTION NOZZLE, 866 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A46676

INJECTOR ASSY.

NOZZLE ASSEMBLY - injector, Includes: Ref. 2 - 15

8шт.

2

A48621

NOZZLE HOLDER

HOLDER - nozzle

1шт.

3

A70761

RING

- stop (Reference No. A70761) (Replaces NSS)

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - sleeve (Reference No. A70760)

1шт.

5

A70763

O-RING

- sleeve nut (Reference No. A70763) (Replaces NSS)

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

8

A70770

SHIM,1.00mm Thk

Nozzle (Set of 5) 1.00mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.02 mm (Set of 5) (Reference No. A70771)

1шт.

8

A70772

SHIM,1.04mm Thk

Nozzle (Set of 5) 1.04mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.06 mm (Set of 5) (Reference No. A70773)

1шт.

8

A70774

SHIM,1.08mm Thk

Nozzle (Set of 5) 1.08mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.10 mm (Set of 5) (Reference No. A70775)

1шт.

8

A70776

SHIM,1.12mm Thk

Nozzle (Set of 5) 1.12mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.14 mm (Set of 5) (Reference No. A70777)

1шт.

8

A70778

SHIM,1.16mm Thk

Nozzle (Set of 5) 1.16mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.18 mm (Set of 5) (Reference No. A70779)

1шт.

8

A70780

SHIM,1.20mm Thk

Nozzle (Set of 5) 1.20mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.22 mm (Set of 5) (Reference No. A70781)

1шт.

8

A70782

SHIM,1.24mm Thk

Nozzle (Set of 5) 1.24mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.26 mm (Set of 5) (Reference No. A70783)

1шт.

8

A70784

SHIM,1.28mm Thk

Nozzle (Set of 5) 1.28mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.30 mm (Set of 5) (Reference No. A70785)

1шт.

8

A70786

SHIM,1.32mm Thk

. Nozzle (Set of 5) 1.32mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.34 mm (Set of 5) (Reference No. A70787)

1шт.

8

A70788

SHIM,1.36mm Thk

Nozzle (Set of 5) 1.36mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.38 mm (Set of 5) (Reference No. A70789)

1шт.

8

A70790

SHIM,1.40mm Thk

. Nozzle (Set of 5) 1.40mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.42 mm (Set of 5) (Reference No. A70791)

1шт.

8

A70792

SHIM,1.44mm Thk

Nozzle (Set of 5) 1.44mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.46 mm (Set of 5) (Reference No. A70793)

1шт.

8

A70794

SHIM,1.48mm Thk

Nozzle (Set of 5) 1.48mm Thk

1шт.

Ref #3 - A70761

1шт.

Ref #5 - A70763

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.50 mm (Set of 5) (Reference No. A70795)

1шт.

8

A70796

SHIM,1.52mm Thk

Nozzle (Set of 5) 1.52mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.54 mm (Set of 5) (Reference No. A70797)

1шт.

8

A70798

SHIM,1.56mm Thk

Nozzle (Set of 5) 1.56mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.58 mm (Set of 5) (Reference No. A70799)

1шт.

8

A70800

SHIM,1.60mm Thk

Nozzle (Set of 5) 1.60mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.62 mm (Set of 5) (Reference No. A70801)

1шт.

8

A70802

SHIM,1.64mm Thk

. Nozzle (Set of 5) 1.64mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.66 mm (Set of 5) (Reference No. A70803)

1шт.

8

A70804

SHIM,1.68mm Thk

Nozzle (Set of 5) 1.68mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.70 mm (Set of 5) (Reference No. A70805)

1шт.

8

A70806

SHIM,1.72mm Thk

Nozzle (Set of 5) 1.72mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.74 mm (Set of 5) (Reference No. A70807)

1шт.

8

A70808

SHIM,1.76mm Thk

Nozzle (Set of 5) 1.76mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.78 mm (Set of 5) (Reference No. A70809)

1шт.

8

A70810

SHIM,1.80mm Thk

Nozzle (Set of 5) 1.80mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.82 mm (Set of 5) (Reference No. A70811)

1шт.

8

A70812

SHIM,1.84mm Thk

Nozzle (Set of 5) 1.84mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.86 mm (Set of 5) (Reference No. A70813)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.88 mm (Set of 5) (Reference No. A70814)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.90 mm (Set of 5) (Reference No. A70815)

1шт.

8

A70816

SHIM,1.92mm Thk

Nozzle (Set of 5) 1.92mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.94 mm (Set of 5) (Reference No. A70817)

1шт.

8

A70818

SHIM,1.96mm Thk

Nozzle (Set of 5) 1.96mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.98 mm (Set of 5) (Reference No. A70819)

1шт.

9

A70758

SPRING

- nozzle (Reference No. A70758) (Replaces NSS)

1шт.

10

A70755

SPINDLE

- nozzle (Reference No. A70755) (Replaces NSS)

1шт.

11

A70762

SPACER

- nozzle (Referenc No. A70762) (Replaces NSS)

1шт.

12

A48542

NOZZLE INJECTION

NOZZLE - injector

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - retaining (Reference No. A70759)

1шт.

14

A46876

SEAL

WASHER - seal

1шт.

15

A46069

GASKET

- nozzle

1шт.
