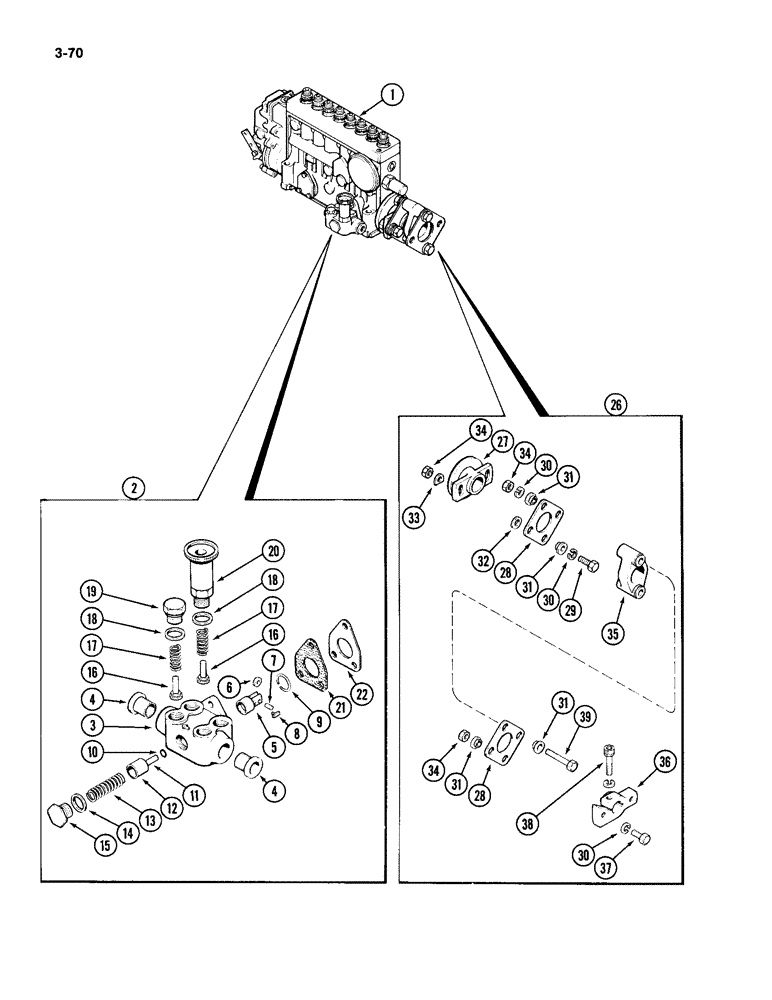

Запчасти Case IH 4994 (3-70) - FUEL INJECTION PUMP, 866 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A70822

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection

1шт.

2

A70750

PUMP, HYDRAULIC

PUMP ASSEMBLY - fuel transfer, Includes: Ref. 3 - 22

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - pump (Reference No. A70749)

1шт.

4

NSS

NOT SOLD SEPARAT

REDUCER - pump (Reference No. A70751)

2шт.

5

NSS

NOT SOLD SEPARAT

TAPPET - pump (Reference No. A46099)

1шт.

6

NSS

NOT SOLD SEPARAT

ROLLER - pin (Reference No. A70754)

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - roller (Reference No. A46107)

1шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - sliding (Reference No. A46108)

1шт.

9

NSS

NOT SOLD SEPARAT

RING - lock (Reference No. A46124)

1шт.

10

NSS

NOT SOLD SEPARAT

RING - sealing (Reference No. A46095)

1шт.

11

NSS

NOT SOLD SEPARAT

SPINDLE - pressure (Reference No. A46101)

1шт.

12

NSS

NOT SOLD SEPARAT

PLUNGER - pump (Reference No. A70752)

2шт.

13

NSS

NOT SOLD SEPARAT

SPRING - plunger (Reference No. A70753)

1шт.

14

A46104

GASKET

- plug

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - plunger spring (Reference No. A46103)

1шт.

16

A46109

VALVE

- pump

4шт.

17

A46110

SPRING

- valve

4шт.

18

A43351

SEAL

GASKET - plug and hand pump

4шт.

19

NSS

NOT SOLD SEPARAT

PLUG - valve spring (Reference No. A46111)

3шт.

20

A43343

CARTRIDGE

PUMP - fuel primer hand

1шт.

21

A46322

GASKET

- primer pump

1шт.

22

A70757

PLATE - primer pump

1шт.

26

NSS

NOT SOLD SEPARAT

COUPLING ASSEMBLY - pump drive (Reference No. A70726), Includes: Ref. 27 - 39

1шт.

27

A70730

COUPLING

ASSEMBLY - half, pump shaft

1шт.

28

A70728

DISC

- coupling

12шт.

29

A70731

BOLT

- disc to coupling (Replaces A70733)

2шт.

30

A70736

LOCK WASHER

- lock

6шт.

31

A70735

BUSHING

- bolt

8шт.

32

A70737

WASHER

- flat

2шт.

33

A70738

WASHER

PLATE - washer

2шт.

34

A70739

NUT

- retaining

4шт.

35

A70729

DRIVE

R - coupling

1шт.

36

A70727

COUPLING

- half, drive shaft

1шт.

37

A70732

BOLT

-, Serial Range: disc-coupling

2шт.

38

A70734

HEX SOC SCREW,Spcl

BOLT - coupling

1шт.

39

A70733

BOLT

- disc to driver (Replaces A70731)

2шт.

A46465

KIT

- primer pump repair (Includes item 14 and 16 - 18)

2шт.
