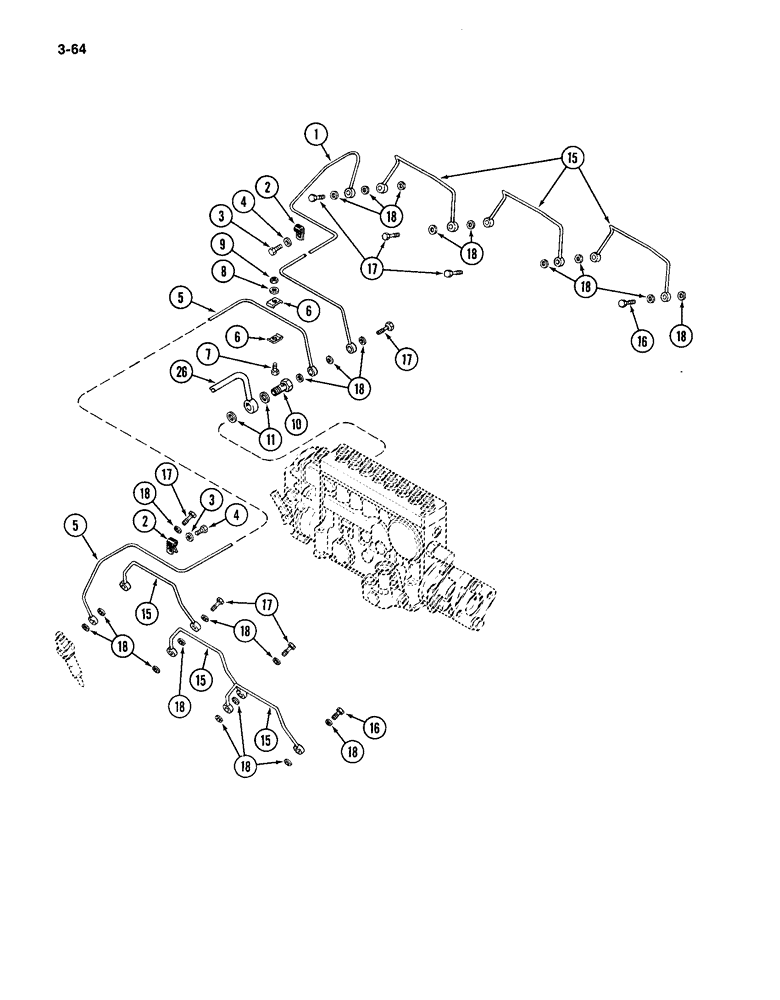

Запчасти Case IH 4994 (3-64) - RETURN FUEL LINES, 866 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A48576

TUBE

- fuel return

1шт.

2

A46704

CLIP

- tube retaining

2шт.

3

814-5014

BOLT,Hex, M5 x 0.8 x 14mm, Cl 8.8, Full Thd

- hex, M5 x 14 mm

2шт.

4

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch (6 x 13 x 2 mm)

2шт.

5

A48575

TUBE

- fuel return

1шт.

6

A46222

CLAMP

- injection tube

2шт.

7

814-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

- hex, M5 x 16 mm

1шт.

8

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch (6 x 13 x 2 mm)

1шт.

9

825-1105

NUT,M5, Cl 8

- hex, M5

1шт.

10

A46066

BANJO BOLT

- fuel line to injection pump

1шт.

11

A46379

WASHER

- injector nozzles

3шт.

15

A48566

TUBE

- fuel return

6шт.

16

A46058

BANJO BOLT

- fuel return tube

2шт.

17

A46060

BANJO BOLT

- fuel return tube

6шт.

18

A46379

WASHER

- injection nozzle

22шт.

26

REF

INSTRUCTION

TUBE - fuel injection (See Ref 13, Figure 3-62)

1шт.
