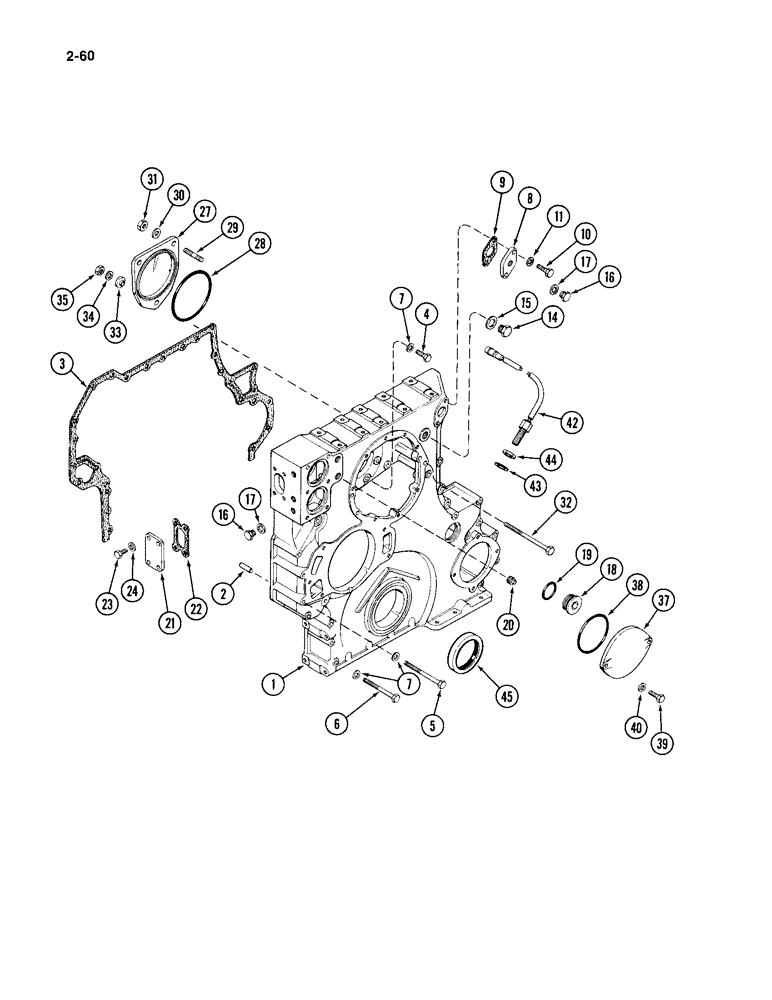

Запчасти Case IH 4994 (2-60) - TIMING GEAR COVER, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A48570
COVER
- timing gear
1шт.
2
A46655
PIN
- cover guide
2шт.
3
A46794
GASKET
- cover, timing gear
1шт.
4
814-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
3шт.
5
A46767
BOLT,Hex, M10 x 1.5 x 165mm, Cl 8.8
BOLT - hex, M10 x 165 mm
16шт.
6
814-10110
BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8
5шт.
7
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
24шт.
8
A46843
COVER
- tachometer drive
1шт.
9
A46811
GASKET
- cover
1шт.
10
814-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
2шт.
11
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
2шт.
14
A46512
PLUG
- tachometer drive
1шт.
15
A46514
GASKET
- plug
1шт.
16
A46469
PLUG
- water drain
4шт.
17
A45766
GASKET
- plug
4шт.
18
A45818
PLUG
- cylinder block
1шт.
19
A45845
O-RING,45.8 mm ID x 49 mm OD
- plug
1шт.
20
A45765
PLUG
- cover
2шт.
21
A45584
COVER
- side
1шт.
22
A48571
GASKET
- side cover
1шт.
23
814-2080
BOLT - hex, M8 x 20 mm
4шт.
24
195-103
WASHER,5/16"
- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)
4шт.
27
A46732
COVER
- blind
1шт.
28
A46689
O-RING,114.5 mm ID x 120.5 mm OD
- pump to cover
1шт.
29
A46637
STUD
- cover mounting, M14 x 50 mm
2шт.
30
A46179
WASHER
- cover mounting
2шт.
31
A46665
THIN NUT
- cover mounting
2шт.
32
814-10140
BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8
1шт.
33
A46841
WASHER
- guide
1шт.
34
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
1шт.
35
825-1010
NUT,M10, Cl 8
- hex, M10
1шт.
37
A45869
COVER
- blind
1шт.
38
A46178
O-RING,99.5 mm ID x 3mm
- cover
1шт.
39
814-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
2шт.
40
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
2шт.
42
A176438
GAUGE
SENSOR - magnetic RPM
1шт.
43
A7478
GASKET
WASHER - magnetic sensor, copper
1шт.
44
525-5110
NUT,M18 x 1.5, Cl 8
- hex, M18
1шт.
45
A48640
SEALING RING
- oil, crankshaft
1шт.
Выбрано товаров: 39
