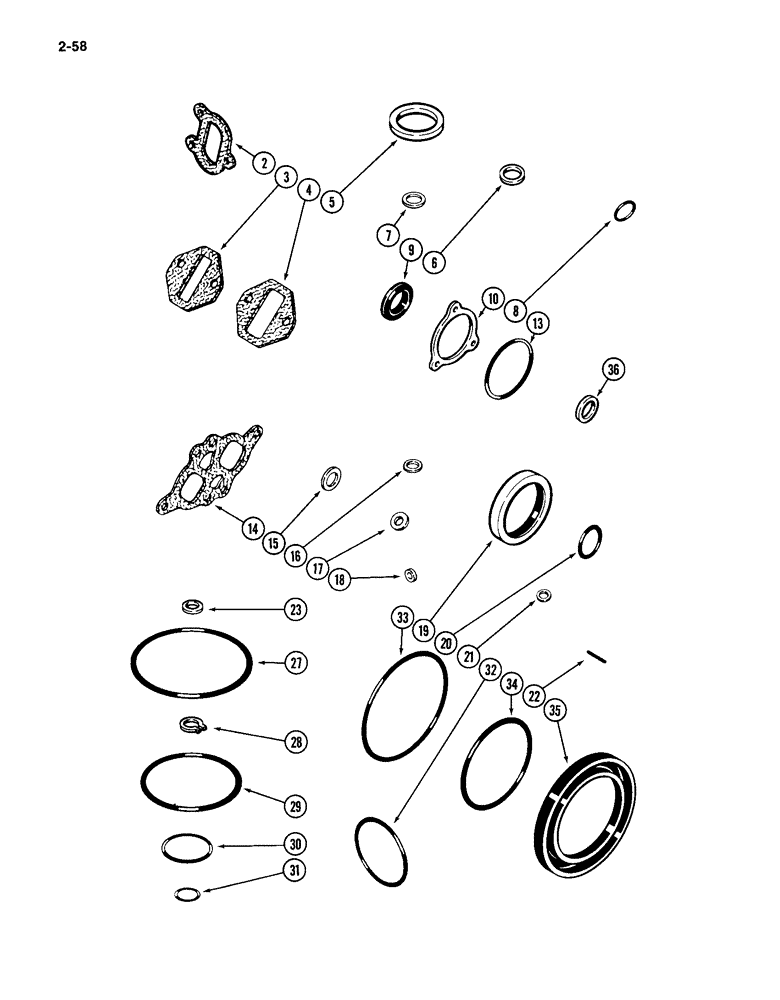

Запчасти Case IH 4994 (2-58) - GASKET KIT, 866 CUBIC INCH DIESEL ENGINE, COMPLETE ENGINE OVERHAUL (CONTINUED) (02) - ENGINE

A70612

GASKET

KIT - complete overhaul (Continued from Figure 2-56), includes all parts listed below

1шт.

2

A46815

GASKET

- dipstick flange

1шт.

3

A48632

GASKET

- water tube

8шт.

4

A70925

GASKET

- intake manifold

8шт.

5

A46876

SEAL

RING - fuel pump mounting

8шт.

6

A46323

WASHER

GASKET - oil tube

3шт.

7

A45850

GASKET

GASKET - crankcase plug

2шт.

8

A48654

O-RING,26.2 mm ID x 32.2 mm OD

- turbocharger return tube

1шт.

9

A48567

OIL SEAL

SEAL - timing gear

1шт.

10

A48562

GASKET

- cover to timing gear bearing housing

1шт.

13

A46687

O-RING,74.3 mm ID x 80.5 mm OD

- bearing housing

1шт.

14

A48529

MANIFOLD GASKET

- exhaust manifold

2шт.

15

A46514

GASKET

- timing gear plug

1шт.

16

A46440

RING

GASKET - oil return plug

3шт.

17

A46878

GASKET

- cylinder head cover

8шт.

18

A46379

WASHER

GASKET - fuel tube

25шт.

19

A48640

SEALING RING

- crankshaft

1шт.

20

A45845

O-RING,45.8 mm ID x 49 mm OD

- timing gear cover plug

1шт.

21

A46832

RING

GASKET - lock plug seal

1шт.

22

A70885

O-RING,22.2 mm ID

- oil pump

3шт.

23

A48503

O-RING

GASKET - oil filter lock nut

1шт.

27

A45992

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

- oil filter cover

1шт.

28

A45987

RING

- cover locknut retaining

1шт.

29

A48515

O-RING

- oil filter rotor cover

1шт.

30

A70919

O-RING,2.362" ID x 2.568" OD

- oil filter, M59

1шт.

31

A70916

O-RING,26 mm ID

- oil filter, M26

1шт.

32

A46688

O-RING

- manifold to thermostat housing

1шт.

33

A70926

O-RING,149.3 mm ID x 160.7 mm OD

- water pump to cover

1шт.

34

A46689

O-RING,114.5 mm ID x 120.5 mm OD

- compressor cover

1шт.

35

A46858

OIL SEAL

SEAL - flywheel housing oil

1шт.

36

A48502

GASKET

- oil cooler

4шт.

A46209

GASKET

- oil return (Not used this application)

30шт.
