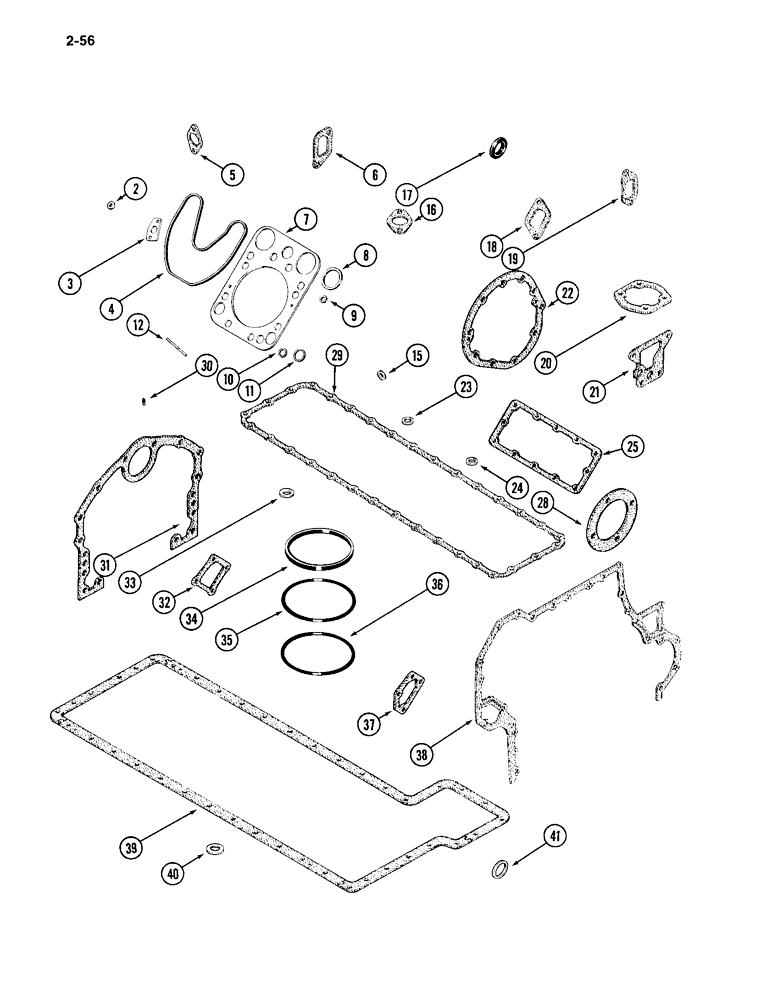

Запчасти Case IH 4994 (2-56) - GASKET KIT, 866 CUBIC INCH DIESEL ENGINE, COMPLETE ENGINE OVERHAUL (02) - ENGINE

A70612

GASKET

KIT - complete overhaul, includes all parts listed below

1шт.

2

A46069

GASKET

- injection nozzle

8шт.

3

NLS

NO LONGER SERVICED

- bearing, Serial Range: bracket-head

16шт.

4

A46777

GASKET

- cylinder head cover

8шт.

5

A46796

GASKET

- suction tube flange

1шт.

6

A46761

GASKET

- water tube flange

1шт.

7

A46750

GASKET

- cylinder head

8шт.

8

A48559

OIL SEAL

O-RING - valve actuating

16шт.

9

A48672

RING

SEAL - cylinder head gasket

16шт.

10

A48673

RING

SEAL - cylinder head gasket

8шт.

11

A48674

OIL SEAL

SEAL - cylinder head gasket

24шт.

12

A46778

GASKET

- side cover

8шт.

15

A45731

GASKET

- lubrication tube

12шт.

16

A46804

GASKET

- return line flange

1шт.

17

A45946

SEAL

- injection pump drive

1шт.

18

A46760

MANIFOLD GASKET

- exhaust manifold

8шт.

19

A46785

GASKET

- water, Serial Range: pump-cover

1шт.

20

A45976

GASKET

- oil filter housing

1шт.

21

A46798

GASKET

- oil filter mounting

1шт.

22

A46797

GASKET

- fan housing bearing

1шт.

23

A46806

GASKET

- connector bottom

2шт.

24

A45852

GASKET

- block plug

2шт.

25

A46788

GASKET

- side cover

2шт.

28

A46764

GASKET

- hydraulic pump cover

1шт.

29

A46792

GASKET

- cover plate

1шт.

30

A46167

O-RING,9 mm ID x 15 mm OD

- oil dipstick

1шт.

31

A46793

GASKET

- flywheel housing

1шт.

32

A46818

GASKET

- breather housing

1шт.

33

A46807

GASKET

- connector bottom

6шт.

34

A46816

RING

O-RING - cylinder sleeve

8шт.

35

A48610

O-RING,139.5 mm ID x 147.5 mm OD

SEAL - center ring

8шт.

Ref #35 Seals have been dropped from A70612 Kit

1шт.

36

A48611

GASKET

RING - sleeve lower sealing

8шт.

Ref #36 Rings have been increased from 8 to 16

1шт.

37

A46789

GASKET

- front cover

4шт.

38

A46794

GASKET

- timing gear cover

1шт.

39

A46790

GASKET

- oil pan

1шт.

40

A45885

GASKET

- drain plug

1шт.

41

A46769

GASKET

- front oil pan plug

1шт.

A46509

GASKET

- connector (Not used this application)

1шт.

A47588

ELEC CONNECTOR

GASKET - intake manifold (Not use this application)

4шт.

A46399

GASKET

- oil filler cap (Not used this application)

1шт.
