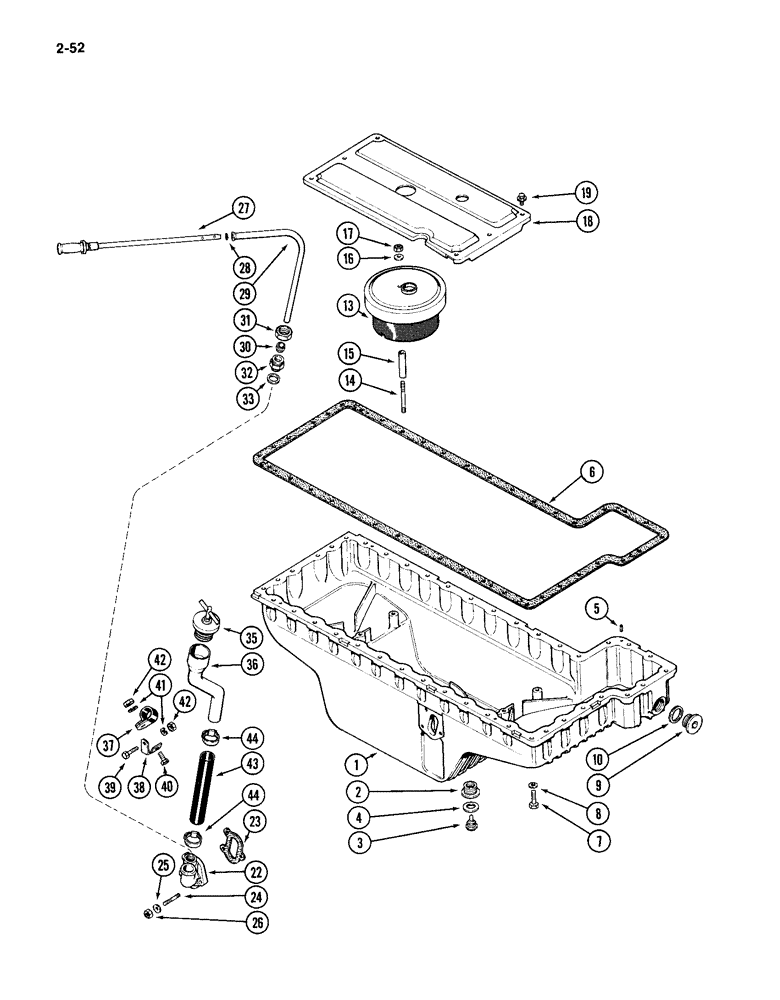

Запчасти Case IH 4994 (2-52) - OIL PAN FILLER TUBE AND DIPSTICK, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A46632
PAN
ASSEMBLY - oil, Includes: Ref. 2
1шт.
2
A45884
BUSHING
- drain plug
1шт.
3
A46202
PLUG
- oil drain
1шт.
4
A45885
GASKET
- drain plug
1шт.
5
A45789
PIN
- oil pan guide
4шт.
6
A46790
GASKET
- oil pan
1шт.
7
813-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
- hex, M10 x 35 mm
40шт.
8
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
40шт.
9
A46765
PLUG
- bushing insert
1шт.
10
A46769
GASKET
- bushing insert
1шт.
13
A46759
SCREEN
- oil
1шт.
14
A46204
STUD
- screen retaining
1шт.
15
A46205
BUSHING
SPACER - oil screen
1шт.
16
195-103
WASHER,5/16"
- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)
1шт.
17
825-1008
NUT,M8, Cl 8
- hex, M8
1шт.
18
A48495
PLATE
- baffle
1шт.
19
A46700
FLANGE BOLT,Tapping, Hex, M8 x 16mm
BOLT - baffle plate retaining
6шт.
22
A48476
HOUSING
- dipstick
1шт.
23
A46815
GASKET
- housing
1шт.
24
A46638
STUD
- housing retaining, M10 x 50 mm
3шт.
25
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
3шт.
26
825-1010
NUT,M10, Cl 8
- hex, M10
3шт.
27
A46833
DIPSTICK
- oil
1шт.
28
A46167
O-RING,9 mm ID x 15 mm OD
- dipstick
1шт.
29
A46834
PIPE
TUBE - dipstick
1шт.
30
A46621
SLEEVE
- dipstick tube
1шт.
31
A46620
TUBE NUT
- dipstick tube
1шт.
32
A46619
FITTING
CONNECTOR - dipstick tube
1шт.
33
A46323
WASHER
GASKET - connector
1шт.
36
A169869
TUBE
- engine oil filler
1шт.
37
S15544
CLAMP,1 5/16", Insul, 3/8" Bolt
- retaining
1шт.
38
A166763
CLIP
- retaining clamp
1шт.
39
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
40
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
41
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
42
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
43
A166785
HOSE - oil filler tube (Order L76902, cut to desired length)
1шт.
44
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
retaining #28, 1.31/2.25 Type F Worm
2шт.
Выбрано товаров: 39
