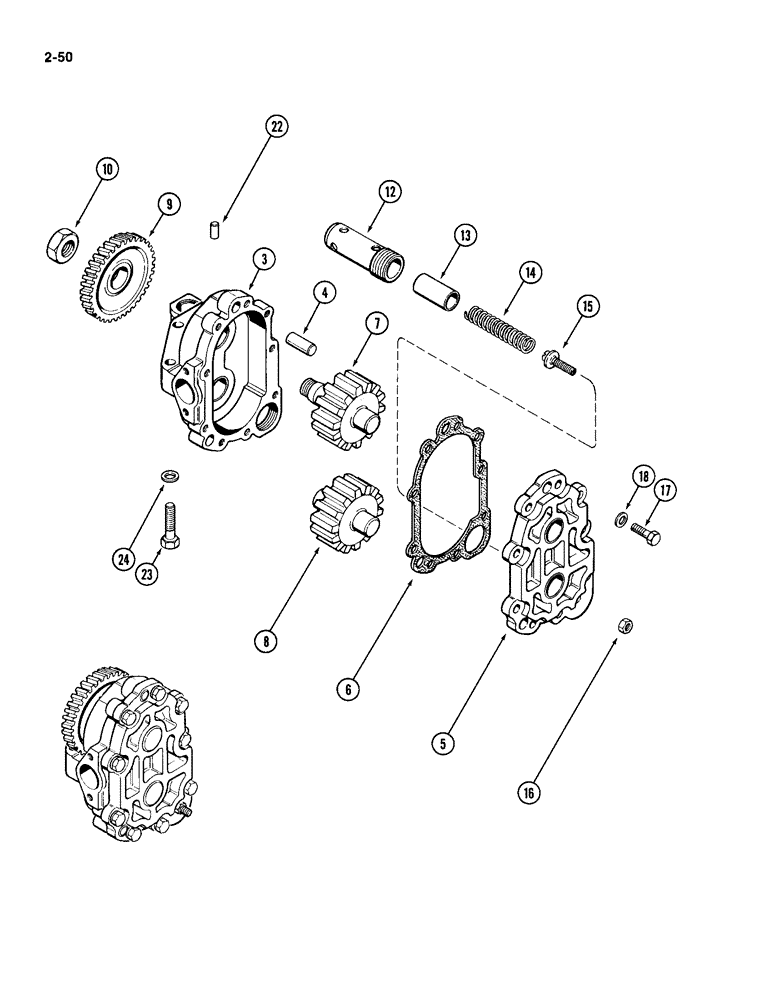

Запчасти Case IH 4994 (2-50) - OIL PUMP, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A48481

PUMP

ASSEMBLY - oil, Includes: Ref. 3 - 18

1шт.

A48482

HOUSING

- oil pump, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - oil pump (Reference No. A46645)

1шт.

4

A46655

PIN

- housing to cover guide

2шт.

5

NSS

NOT SOLD SEPARAT

COVER - housing (Reference No. A46646)

1шт.

6

A46865

GASKET

-, Serial Range: cover-housing

1шт.

7

A46862

GEAR

- pump shaft, 14 teeth

1шт.

8

A46863

GEAR

- pump, 14 teeth

1шт.

9

A46864

GEAR

- pump drive, 39 teeth

1шт.

10

A45962

NUT

- drive gear retaining

1шт.

12

A48473

CAP

- valve sleeve

1шт.

13

A48474

PLUNGER

- piston

1шт.

14

A48579

SPRING

- compression

1шт.

15

A48475

ADJUSTMENT SCREW,M8 x 1.25 x 39mm

BOLT - adjusting, M8 x 1.25

1шт.

16

825-1008

NUT,M8, Cl 8

- hex, M8

1шт.

17

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm

9шт.

18

A46729

WASHER

- cover to housing retaining

9шт.

22

A45969

PIN

- dowel

2шт.

23

A46835

BOLT

- pump mounting, M10 x 40 mm

3шт.

24

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

3шт.
