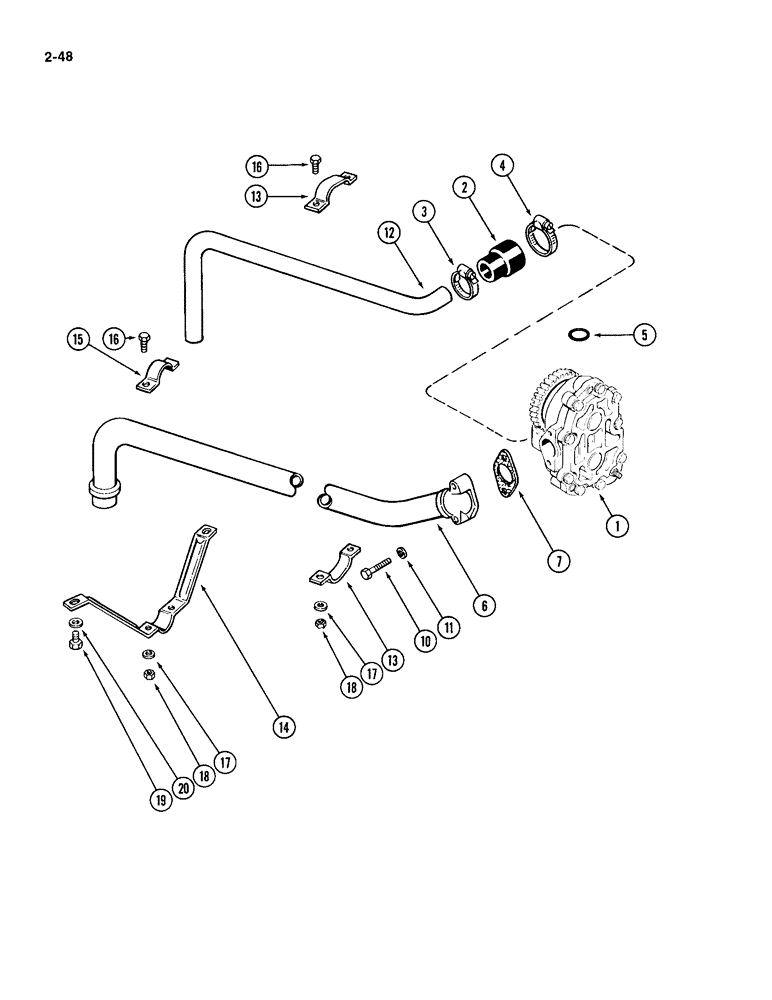

Запчасти Case IH 4994 (2-48) - OIL PUMP LUBE SYSTEM, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - oil (See Figure 2-51)

1шт.

2

A70927

HOSE

- oil return

1шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose retaining

1шт.

4

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

retaining #28, 1.31/2.25 Type F Worm

1шт.

5

A70885

O-RING,22.2 mm ID

- oil pump

1шт.

6

A46820

TUBE

- oil suction

1шт.

7

A46796

GASKET

- suction tube

1шт.

10

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

11

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

12

A46755

TUBE

- oil return

1шт.

13

A46756

CLAMP

- tube retaining

4шт.

14

A46757

FRAME

BRACKET - tube retaining

1шт.

15

A46758

CLAMP

- tube retaining

1шт.

16

814-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

- hex, M6 x 14 mm

6шт.

17

195-515

WASHER,#12

- flat, 1/4 x 1/2 x 3/64 inch (6 x 13 x 1 mm)

6шт.

18

825-1006

NUT,M6, Cl 8

- hex, M6

6шт.

19

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex M8 x 16 mm, Grade 8

2шт.

20

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.
