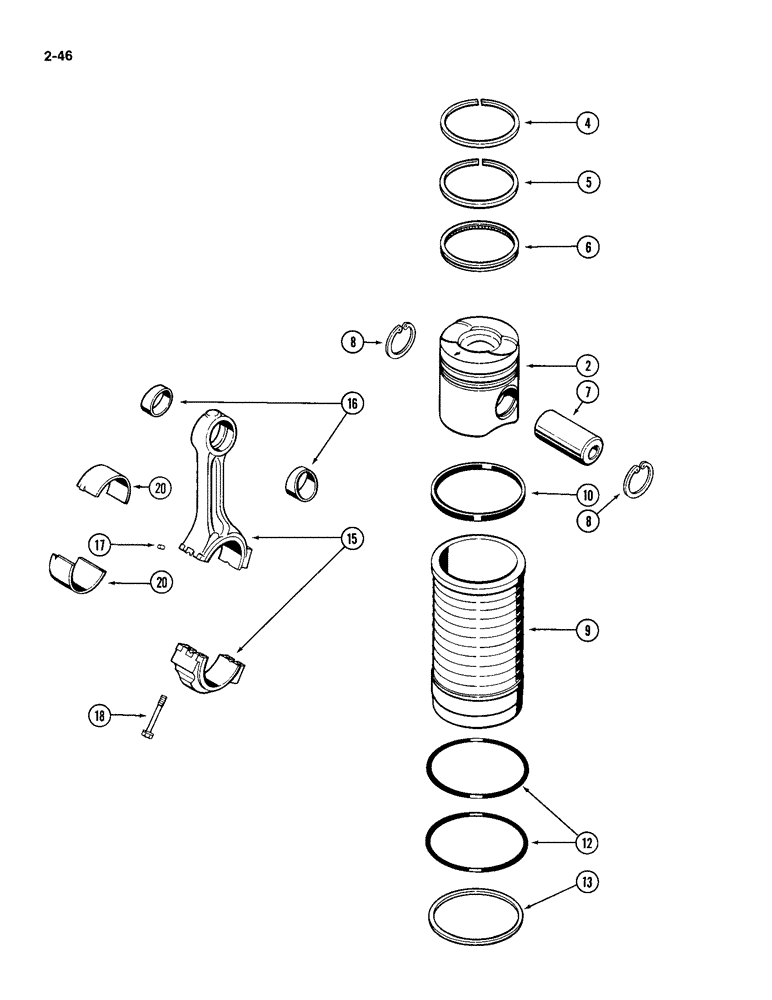

Запчасти Case IH 4994 (2-46) - PISTONS AND RINGS, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A70721

PISTON

ASSEMBLY - engine, Includes: Ref. 2 - 8

8шт.

2

NSS

NOT SOLD SEPARAT

PISTON - engine (Reference No. A70720)

1шт.

A70646

RING

KIT - piston, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - piston, top groove (Reference No. A45890)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - piston, second groove (Reference No. A45891)

1шт.

6

NSS

NOT SOLD SEPARAT

RING - piston, oil control (Reference No. A45892)

1шт.

7

A46297

PIN

- piston

1шт.

8

A46174

SNAP RING,M50, Int

RING - piston pin retaining

2шт.

9

A48518

SLEEVE CYLINDER

SLEEVE - cylinder

8шт.

10

A46816

RING

- sealing, uppper

8шт.

12

A48611

GASKET

RING - sealing, lower

16шт.

13

A48704

SHIM,0.20mm Thk

Cylinder sleeve (Set of 10) 0.20mm Thk

1шт.

13

A48705

SHIM,0.25mm Thk

Cylinder sleeve (Set of 10) 0.25mm Thk

1шт.

13

A48706

SHIM,0.30mm Thk

Cylinder sleeve (Set of 10) 0.30mm Thk

1шт.

13

A48707

BLOCK

SHIM - cylinder sleeve, 0.50 mm (Set of 10)

1шт.

13

A48708

BLOCK

SHIM - cylinder sleeve, 0.75 mm (Set of 10)

1шт.

15

A70626

ROD

ASSEMBLY - connecting ("A" stamped on bearing cap), Includes: Ref. 16 - 18

8шт.

15

A48601

CONNECTING ROD

ROD ASSEMBLY - connecting ("B" stamped on bearing cap), Includes: Ref. 16 - 18

8шт.

15

A70627

ROD

ASSEMBLY - connecting ("C" stamped on bearing cap), Includes: Ref. 16 - 18

8шт.

16

A45896

BEARING

BUSHING - connecting rod

2шт.

17

A45898

PIN

- dowel

2шт.

18

A45897

BOLT

- cap retaining

4шт.

20

A70869

BEARING

INSERT KIT - connecting rod bearing, standard

8шт.

20

A70863

BEARING LINER

INSERT KIT - connecting rod bearing, 0.25 mm undersize

8шт.

20

A70864

BEARING SET

INSERT KIT - connecting rod bearing, 0.50 mm undersize

8шт.

20

A70865

BEARING LINER

INSERT KIT - connecting rod bearing, 0.75 mm undersize

8шт.

20

A70866

BEARING LINER

INSERT KIT - connecting rod bearing, 1.00 mm undersize

8шт.

20

A70867

BEARING

INSERT KIT - connecting rod bearing, 1.25 mm undersize

8шт.

20

A70868

BEARING SET

INSERT KIT - connecting rod bearing, 1.50 mm undersize

8шт.
