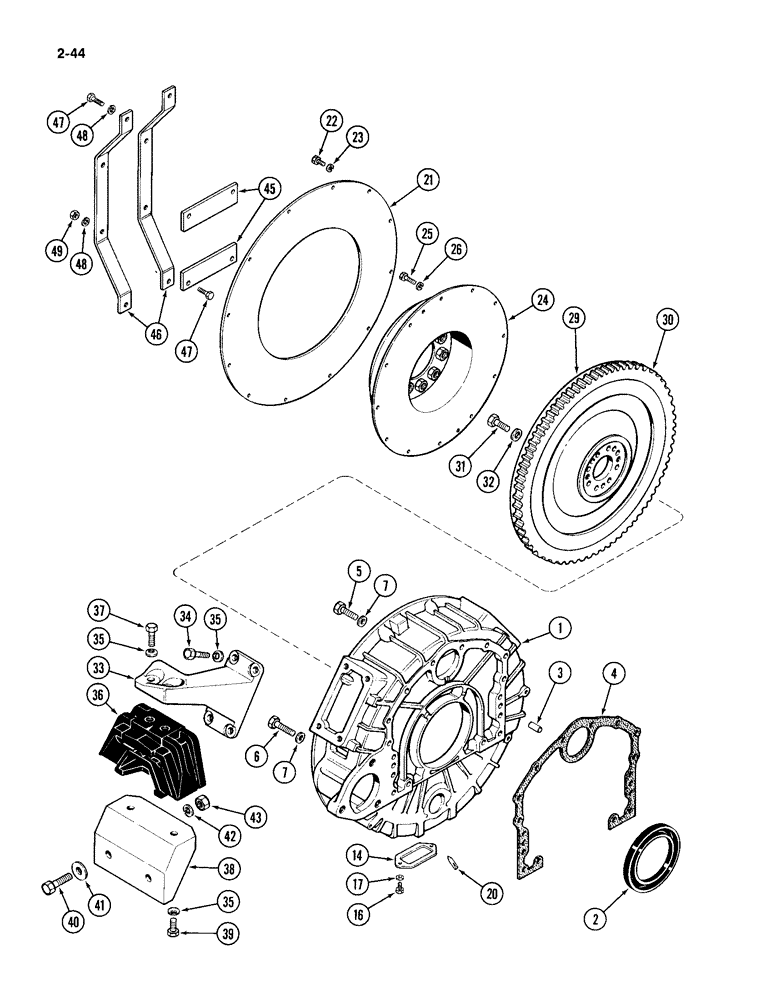

Запчасти Case IH 4994 (2-44) - FLYWHEEL AND HOUSING, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A70682

HOUSING ASSY.

HOUSING - flywheel

1шт.

Engine serial no. 5519279 and after.

1шт.

1

A48597

HOUSING

- flywheel

1шт.

Prior to engine serial no. 5519278.

1шт.

For repairs order 1 each of A70682 housing, A70683 pin, A70678 tube, A70677 clamp, 813-10020 bolt, and 195-525 washer.

1шт.

2

A46858

OIL SEAL

SEAL - oil

1шт.

3

A46655

PIN

- guide, housing

2шт.

4

A46793

GASKET

- housing

1шт.

5

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, M12 x 45 mm

8шт.

6

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

- hex, M12 x 55 mm

8шт.

7

A46728

WASHER

- retaining bolt

16шт.

14

A46718

COVER

- bottom

1шт.

16

814-8014

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, M8 x 14 mm

2шт.

17

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

20

A70683

PIN

- pointer timing

1шт.

Engine serial no. 5519279 and after.

1шт.

20

A48605

PIN

- pointer timing

2шт.

Prior to engine serial no. 5519278.

1шт.

21

A158024

COVER

- flywheel housing

1шт.

22

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

23

892-1110

LOCK WASHER,M10

WASHER - lock, M10

12шт.

24

A159451

COUPLING

- flex

1шт.

25

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm, Grade 8

12шт.

26

892-1110

LOCK WASHER,M10

WASHER - lock, M10

12шт.

29

A48628

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 30

1шт.

30

A48568

GEAR

- ring

1шт.

31

A48586

SCREW,Hex, M16 x 2 x 40mm

BOLT - hex, M16 x 40 mm

8шт.

32

A48531

WASHER

- flywheel bolt

1шт.

33

A48580

BRACKET

- engine support, left rear

1шт.

33

A48581

BRACKET

- engine support, right rear

1шт.

34

A46827

SCREW,Hex, M14 x 2 x 40mm

BOLT - bracket retaining

8шт.

35

A46868

WASHER

- retaining bolt

16шт.

36

A48670

ANCHOR

MOUNT - engine, rear

2шт.

37

A46674

SCREW,Hex, M14 x 2 x 45mm

BOLT - mount to bracket, M14 x 45 mm

4шт.

38

A176366

SUPPORT

- engine rear

2шт.

39

814-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

- hex, M14 x 30 mm

4шт.

40

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

8шт.

41

NLS

NO LONGER SERVICED

- support bolt

4шт.

41

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - support, hardened

4шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

43

129-107

NUT,5/8"-11, G5

8шт.

45

A181033

LARGE PLATE

PLATE - guard

2шт.

46

A181054

STRAP

- guard

2шт.

47

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

48

892-1110

LOCK WASHER,M10

WASHER - lock, M10

8шт.

49

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

4шт.
