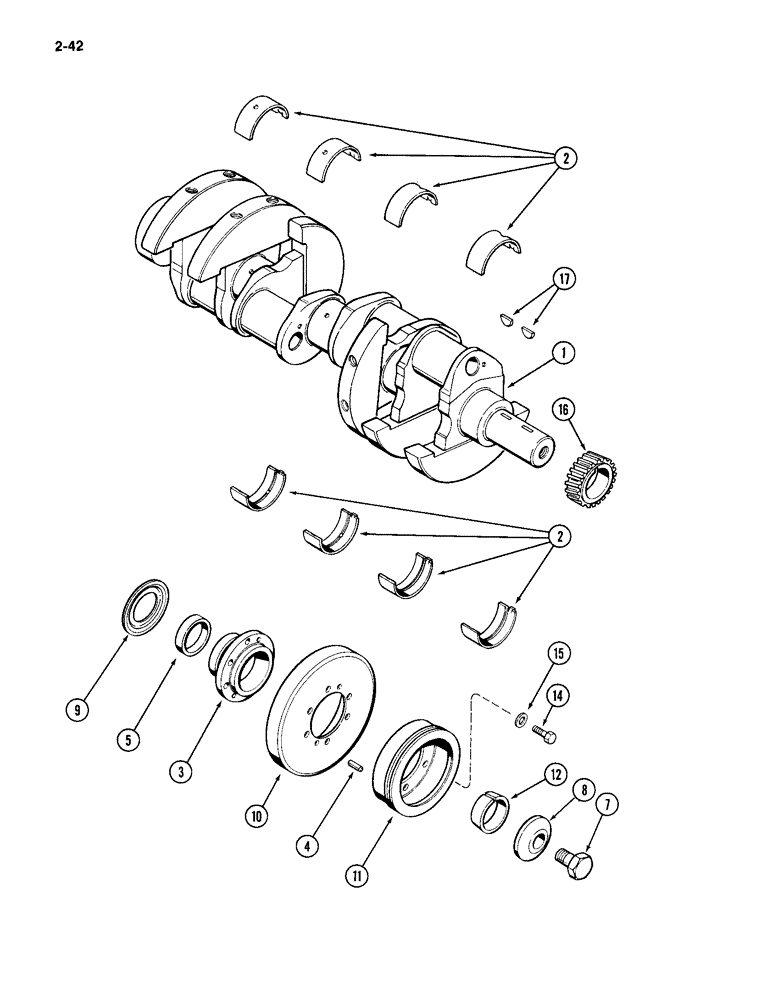

Запчасти Case IH 4994 (2-42) - CRANKSHAFT, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A48618

CRANKSHAFT

- engine

1шт.

A70844

BOLT

- crankshaft weight retaining (Not shown)

12шт.

For repairs only. Bolts are to be replaced when crankshaft needs service grinding.

1шт.

2

A46754

BEARING LINER

INSERT - main bearing, standard

10шт.

2

A70640

BEARING LINER

INSERT - main bearing, 0.25 mm undersize

10шт.

2

A70641

BEARING

INSERT - main bearing, 0.50 mm undersize

10шт.

2

A70642

BEARING

INSERT - main bearing, 0.75 mm undersize

10шт.

2

A70643

BEARING

INSERT - main bearing, 1.00 mm undersize

10шт.

2

A70644

BEARING LINER

INSERT - main bearing, 1.25 mm undersize

10шт.

2

A70645

BEARING

INSERT - main bearing, 1.50 mm undersize

10шт.

3

A48619

HUB

- vibration damper mounting

1шт.

4

A45921

PIN

- guide

2шт.

5

A46799

SPACER

- vibration damper

1шт.

7

A70913

SCREW,Hex, M26 x 1.5 x 44mm

BOLT - damper to crankshaft (Also order Ref 8)

1шт.

8

A70912

WASHER

- damper bolt

1шт.

9

A70744

DEFLECTOR

- damper hub

1шт.

10

A48555

DAMPER

- vibration

1шт.

11

A45893

PULLEY

- crankshaft

1шт.

12

A45916

CONE

RING - expanding cone

1шт.

14

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, M12 x 35 mm

6шт.

15

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 7/64 inch (13 x 27 x 3 mm)

6шт.

16

A48489

DRIVE SPROCKET

GEAR - crankshaft

1шт.

17

A46182

KEY

- crankshaft gear

1шт.
