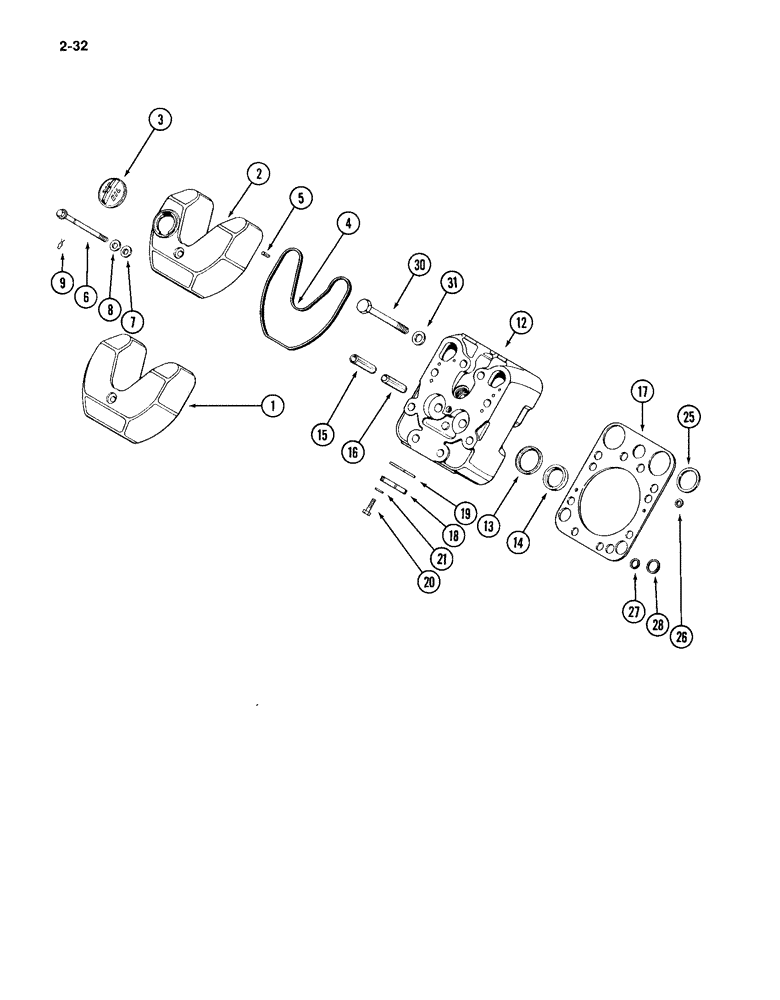

Запчасти Case IH 4994 (2-32) - CYLINDER HEAD AND COVER, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46776

COVER

- cylinder head

7шт.

2

A48607

COVER

- cylinder head, oil filler

1шт.

3

A48649

COVER

CAP - oil filler

1шт.

4

A46777

GASKET

- cylinder head cover

8шт.

5

A46659

PIN

- cover locating

16шт.

6

A46810

SCREW,Hex Flg, M10 x 107mm

BOLT - cover mounting

8шт.

7

A46878

GASKET

- cover mounting bolt

8шт.

8

A46877

WASHER

- cover mounting bolt

8шт.

9

A46836

SPLIT PIN

PIN - mounting bolt hair

8шт.

12

A48510

HEAD

ASSEMBLY - cylinder, Includes: Ref. 13 - 16

8шт.

13

A46417

SEAT

- intake valve

1шт.

14

A45705

VALVE SEAT

SEAT - exhaust valve

1шт.

15

A46560

VALVE

GUIDE - intake valve

1шт.

16

A46561

VALVE

GUIDE - exhaust valve

1шт.

17

A46750

GASKET

- cylinder head

8шт.

18

A48550

COVER

- side head

8шт.

19

A46778

GASKET

- side cover

8шт.

20

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

16шт.

21

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

16шт.

25

A48559

OIL SEAL

RING - valve actuator seal

16шт.

26

A48672

RING

- bracket screw seal

16шт.

27

A48673

RING

- screw seal

8шт.

28

A48674

OIL SEAL

RING - screw seal

24шт.

30

A46736

SCREW,Hex, M16 x 160mm

BOLT - hex, M16 x 160 mm

48шт.

31

A45763

WASHER

- retaining bolt

48шт.
