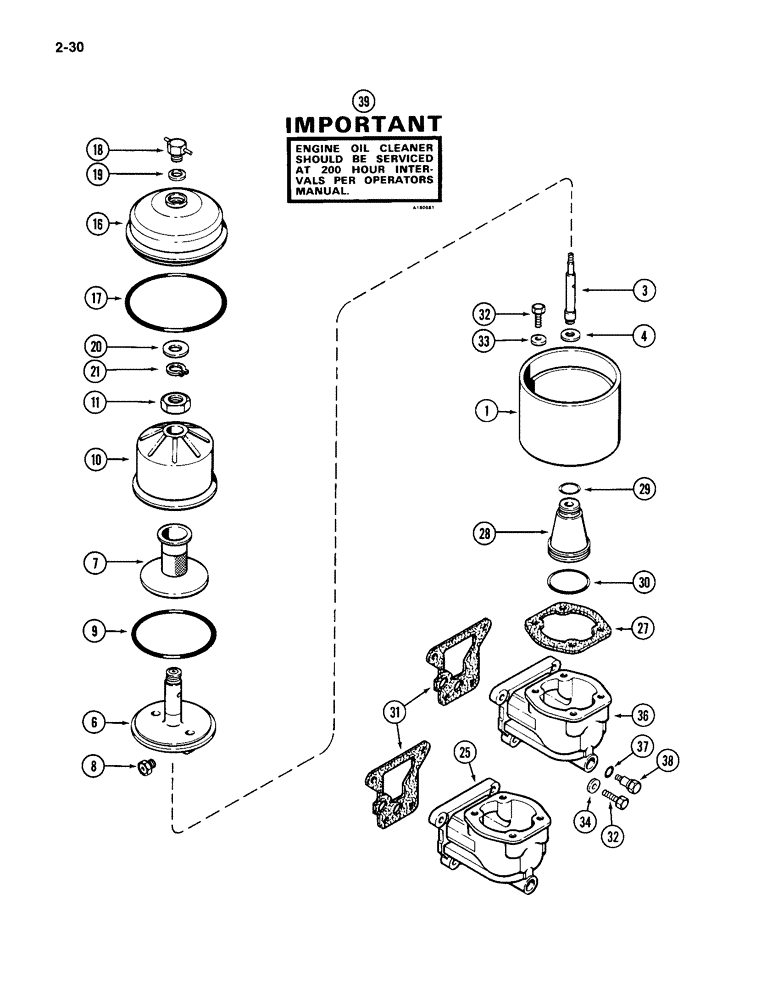

Запчасти Case IH 4994 (2-30) - OIL CLEANER, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A48626
CLEANER
ASSEMBLY - oil, Includes: Ref. 1 - 21
1шт.
1
A45975
HOUSING
- oil cleaner
1шт.
3
A45978
SPINDLE
- oil cleaner
1шт.
4
A45993
WASHER
- spindle
1шт.
A48511
ROTOR
ASSEMBLY - oil cleaner, Includes: Ref. 2 - 21
1шт.
6
A48512
IMPELLER
ROTOR - oil cleaner
1шт.
7
A48513
FILTER
- oil strainer
1шт.
8
A48516
PLUG
NOZZLE - oil cleaner
2шт.
Part of Oil Cleaner Gasket Kit, P/N A70263
1шт.
10
A48514
COVER
- rotor
1шт.
11
A48574
NUT
- cover retaining
1шт.
16
A48627
COVER
- oil cleaner
1шт.
17
A45992
O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro
- cover
1шт.
Part of Oil Cleaner Gasket Kit, P/N A70263
1шт.
18
A48504
NUT
ASSEMBLY - lock, Includes: Ref. 19 - 21
1шт.
19
A48503
O-RING
- locking nut
1шт.
Part of Oil Cleaner Gasket Kit, P/N A70263
1шт.
20
A45996
WASHER
- cover
1шт.
21
A45987
RING
- retaining
1шт.
Part of Oil Cleaner Gasket Kit, P/N A70263
1шт.
25
A48493
BRACKET
HOUSING - oil cleaner mounting (Order Ref 36, 37 and 38)
1шт.
A46197
BUSHING
INSERT - threaded (Not shown)
4шт.
27
A45976
GASKET
- cleaner housing
1шт.
Part of Oil Cleaner Gasket Kit, P/N A70263
1шт.
28
A45977
FILTER, ELEMENT
ELEMENT - oil cleaner
1шт.
29
A70916
O-RING,26 mm ID
- element, M26
1шт.
Part of Oil Cleaner Gasket Kit, P/N A70263
1шт.
30
A70919
O-RING,2.362" ID x 2.568" OD
- element, M59
1шт.
Part of Oil Cleaner Gasket Kit, P/N A70263
1шт.
31
A46798
GASKET
- cleaner mounting
1шт.
Part of Oil Cleaner Gasket Kit, P/N A70263
1шт.
32
814-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
8шт.
33
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
4шт.
34
A46517
WASHER
- oil cleaner mounting
4шт.
A70623
GASKET
KIT - oil cleaner, Includes: ref. nos. 9, 17, 19, 21, 29, 30, 31
1шт.
36
A70723
BASE
- mounting, cleaner
1шт.
37
A46177
O-RING,13.3 mm ID x 18.1 mm OD
- plug
1шт.
38
A46411
PLUG
- base
1шт.
39
A180081
DECAL
- important
1шт.
Выбрано товаров: 40
