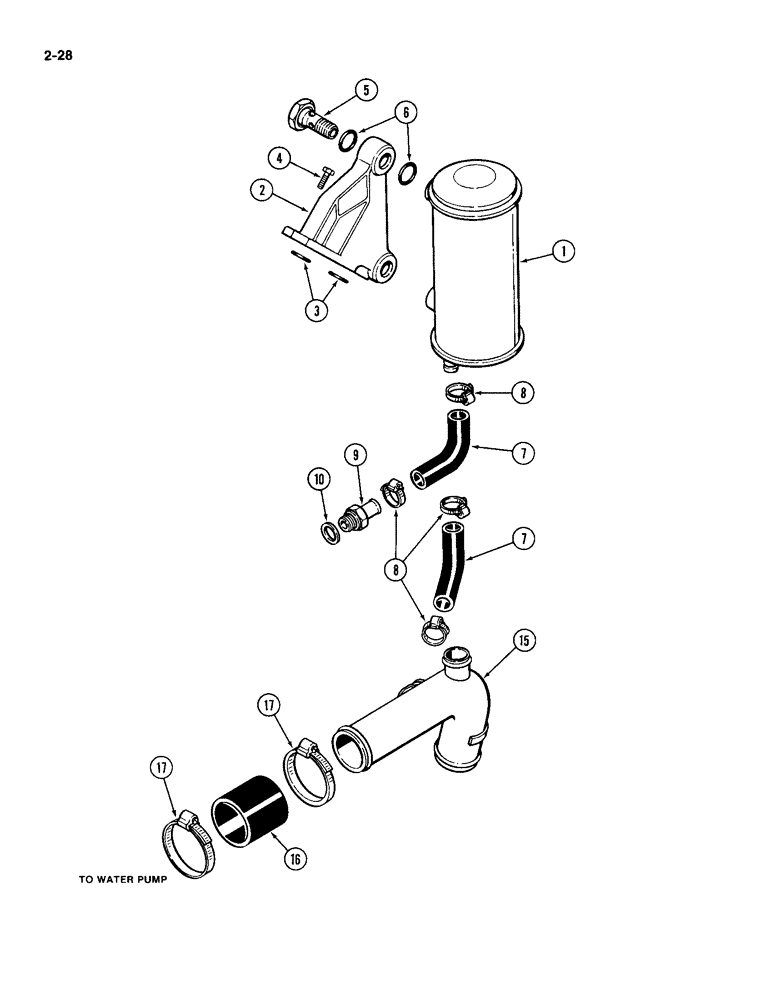

Запчасти Case IH 4994 (2-28) - OIL COOLER, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A70881

COOLER, OIL

COOLER - oil, engine

1шт.

2

A70882

BRACKET

- oil cooler mounting

1шт.

3

A70885

O-RING,22.2 mm ID

- sealing

2шт.

4

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT - hex, M10 x 25 mm

3шт.

5

A70883

BANJO BOLT,M26 x 55mm

BOLT - hex banjo, M26 x 55 mm

2шт.

6

A70884

O-RING,32.2 mm ID

- banjo bolt

4шт.

7

A70836

HOSE

- oil cooler

2шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose retaining

4шт.

9

A48592

NIPPLE, LUBE

NIPPLE - hose

1шт.

10

A46695

GASKET

- copper sealing

1шт.

15

A48634

TUBE ASSY.

TUBE - suction inlet

1шт.

16

A46849

HOSE,63.50 mm ID x 80.00 mm

- water pump to oil cooler 63.50 mm ID x 80.00 mm

1шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose retaining

2шт.
