(2-26) - TURBOCHARGER, 866 CUBIC INCH DIESEL ENGINE

Запчасти Case IH 4994 (2-26) - TURBOCHARGER, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

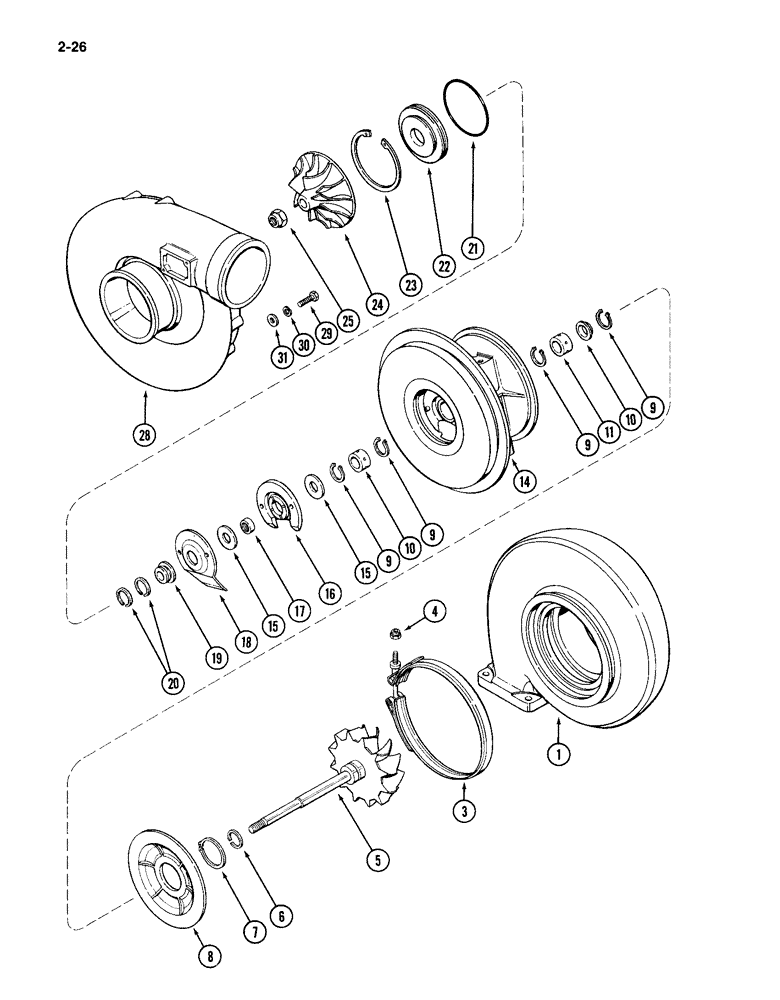

Схема запчастей Case IH 4994 - (2-26) - TURBOCHARGER, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE
9
29
19
25
11
22
1
28
16
31
9
15
9
21
18
10
6
10
30
8
17
5
23
24
3
4
9
15
20
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A48561

TURBOCHARGER

ASSEMBLY - engine, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - retaining

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - lock, clamp

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - turbine

1шт.

6

A70621

RING

- seal

1шт.

7

A70616

RING

- retaining snap

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - turbine back

1шт.

9

A70615

RING

- retaining snap

4шт.

10

A70620

SLEEVE

- oil control

1шт.

11

A70619

BEARING

- turbocharger

2шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

15

NSS

NOT SOLD SEPARAT

RING - thrust

2шт.

16

A70622

PLATE

- thrust

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - thrust plate

1шт.

18

NSS

NOT SOLD SEPARAT

DEFLECTOR - oil

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE - spacer

1шт.

20

A70617

RING

- seal

2шт.

21

A70618

O-RING

- deflector

1шт.

22

NSS

NOT SOLD SEPARAT

INSERT - deflector

1шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

24

NSS

NOT SOLD SEPARAT

WHEEL - compressor

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - lock, wheel

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - retaining

10шт.

30

NSS

NOT SOLD SEPARAT

WASHER - lock

10шт.

31

NSS

NOT SOLD SEPARAT

WASHER - flat

10шт.
