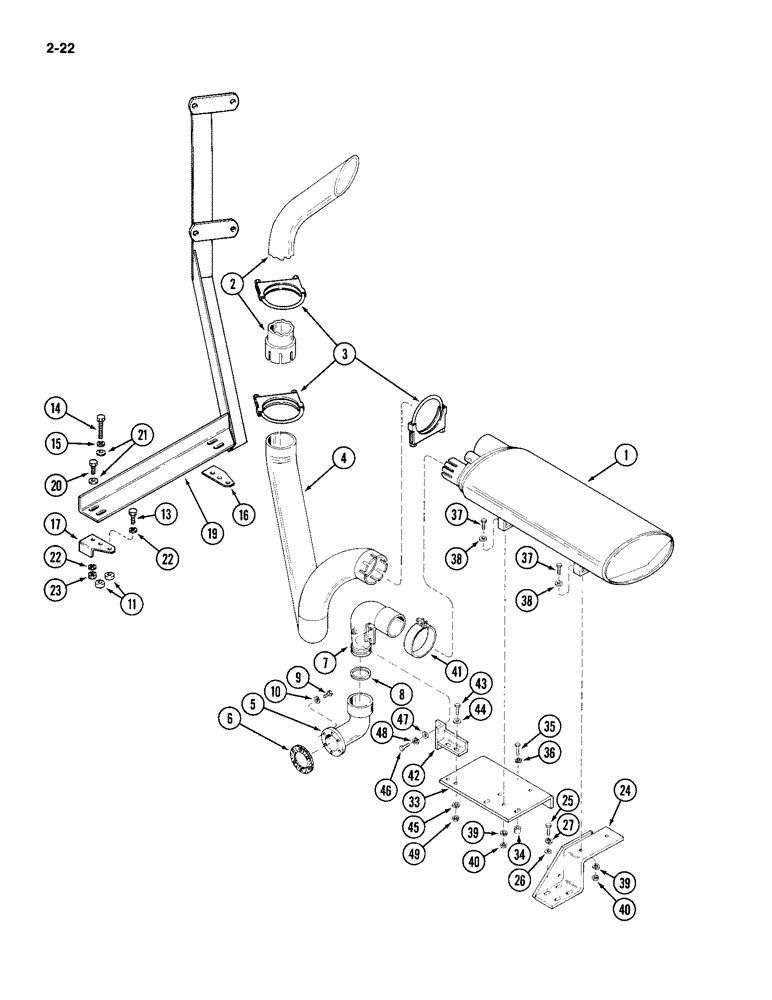

Запчасти Case IH 4994 (2-22) - EXHAUST MANIFOLD, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A169593

MUFFLER

- exhaust

1шт.

2

A165793

MUFFLER

PIPE - exhaust extension

1шт.

3

A163970

CLAMP

- exhaust pipe

3шт.

4

A165784

PIPE

- exhaust

1шт.

5

A166325

ELBOW

- exhaust coupling

1шт.

6

A140856

GASKET

-, Serial Range: elbow-turbocharger

1шт.

7

A166338

JOINT

ELBOW - expansion

1шт.

8

A20732

RING,101.78mm ID x 111.13mm OD x 2.37mm Thk

- compression

1шт.

9

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

SCREW, Hex Soc Hd, M10 x 30, 8.8

6шт.

10

192-407

LOCK WASHER,7/16"

7/16"

6шт.

11

A164923

SPACER

- frame support

4шт.

13

814-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 8.8

2шт.

14

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

2шт.

15

892-1114

LOCK WASHER,M14

WASHER - lock, M14

4шт.

16

A177169

ANGLE

SUPPORT - angle, left hand

1шт.

17

A177170

ANGLE

SUPPORT - angle, right hand

1шт.

19

A167150

SUPPORT

- exhaust pipe

1шт.

20

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

21

195-2052

WASHER,17/32" x 1 1/8" x .180"

- flat, 17/32 x 1-1/4 x 3/16 inch (14 x 32 x 5 mm)

4шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

24

A177463

SUPPORT

- muffler

1шт.

25

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

26

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

27

892-1110

LOCK WASHER,M10

WASHER - lock, M10

4шт.

33

A169559

SUPPORT

- muffler

1шт.

34

A164924

SPACER

- muffler support

3шт.

35

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, M10 x 40 mm

3шт.

36

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal and external lock, 3/8 inch

3шт.

37

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

38

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

41

A162292

SEAL

- muffler

1шт.

42

A166345

BRACKET

- support expansion

1шт.

43

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

44

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

47

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
